Radio Frequency Filters

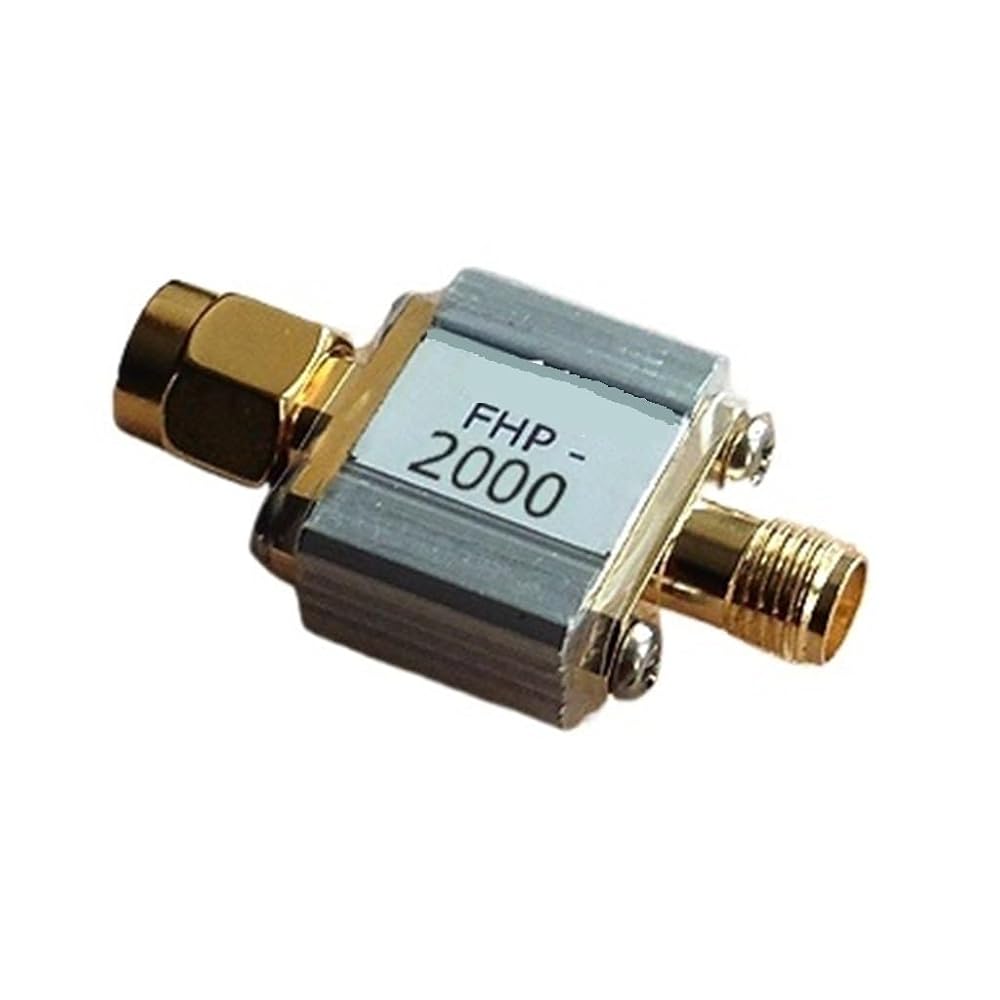

Model: FHP-2000
Impedance: 50 OHms
Stopper insertion loss: >= 30 dB @ DC ~ 1600 MHz
Maximum load power: 20 W (43 dBm)
Interface: SMA-M, SMA-F
Frequency response diagram (blue line is transmission loss, vertical 10dB per division; yellow line is reflection loss, vertical 5dB per division; marker point frequencies are: 2.0GHz, 1400MHz, 2.45GHz):
