1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.
Specification:

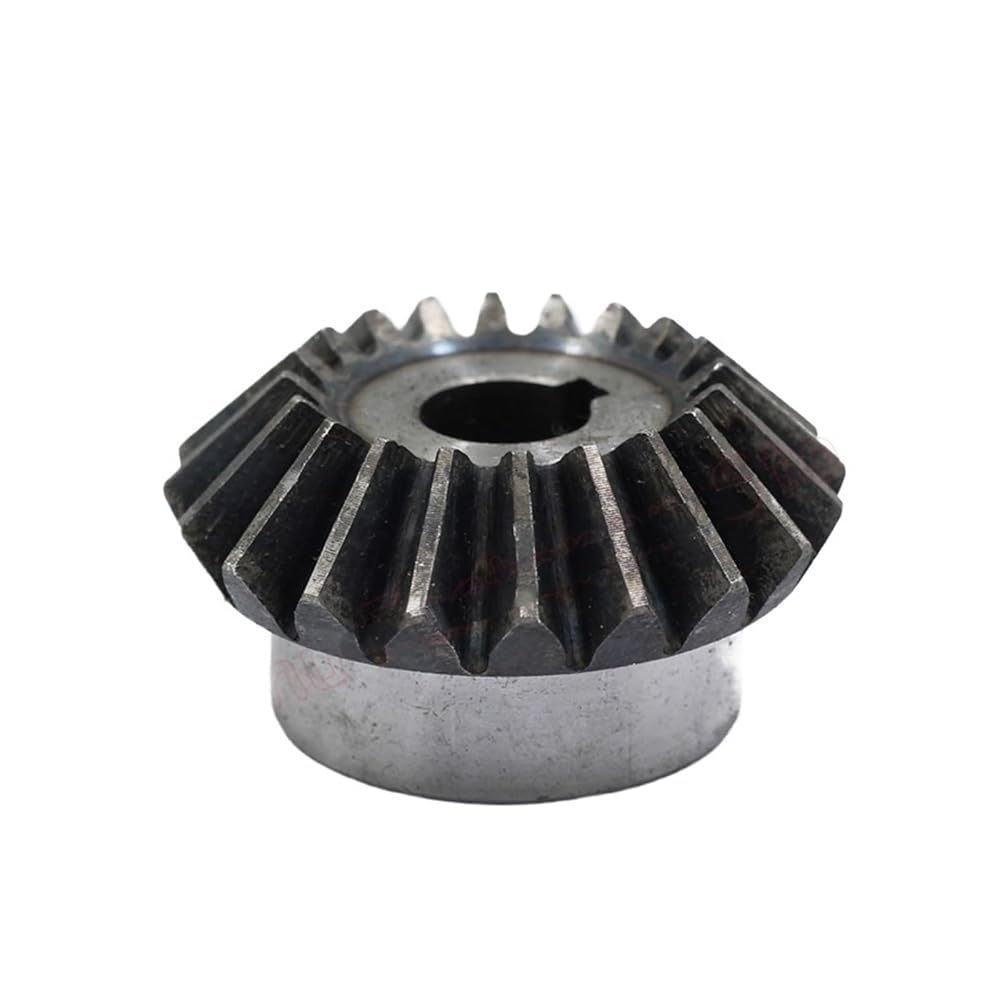

Name: 1:1 Bevel Gear 90 Degrees Meshing Angle
Model: 3.5 Module (3.5M)
Material: 45# Steel
Tooth Surface Treatment: High-frequency Quenching
Rotational Speed Ratio: 1:1
Tooth Angle: 90°
Teeth: 20 Teeth
Keyway Bore:
14mm (keyway 5mm)
15mm (keyway 5mm)
16mm (keyway 5mm)
17mm (keyway 5mm)
18mm (keyway 6mm)
20mm (keyway 6mm)
22mm (keyway 6mm)
24mm (keyway 8mm)
25mm (keyway 8mm)
28mm (keyway 8mm)
30mm (keyway 8mm)
Shaft Hole: Machining Completed
Number of Screw Hole: 2 Screw Holes
