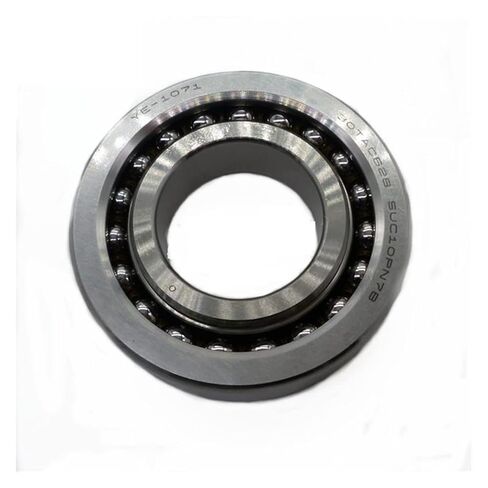

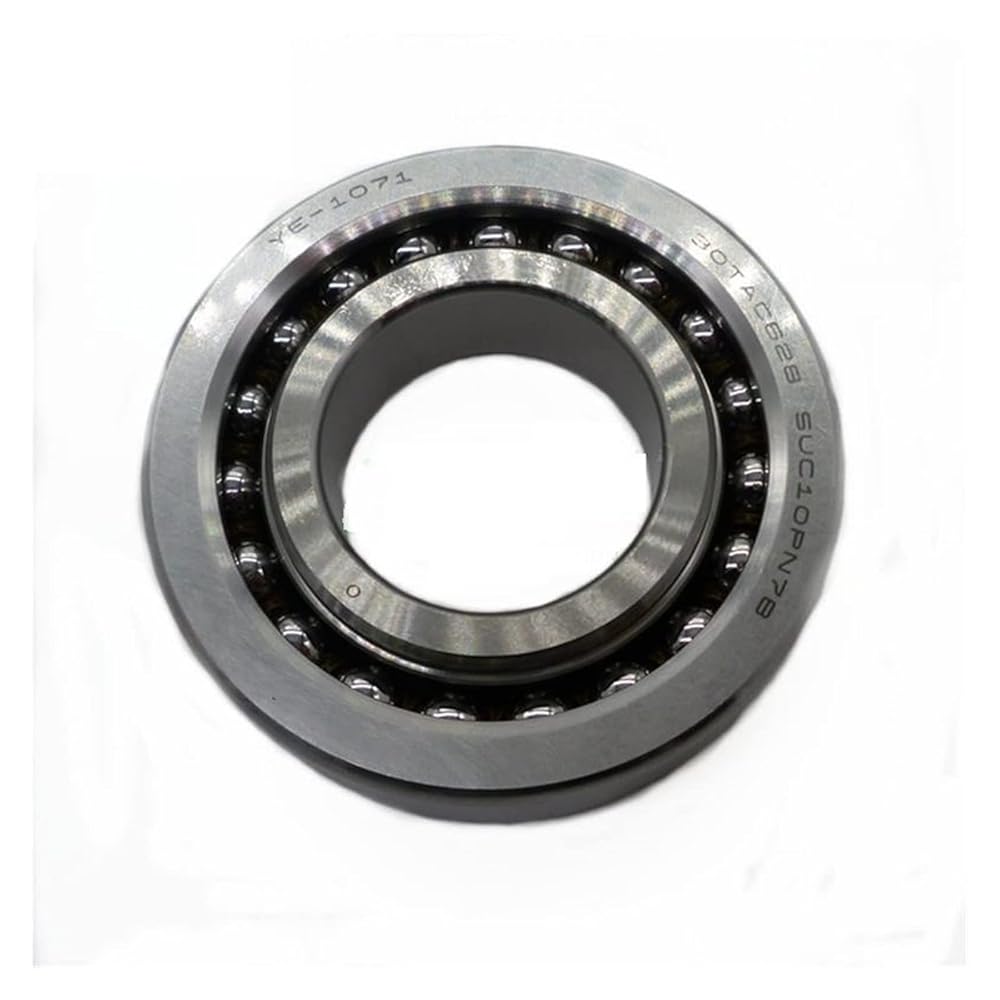

Bearings Leadscrew 17TAC47B 30TAC62B 20TAC47B 25TAC62B 3572 3062 Ball Screw Support Bearing(55tac100bsuc10pn7b) in Kuwait Bearings Leadscrew 17TAC47B 30TAC62B 20TAC47B 25TAC62B 3572 3062 Ball Screw Support Bearing(55tac100bsuc10pn7b) in Kuwait

Bearings Leadscrew 17TAC47B 30TAC62B 20TAC47B 25TAC62B 3572 3062 Ball Screw Support Bearing(15tac47bsuc10pn7b)

KWD 48
Color15tac47bsuc10pn7b
– 1 +

Special Features

  • Pillow Blocks
  • Ball Screw Support Bearings - BS Series
  • The BS series of ball screw support bearings are double row angular contact thrust ball bearings with a 60° contact angle.
  • They are equivalent to two single row bearings in a back-to-back arrangement with a single outer ring. Bearings are supplied ready to be mounted.
  • BS-DT Series: The matched DT pairs are essentially the same as the individual bearings.
  • The two individual bearings have been matched together in the paired version. Both bearings have a V-shaped mark on the outer diameter to ensure that they are arranged correctly.

Description

Pillow Blocks
This type bearing ball screw support bearing as following:
15TAC47BSUC10PN7B: d(mm) 15 D(mm)47 B(mm)15
17TAC47BSUC10PN7B: d(mm) 17 D(mm)47 B(mm)15
20TAC47BSUC10PN7B: d(mm) 20 D(mm)47 B(mm)15
25TAC62BSUC10PN7B: d(mm) 25 D(mm)62 B(mm)15
30TAC62BSUC10PN7B: d(mm) 30 D(mm)62 B(mm)15
35TAC72BSUC10PN7B: d(mm) 35 D(mm)72 B(mm)15
40TAC72BSUC10PN7B: d(mm) 40 D(mm)72 B(mm)15
40TAC90BSUC10PN7B: d(mm) 40 D(mm)90 B(mm)20
45TAC75BSUC10PN7B: d(mm) 45 D(mm)75 B(mm)15
45TAC100BSUC10PN7B: d(mm) 45 D(mm)100 B(mm)20
50TAC100BSUC10PN7B: d(mm) 50 D(mm)100 B(mm)15
55TAC100BSUC10PN7B: d(mm) 55 D(mm)100 B(mm)20
55TAC120BSUC10PN7B: d(mm) 55 D(mm)120 B(mm)20
60TAC120BSUC10PN7B: d(mm) 60 D(mm)120 B(mm)20
