Radio Frequency Filters

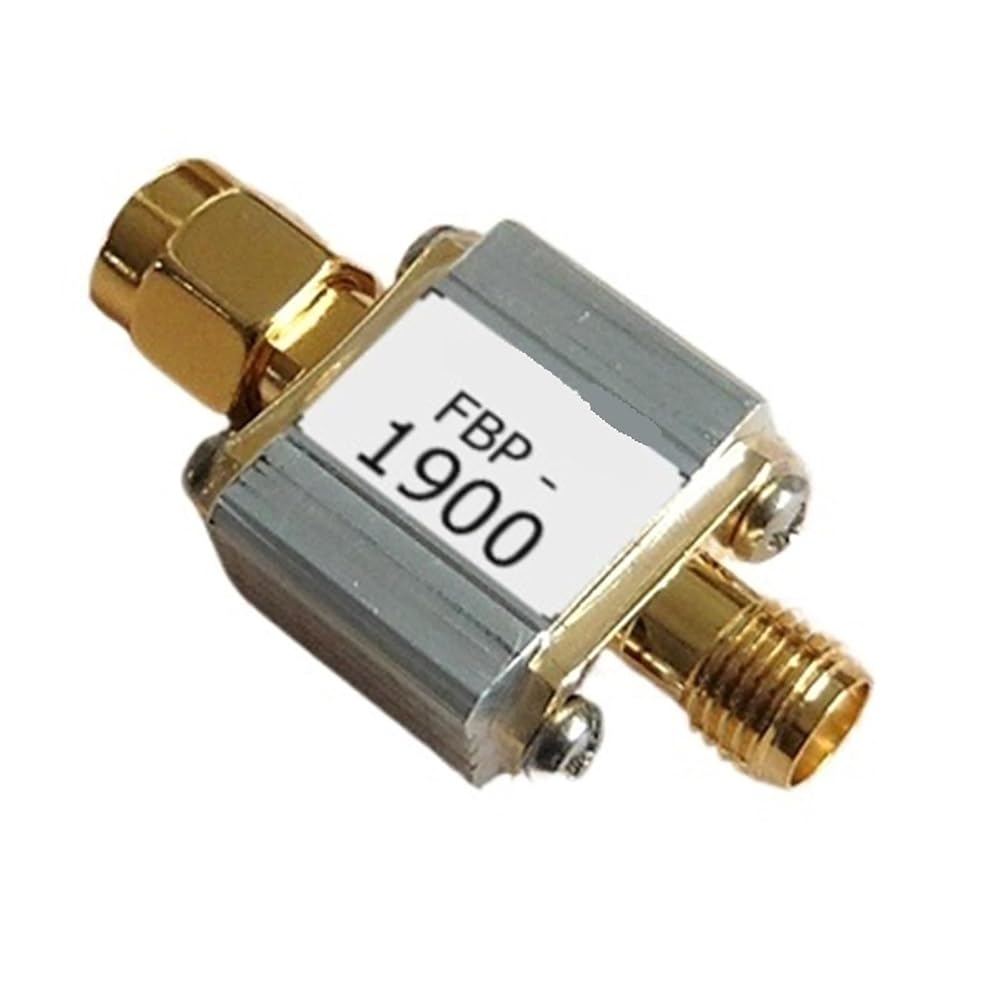

Model: FBP-1900
Impedance: 50 Ohms
Central frequency: 1900 MHz
Passband (3 dB bandwidth): 1800-2000 MHz
Insertion loss: 2.3-2.8 dB@ 1900 MHz
Maximum load capacity: 10 W (40 dBm)
Interface: SMA-M, SMA-F
Frequency Response Map (the blue line in the figure is S21, marked as 3dB bandwidth):
