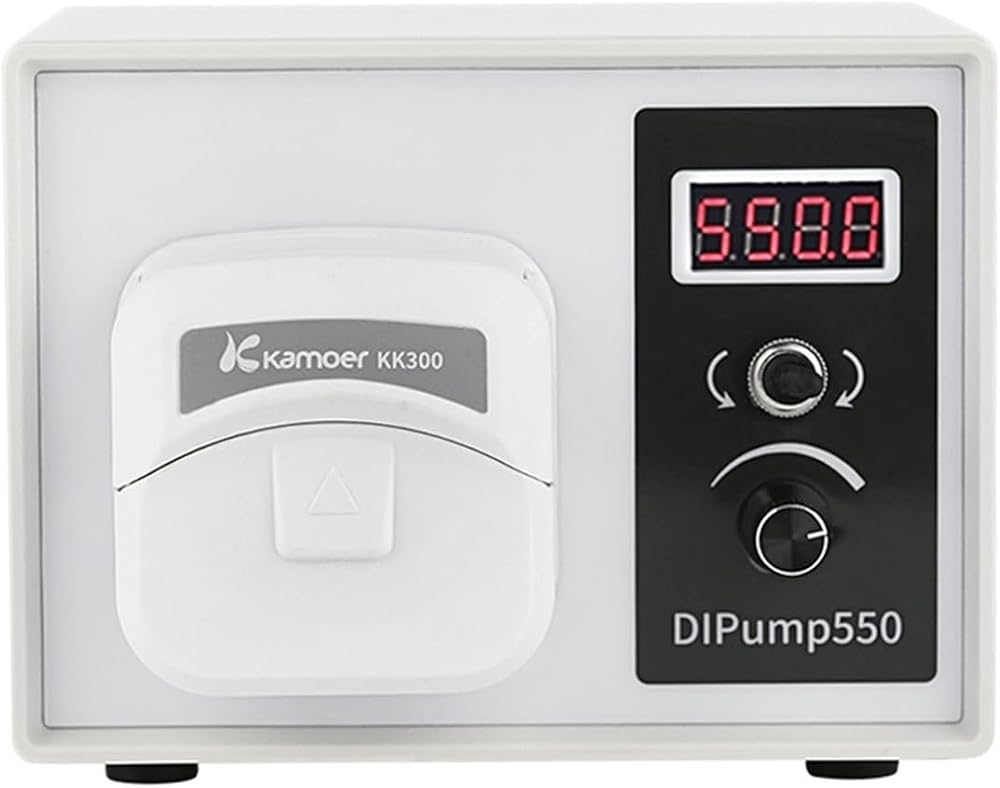

DIP-KK300 4 Rotors 0-300ml/min High Flow
Peristaltic Pump 24V Stepper Motor
Intelligent Adjustable Speed Lab Dosing Pump
Selection Guide
1. Know what liquid do you want to transfer?
(Imported BPT Tubing Chemical stable; Silicone tubing is suitable for Neutral liquid.)
2. What's your bottle volume and how many bottles you want to fill 1 minute?
3. Select the tubing size based on the following chart.
All the data in the chart is tested on the water.
Basic Parameters
Basic Parameters
DIPump-KK300 with Stepper motor
Power supply
DC24V 2A
Flow ml/min
300ml/min
Power(Max)
Weight
About 1.25KG
Noise
65dB(Less than 35dB measured at a distance of 50cm)
Speed range
0.1-400 rpm
Speed adjustment resolution
0.1 rpm
Display mode
LED 4-digit digital tube
Control method
Rotary encoder, foot switch, external analog (4-20mA and 0-5V,0-10V),
485 communication control
Operating mode
Speed Mode and Flow Mode
Way of working
Fully automatic cycle, semi-automatic cycle, manual
Support function
Start and stop, reversing, speed regulation, calibration, suck back, parameter memory, etc.
Tubing Description
Reference flow rate (unit: ml/min)
Tube code
S13
S14
S19
S16
S40
S25
Inner diameter(mm)
XOuter diameter(mm)
0.8×4.0
1.6×4.8
2.4×5.6
3.2×6.4
4.0×7.2
4.8×8.0
Max Flow rate
14
46
104
177
262
313
Tube code
B13
B14
B19
B16
/ /
Inner diameter(mm)
XOuter diameter(mm)
0.8×4.0
1.6×4.8
2.4×5.6
3.2×6.4
/ /
Max Flow rate
14
57
117
198
/ /
Flow graph-Silicone
The vertical coordinate is: Flow rate(ml/min)
The abscissa is: Rotating speed(RPM)
Flow graph-BPT
The vertical coordinate is: Flow rate(ml/min)
The abscissa is: Rotating speed(RPM)
Various Applications
# Canned liquid
# Laboratory
# Food industry
#
LED Display: Rotating speed(real time)
Forward and Reverse: CW/CCW
Rotary encoder: Adjust the speed and setting the parameters
KK300: Quickly to replace the tubing
With stepper motor-6000H lifetime
Waterproof power interface
Foot switch with GX16-9
The foot switch is used to replace the start/stop button. In a suitable interface, step on the foot switch to control the start and stop of the pump.
The foot switch is a standard accessory, and the line length is 2 meters.
Size Drawing
150x160x116.2(LxWxH)
Combined control port
Foot 1: leave blank
Foot 2: 485 B
Foot 3: 485 A
Foot 4: foot switch +
Foot 5: Foot switch -
Pin 6: Analog signal 5V-/10V-
Pin 7: Analog signal 5V+/10V+
Pin 8: Analog signal mA-
Pin 9: Analog signal mA+
Foot switch supports active input ( signal)
The foot switch is used to replace the start/stop button. In a suitable interface, step on the foot switch to control the start and stop of the pump.
