Model Numbers
6AG1341-1AH02-7AE0
6AG1341-1CH02-7AE0
6AG1341-1AH02-7AE0

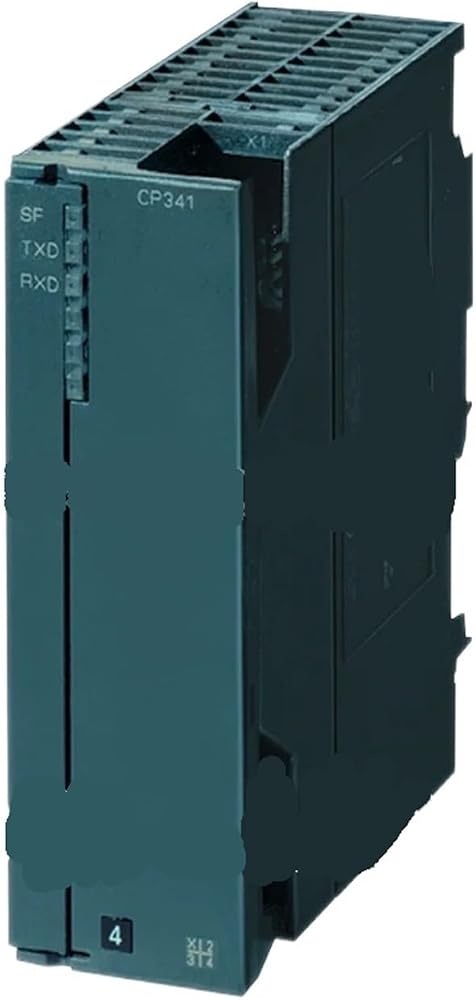

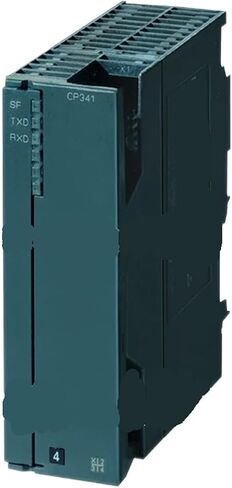

S7-300 CP 341 based on 6ES7341-1AH02-0AE0 with conformal coating, -25+70 °C, communications processor with RS-232C interface (RS-232-C) incl. configuration package on ROM
6AG1341-1CH02-7AE0
S7-300 CP 341 RS-422/485 based on 6ES7341-1CH02-0AE0 with conformal coating, -25+70 °C,
Overview
Overview
For fast, high-performance serial data exchange via point-to-point coupling
Two versions with different physical transmission characteristics:
RS 232C (V.24),
RS 422/RS 485 (X.27)
Implemented protocols: ASCII, 3964 (R), RK 512, customized protocols (can be reloaded)
Simple parameter assignment using tool integrated in STEP 7
Design
The communications module has the following features:
Rugged plastic enclosure
LEDs, for display of "Transmit", "Receive" and "Fault"
Communication interface
This is available in three versions for the following transmission systems:
RS 232C (V.24)
RS 422/RS 485 (X.27).
Drivers
Various loadable drivers are available for the CP 341:
Modbus:
for communication according to the Modbus protocol with RTU format:
Modbus master:
master/slave communication with S7 as master.
Modbus slave:
master/slave communication with S7 as slave, frame traffic from slave to slave not possible.
Model Number : 6AG1341-1AH02-7AE0/6AG1341-1CH02-7AE0
