[PRECISION ENGINEERED FOR ACCURACY] Our Z Linear Stage delivers exceptional precision with its finely calibrated feed screw mechanism and dovetail guide system. The micrometer knob allows for 0.5mm incremental movements with repeatable accuracy within 30μm, making it for applications requiring exact positioning. The smooth operation ensures vibration-free performance even under maximum load capacity.
[INDUSTRIAL-GRADE ALUMINUM CONSTRUCTION] Crafted from premium black anodized aluminum alloy, this stage combines lightweight durability with exceptional strength. The-finish withstands harsh laboratory environments while maintaining precise tolerances. The construction prevents flexing under load, withstanding up to 19.5N force depending on model size.

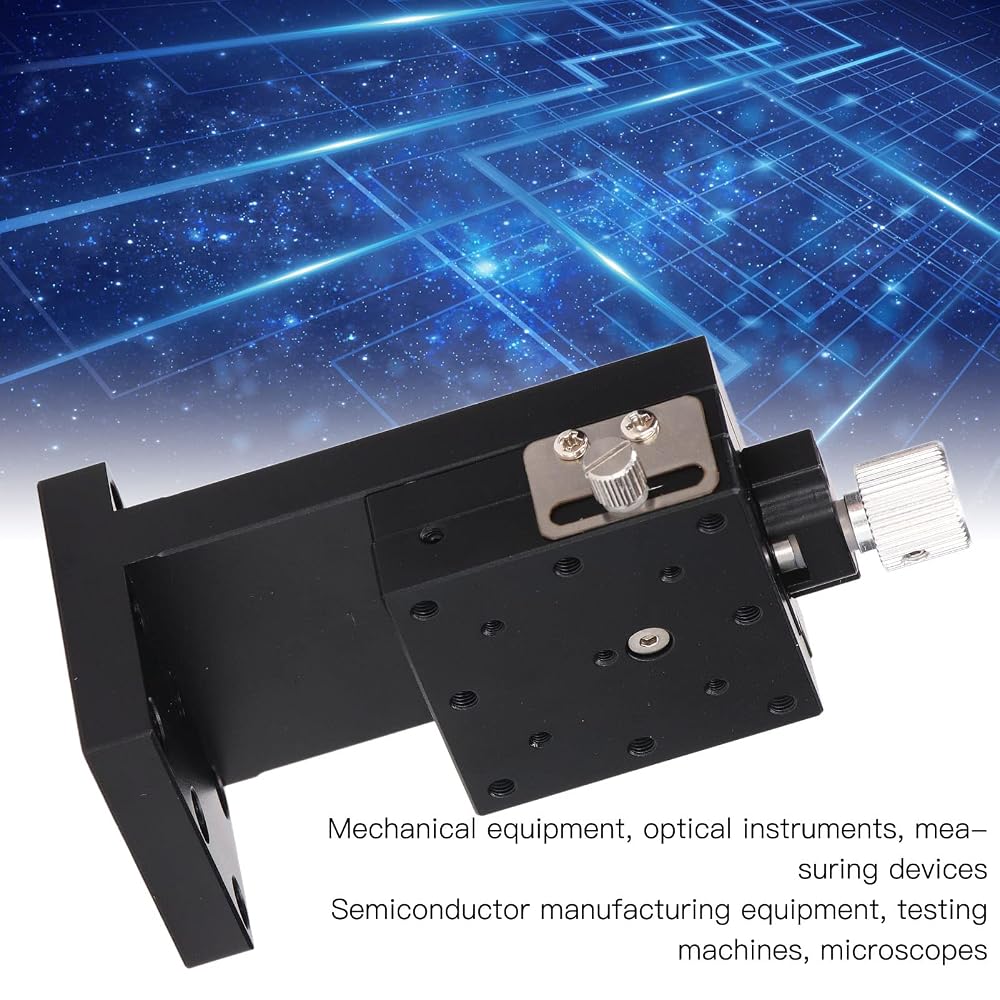

[VERSATILE LABORATORY APPLICATIONS] Designed for professional use in multiple fields including optical alignment, semiconductor fabrication, microscopy sample positioning, and mechanical testing. The stable platform works with optical instruments, measuring devices, and processing machines. Three size options (25mm/40mm/60mm) accommodate various workspace requirements.
[ENHANCED STABILITY FEATURES] Engineered with a low-profile design that minimizes center of gravity for optimal stability. The precision-ground sliding surfaces and anti-backlash nut ensure smooth, wobble-free movement. Integrated mounting holes allow secure attachment to workbenches or equipment frames for vibration-free operation.
[USER-CENTRIC DESIGN ELEMENTS] Features clear millimeter scales for visual positioning reference and knurled knob surfaces for positive grip. The compact footprint saves valuable bench space while providing generous travel range. Includes all necessary hardware for immediate setup and operation in your laboratory or workshop.
وصف

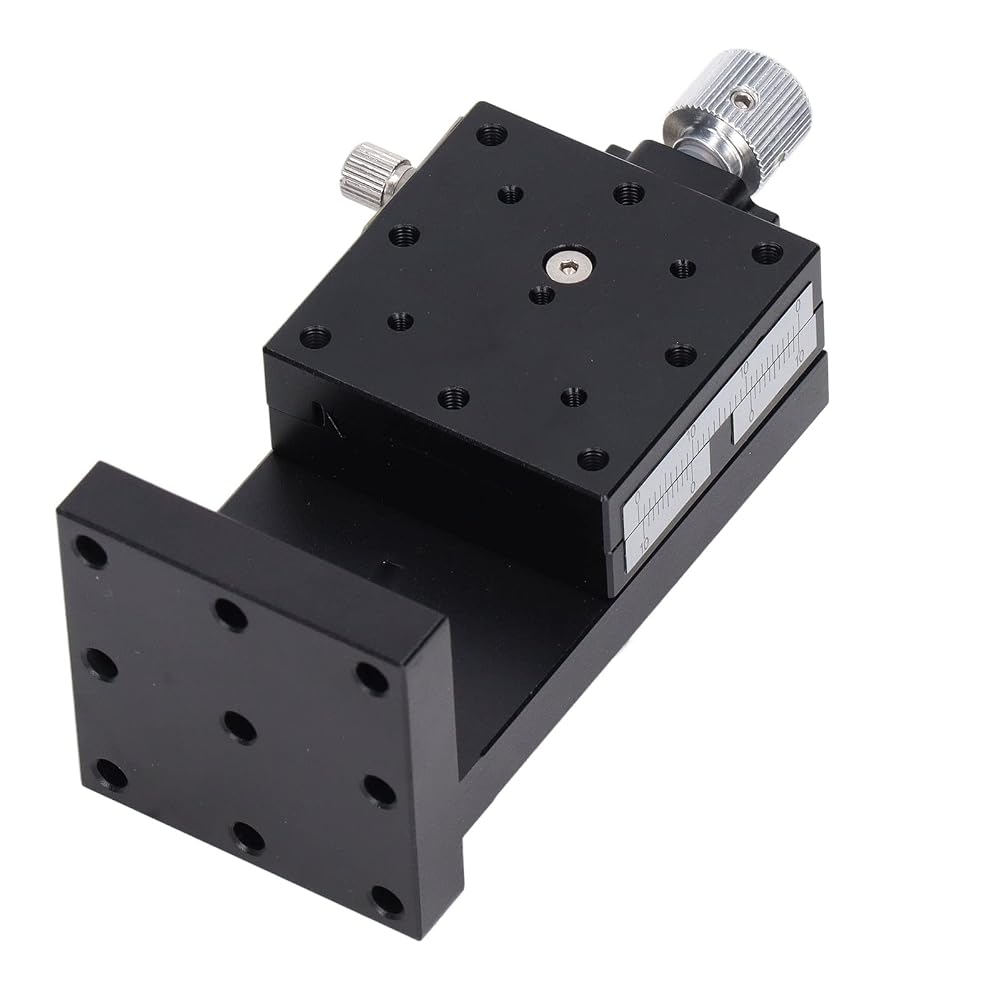

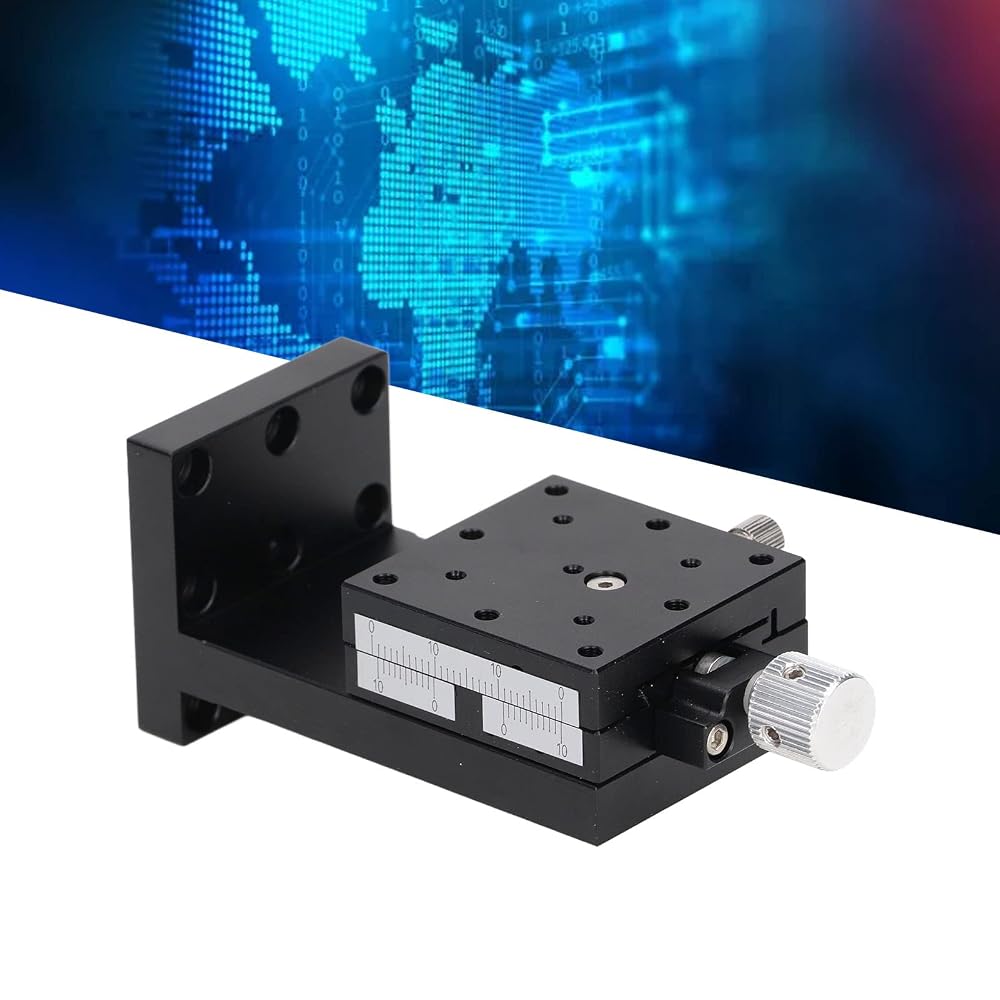

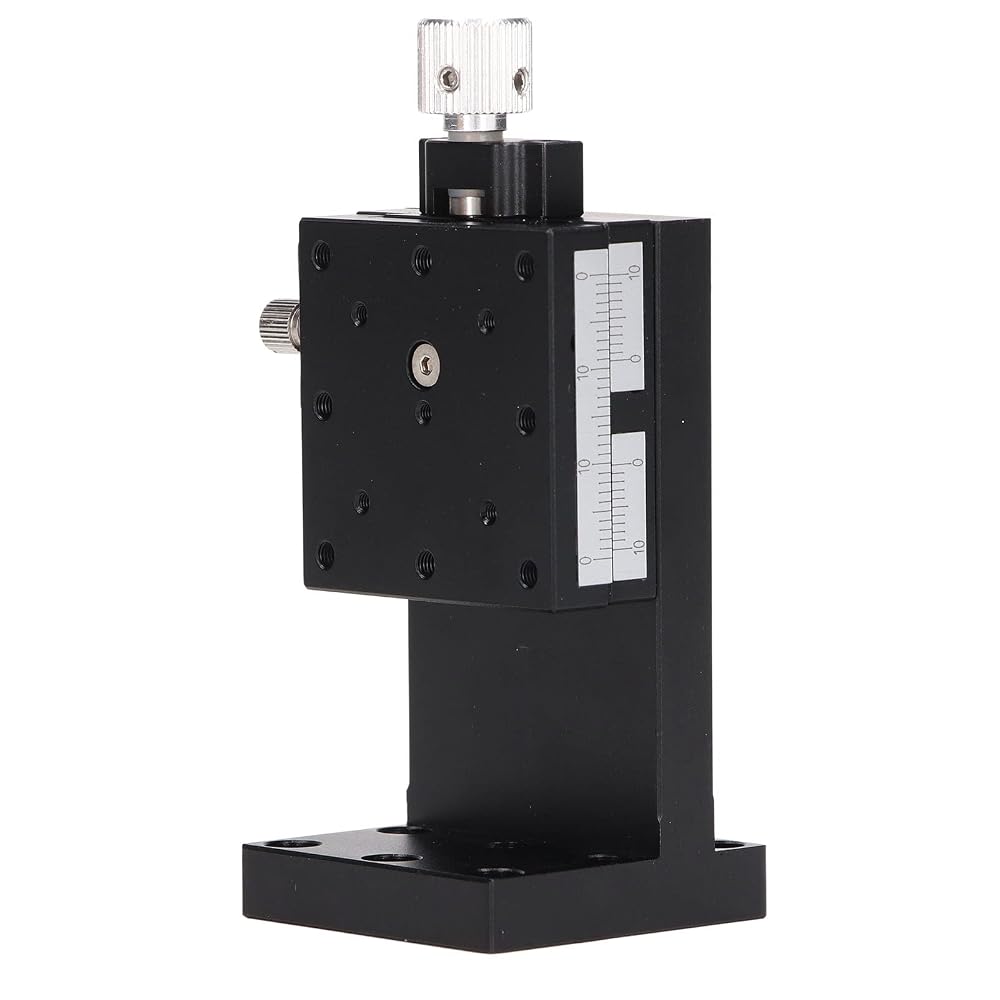

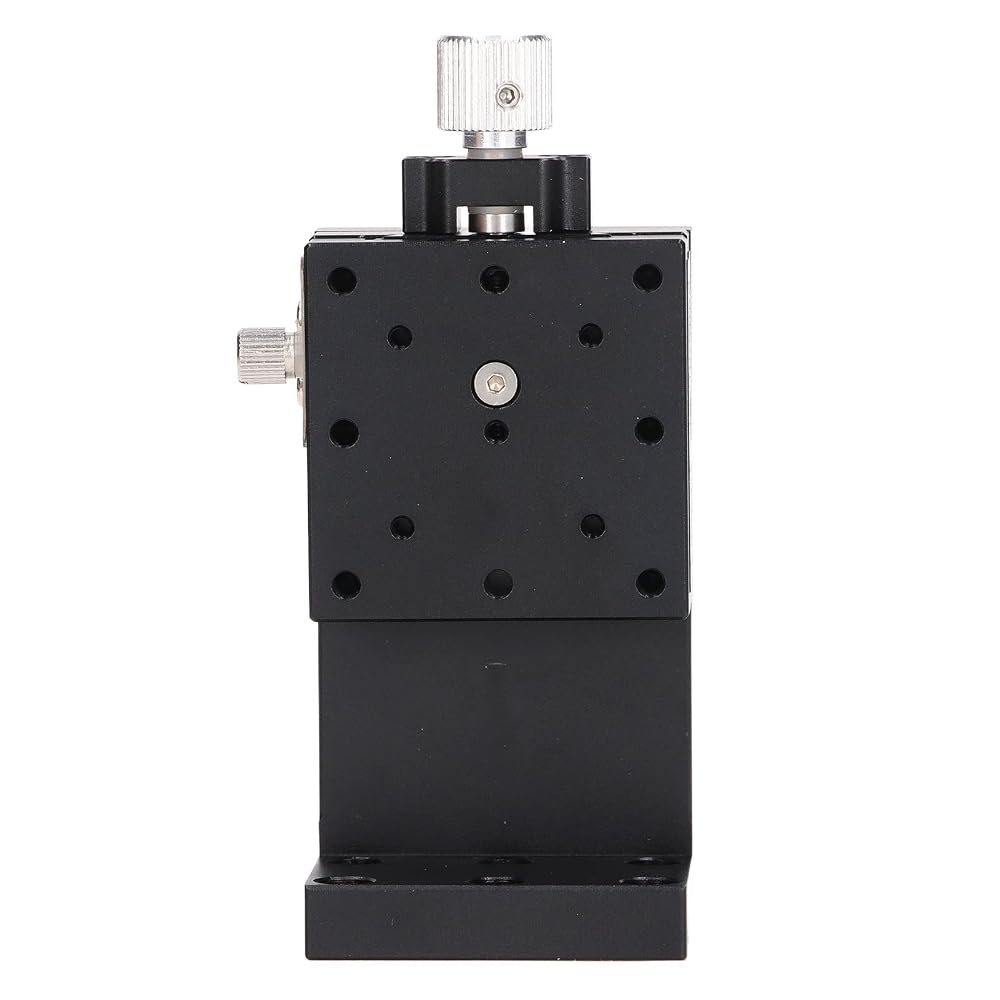

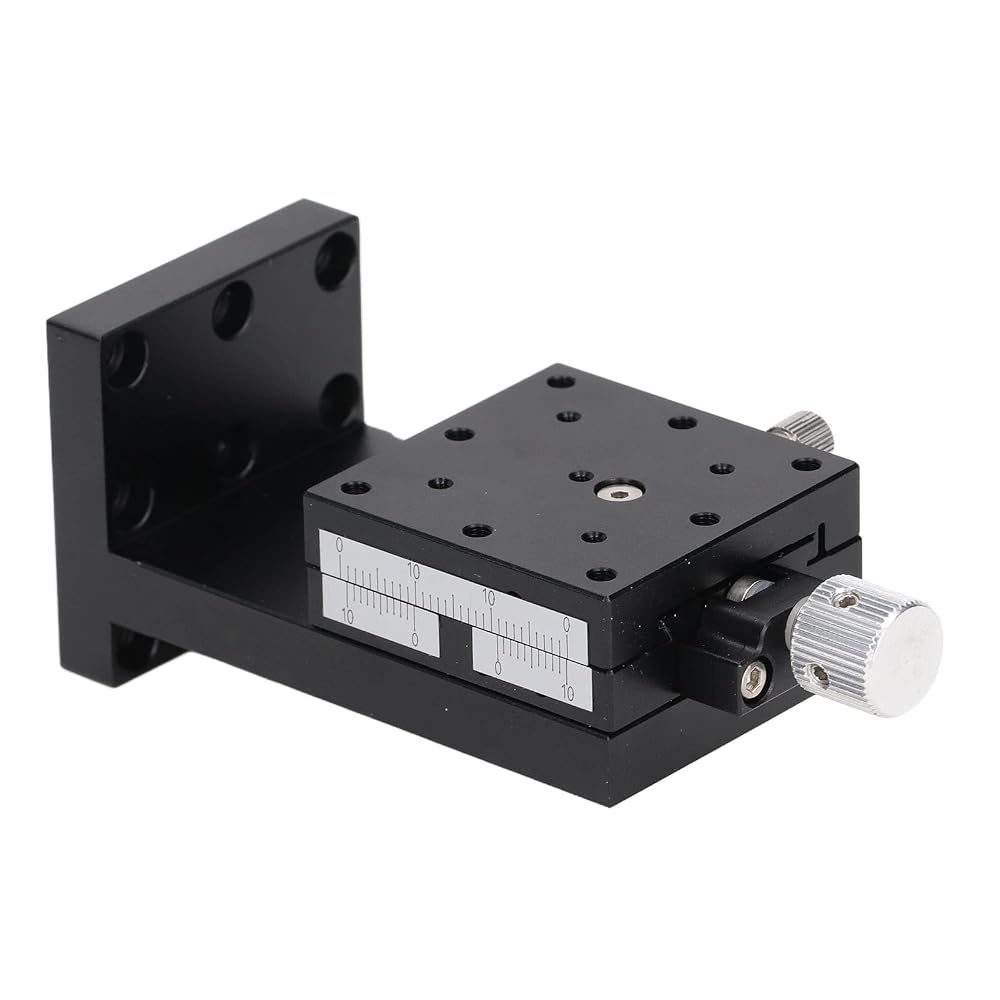

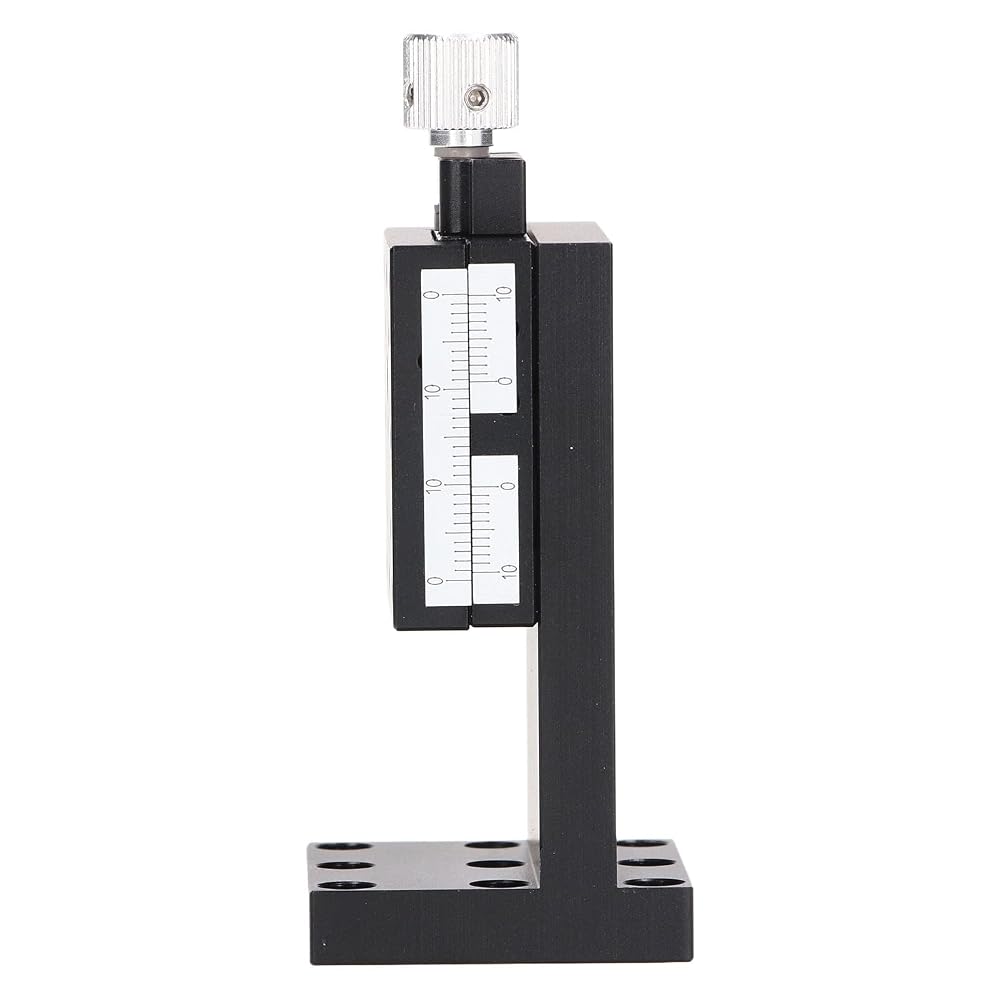

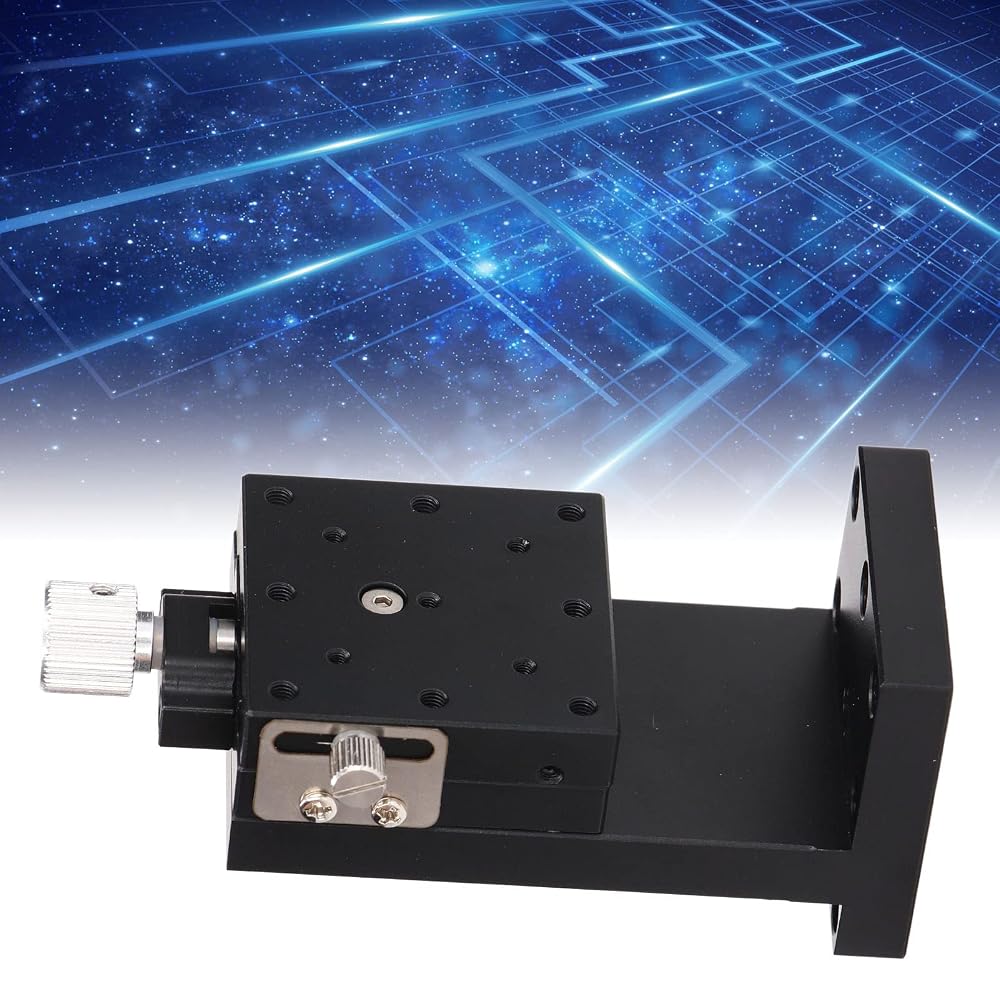

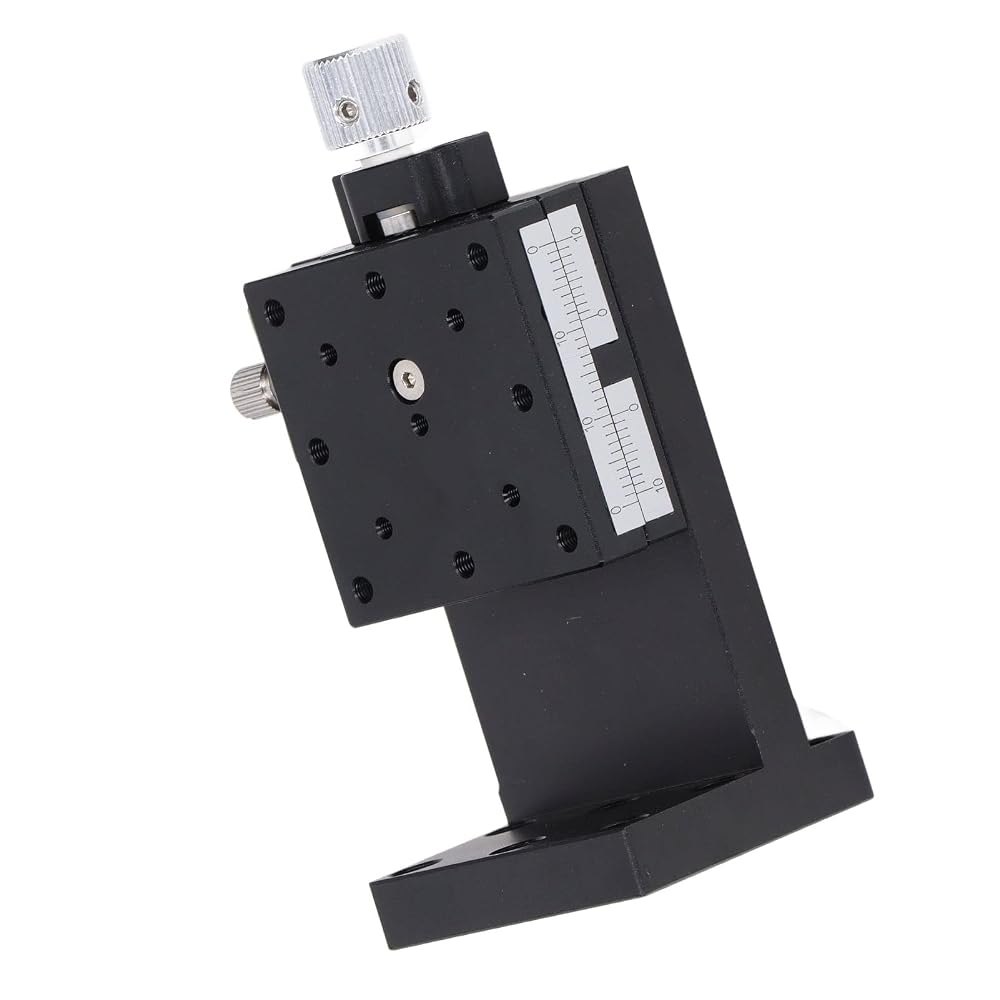

Item Type: Z Linear Stage
Body Material: Aluminum alloy(black anodized)
Model Sliding Table Size Movement Amount 1 Turn Knob Movement Amount Load Resistance Allowable Moment Load (N·M) Movement Accuracy
EG-Z25 25 x 25mm / 0.98 x 0.98in ±5 0.5mm 9.8N Swing Up And Down: 2.0 30μm
Swing Left And Right: 1.5
Side Scrolling: 1.3
EG-Z40 40 x 40mm / 1.57 x 1.57in ±7 0.5mm 9.8N Swing Up And Down: 4.0 30μm
Swing Left And Right: 3.0
Side Scrolling: 3.0
EG-Z60 60 x 60mm / 2.36 x 2.36in ±9 0.5mm 19.5N Swing Up And Down: 5.0 30μm
Swing Left And Right: 4.0
Side Scrolling: 4.0
