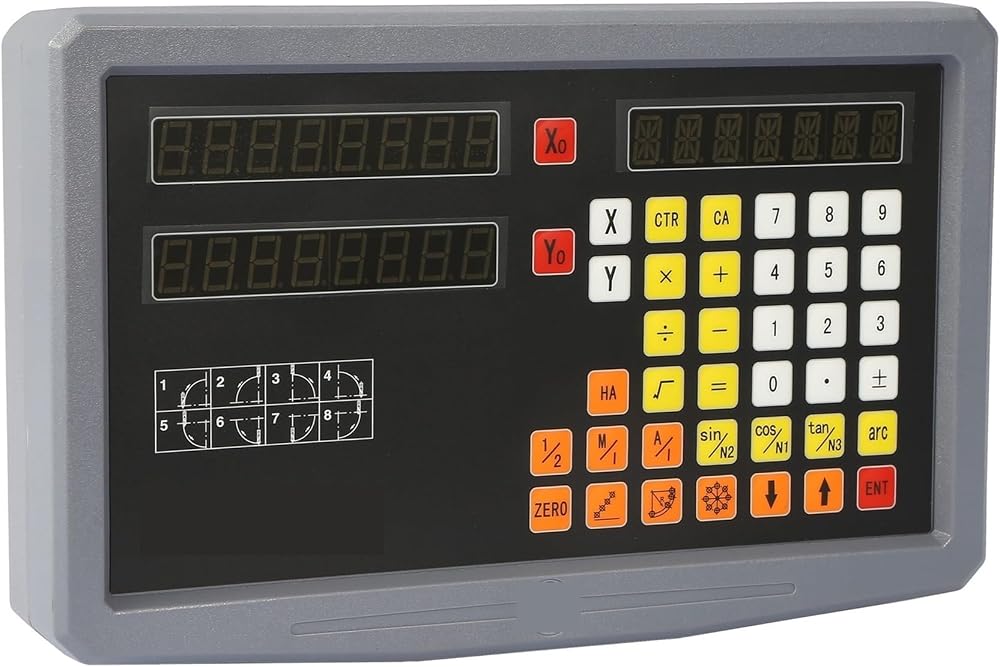

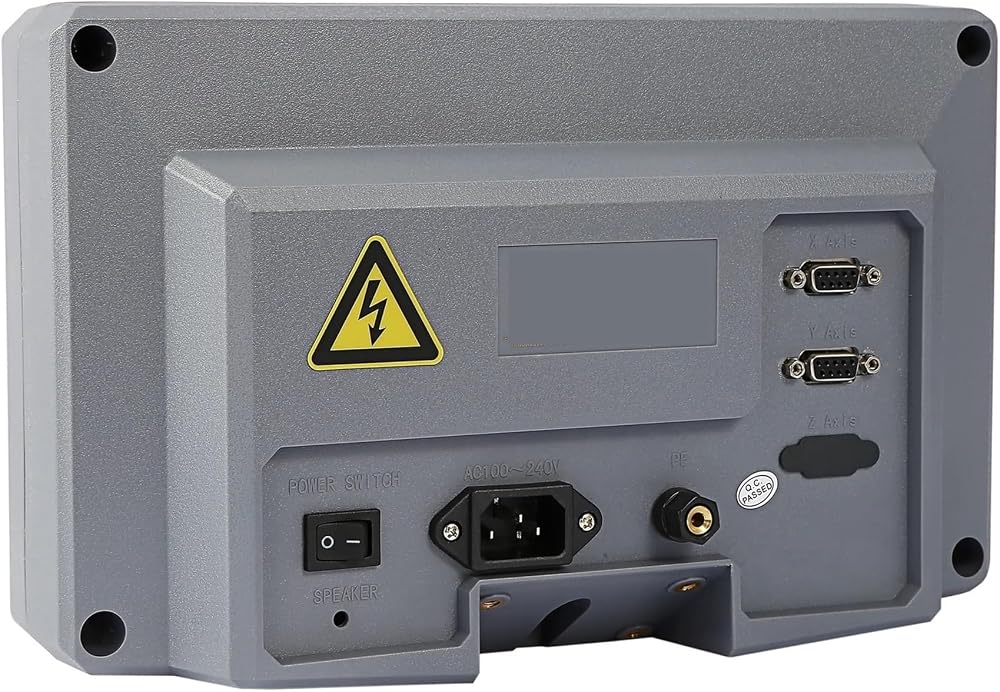

Description
1. The voltage range: AC85V ~ 250V/ 50hz ~ 60hz
2. Power consumption: 25VA
3. Coordinate the number: a coordinates, two coordinates, three coordinates
4. Show that signed seven (two or three axis) output data information using eight meters words show symbols
5. Weight: 2 kg
6. The input signal: TTL
7. Allow the input signal frequency: > 100 KHZ
8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1 micron, 0.5 microns, 0.1 microns
Digital table advantages:
1, professional design, beautiful appearance generous, counts the frequency response is fast and powerful.
2, die-casting alloy shell, the surface electric pensu processing, dustproof wear-resisting, good shielding.
3, professional design, independent power supply, to adapt to the range, high stability, strong anti-jamming capability.
4, power supply and signal anti-interference ability, Excellent quality and longevity panel of buttons, change is simple and convenient.
5, directly on the digital table for functional operation functions such as sine, cosine, tangent function, convenient processing.
6, can be in the X and Y direction for automatic tool compensation
Basic Functions
mm/inch Transformation Absolute/Relative Transformation
Mid-split Function Simple "R" Function
Smooth "R" Function Divide the perimeter of circle
Save 200 workpiece zero points Divide holes on an oblique line
Mathematics calculation Tool diameter compensation
Bevel process Zero location autorest
Lathe R/D function
