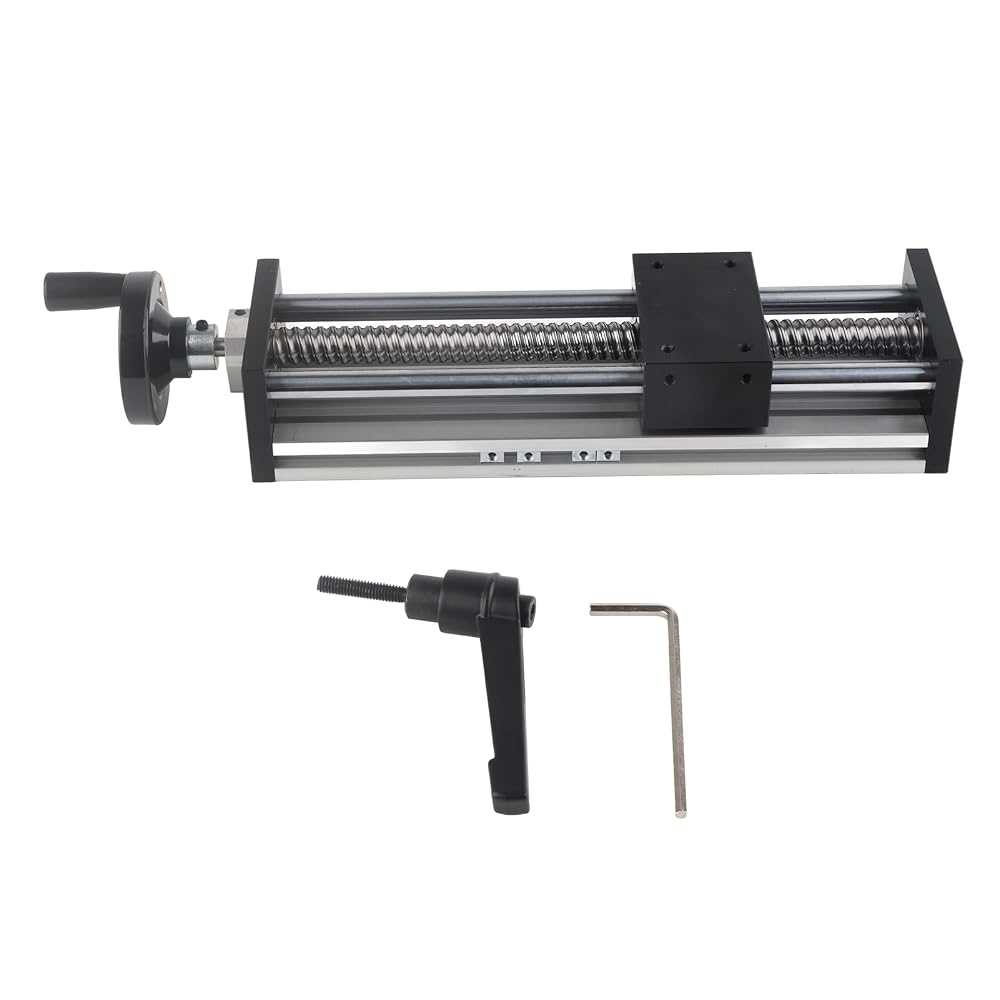

Precision Linear Stage Manual Sliding Table 200mm Stroke Aluminum Alloy CNC Machined Guide Platform with Hand Wheel for Laboratory Industrial Automation Equipment (EBX1610) in Kuwait

Precision Linear Stage Manual Sliding Table 200mm Stroke Aluminum Alloy CNC Machined Guide Platform with Hand Wheel for Laboratory Industrial Automation Equipment (EBX1610)

KWD 41.500
SizeEBX1610
– 1 +

Special Features

  • [HIGH-PRECISION MANUAL CONTROL] Experience exceptional accuracy with our smooth-operating hand wheel that provides precise manual adjustment of the sliding table. The ergonomic design allows for effortless positioning, making it for laboratory measurements, industrial automation, and other applications requiring micron-level adjustments.
  • [STABLE LOCKING SYSTEM] The innovative adjustable handle locking mechanism ensures your workpiece stays securely in place during operation. This robust locking feature prevents any unintended movement, guaranteeing reliable performance for extended periods in demanding work environments.
  • [PREMIUM LINEAR GUIDANCE SYSTEM] Featuring a durable chrome-plated optical hard axis and high-quality linear bearings, this stage delivers ultra-smooth, vibration-free motion. The precision-engineered components minimize friction while maintaining exceptional straightness for consistent, repeatable results.
  • [INDUSTRIAL-GRADE ALUMINUM CONSTRUCTION] Manufactured from aircraft-grade aluminum alloy with CNC precision machining, this sliding table offers outstanding strength-to-weight ratio. The black anodized surface provides resistance and a professional finish that withstands harsh working conditions.
  • [VERSATILE PERFORMANCE CAPABILITIES] With a generous 200mm stroke length and impressive load capacity (20kg horizontal/10kg vertical), this compact yet sturdy stage is ideal for various applications. The lightweight aluminum design combined with high load capacity makes it for optical experiments, automation equipment, and precision machining setups.

Description

Item Type: Slide Linear Stage
Material: Aluminum alloy
Effective Stroke: Approx. 200mm / 7.9in
Screw Diameter: Approx. 16mm / 0.6in
Horizontal Load: 20 kg / 44.1 lb(approx.)
Vertical Load: 10 kg / 22 lb(approx.)
Repeat Positioning Accuracy: 0.03-0.05mm
Working Mode: Hand crank with locking
How to Use:
1. Install the hand wheel and tighten the screws
2. Rotate the hand wheel directly by hand to work
Size: Approx. 20mm / 0.8in
9mm / 0.4in
50mm / 2in
32mm / 1.3in
56mm / 2.2in
80mm / 3.1in
25mm / 1in
15mm / 0.6in
12mm / 0.5in
82mm / 3.2in
60mm / 2.4in
50mm / 2in
30mm / 1.2in

Package List：
1 x Slide Linear Stage
1 x Locking Wrench
1 x Hand Wheel
1 x User Manual

Note:
Please note that the type and old type of this product will be sent, and make sure you will not mind before ordering.
