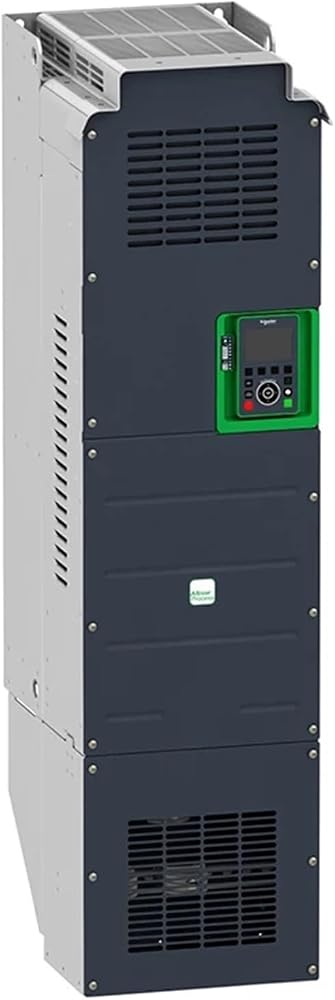

Product Description:
Product series: ATV ATV900
Product application: Industrial use
Product type: Frequency converter
Product application scenarios:
machine
Asynchronous motor
Application area: Process for industrial
Variable:
Unbraked chopper
Standard version
Number of network phases: 3 phases
Installation type: Wall mounted installation
Communication port protocol:
Ethernet Modbus:
Ethernet/IP
Modbus serial
Rated power supply voltage [Us]: 380... 480 V -15... 10%
Motor power (kW):
132.0 kW applicable standard load
110.0 kW suitable for heavy loads
Continuous output current:
250 A applicable standard load at 2.5 kHz on
211 A is suitable for heavy loads at 2.5 kHz on
EMC filter:
Integrated
With EMC mounting plate option
IP protection level: IP21
Protection level: UL type 1
Discrete input logic: 16 preset speeds
Asynchronous motor control configuration file:
Standard variable
Optimize mode
Standard constant
motor control configuration mode:
Permanent magnet motor
reluctance motor
Maximum output frequency: 599 Hz
Switching frequency:
1... 8 kHz adjustable
2.5... 8 kHz available
Rated switching frequency: 2.5 kHz
Line current:
237.0 A on... 380 V (standard load)
201.0 A on... 380 V (heavy load)
213.0 A on... 480 V (standard load)
165.0 A on... 480 V (heavy load)
Apparent power:
161.4 kVA on... 480 V (standard load)
121.8 kVA on... 480 V (heavy load)
Maximum transient current:
300 A at 60 s (standard load)
317 A at 60 s (overload)
Grid frequency: 50... 60 Hz
Expected line Isc: 50 kA
