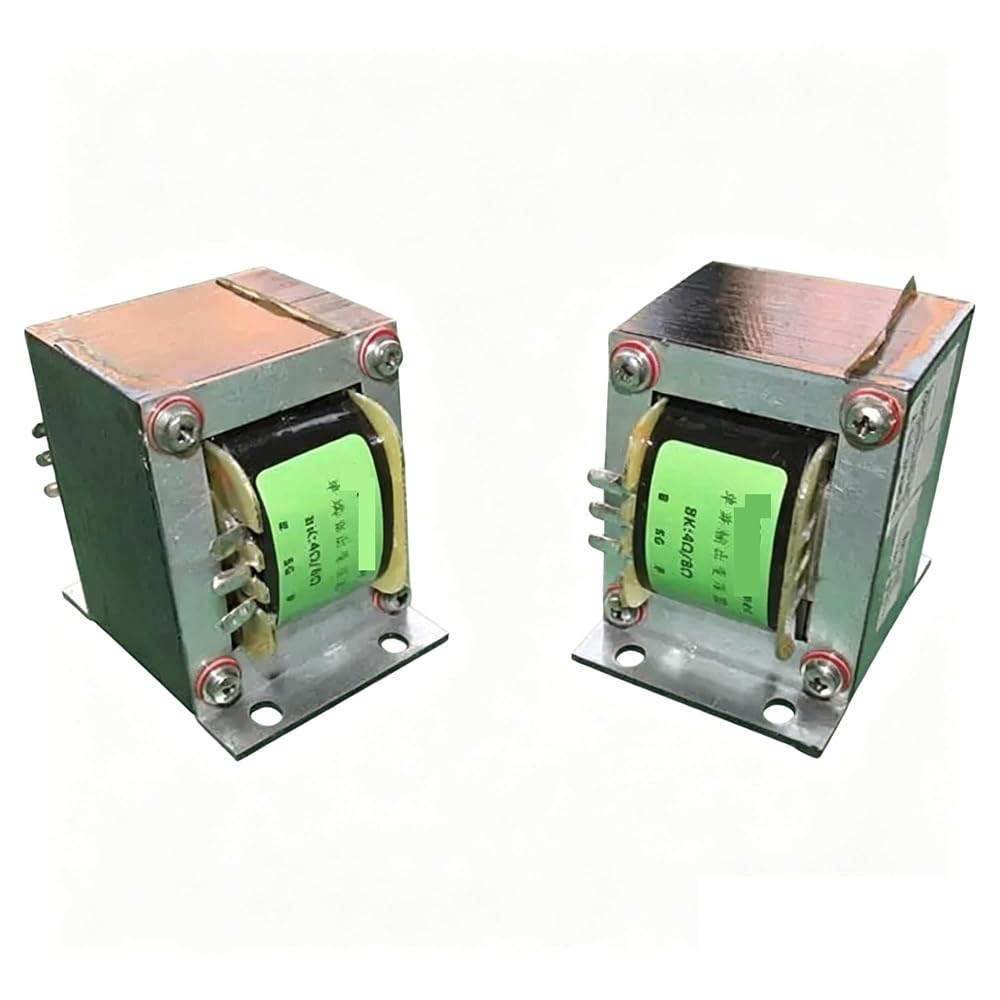

8K :4 8, 8K :16, 8K :32, 8K :300, 8K :600 single-ended 5W output transformer for electronic tubes, EI54X35mm specification Z11 core, PCB board skeleton L-pin iron fixing, suitable for 5686, 6P1, 6P14, 6P14, Used for electronic tubes such as 6P6P, 6C16, 6BQ5, EL84, 6V6.
Transformer introduction: Z11 material iron core, size EI54X45mm stack thickness 35mm, small iron core large inductor, oxygen-free copper paint copper enameled wire winding, PCB skeleton, fixed without embroidered steel gong bolts, primary five-clip four-winding process, transformer Specifications and parameters are marked on it, and the broadband response effect is outstanding.
Tested parameters:
Impedance: 8K: 4 ohms 8 ohms
Power: 4W
Primary resistance: 645 ohms
Secondary resistance: 1 ohm (8 terminal measurement)
Primary inductor: 23H 100HZ test
Secondary inductance: 32mH 100HZ test
Leakage inductance: 18mH 1KHz test
Distribution capacitance: 930PF 20Khz test
Primary overDC: 30mA
Working voltage withstand: 1000V
Volume: 56X61X50mm height
Weight: 1.2KG/pair
Frequency response: 15HZ-34KHZ-0.5BD, 46KHZ-1DB
Transformer vertical fixing method:
Transformer horizontal fixing method:
==========
High-concerned chemical : None
Origin : Mainland China
Use : AUDIO
