مميزات خاصة

This transformer simplifying assembly while maintaining stable inductance for signal
Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

وصف

Note: When testing the machine, the output transformer must be connected to a horn or resistor as a load. No-load testing can easily burn the transformer.

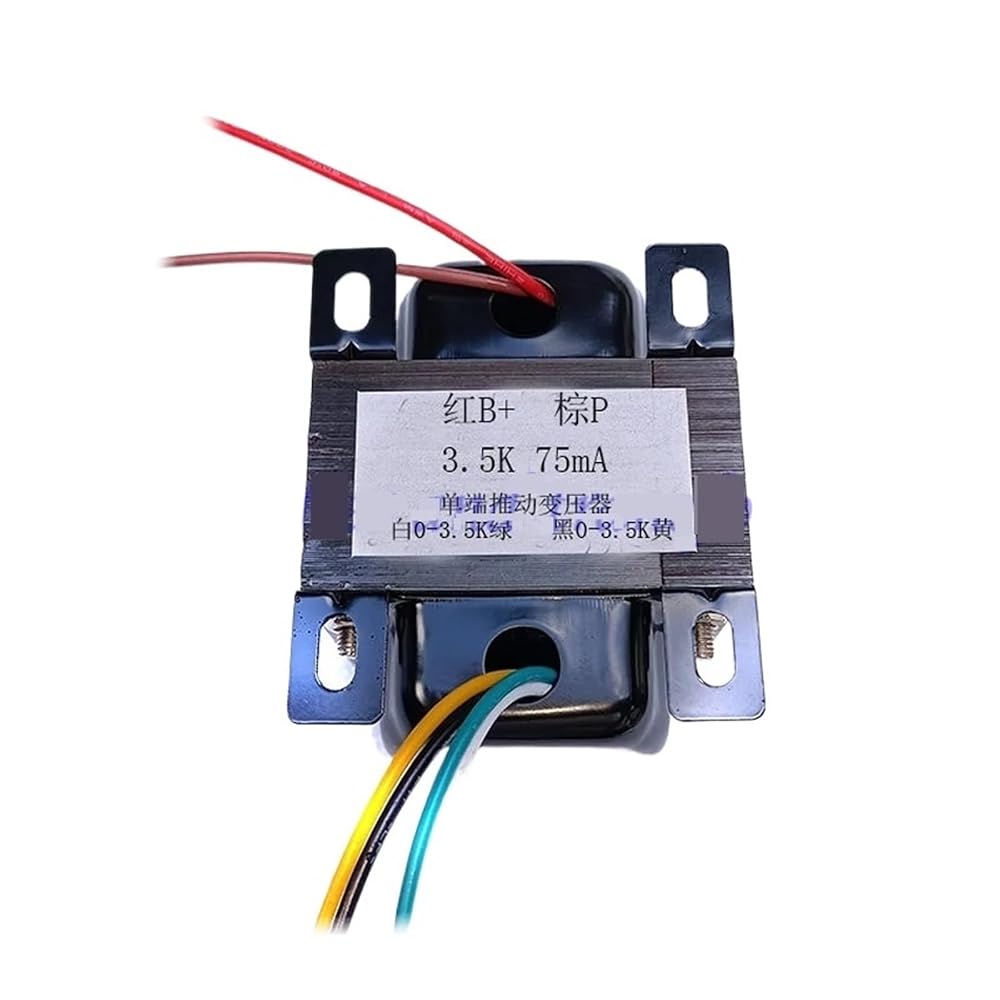

7W amplifier single-ended drive transformer EI76*35; 3.5K: 3.5K+3.5K, the maximum primary current is 65MA
Iron core size: tongue width 25.4MM*35MM stack thickness
Winding method: 3 clips 3, vacuum dipping, kraft paper between layers
Primary inductance: 21H (measured at 100HZ, the inductance measured at different frequencies will be different)
Primary and secondary wire diameter: 0.15MM
Input impedance: 3.5K
Output impedance: 3.5K+3.5K
Installation method: vertical installation with foot integrated side cover
Weight: 1.3KG
Center distances of mounting holes: 52MM left and right, 55MM front and rear
Frequency response: 20HZ-28KHZ
==========
High-concerned chemical : None
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO

مرحبًا،

بحث

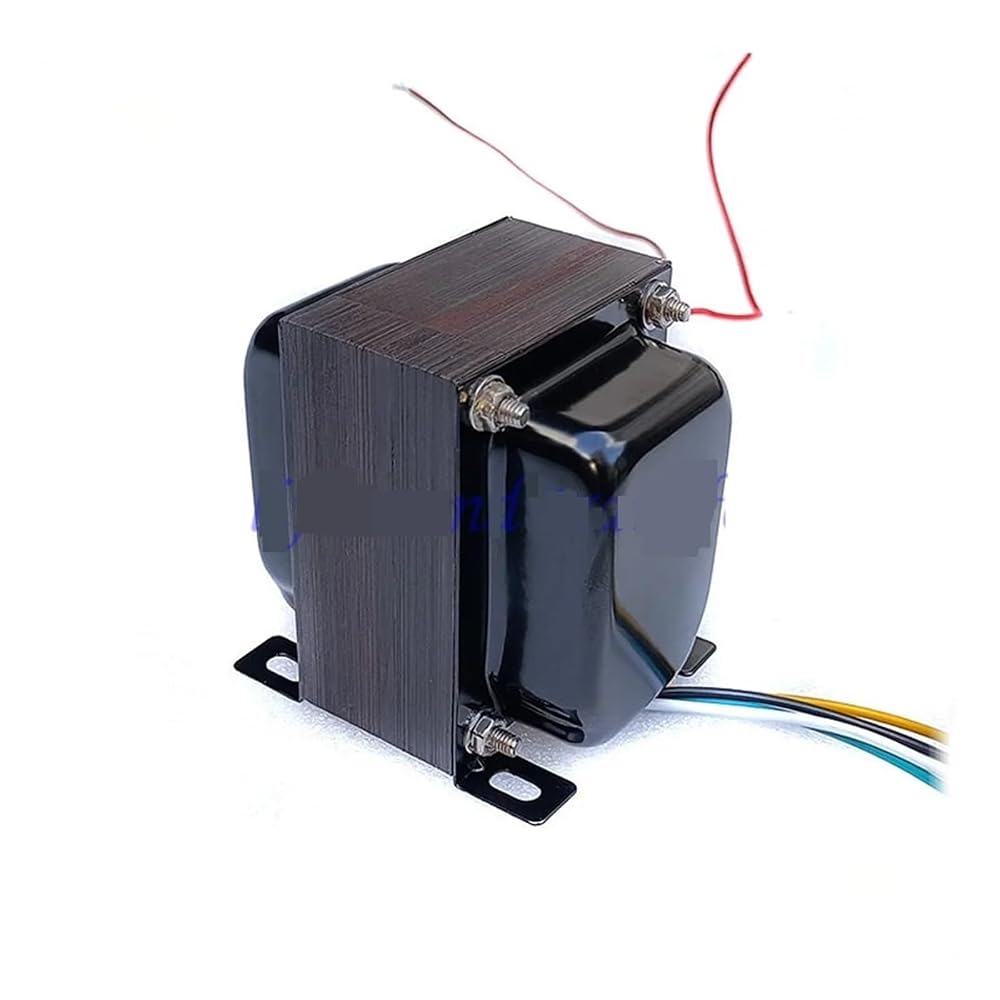

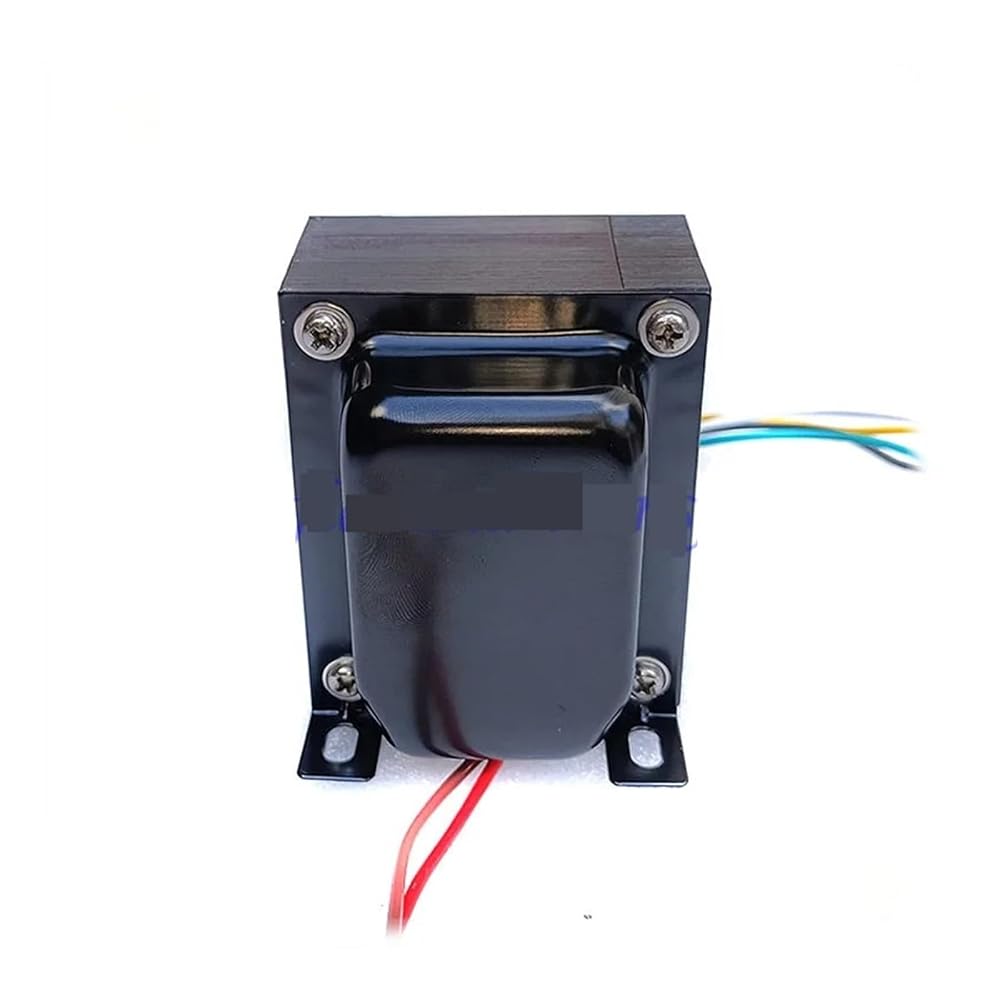

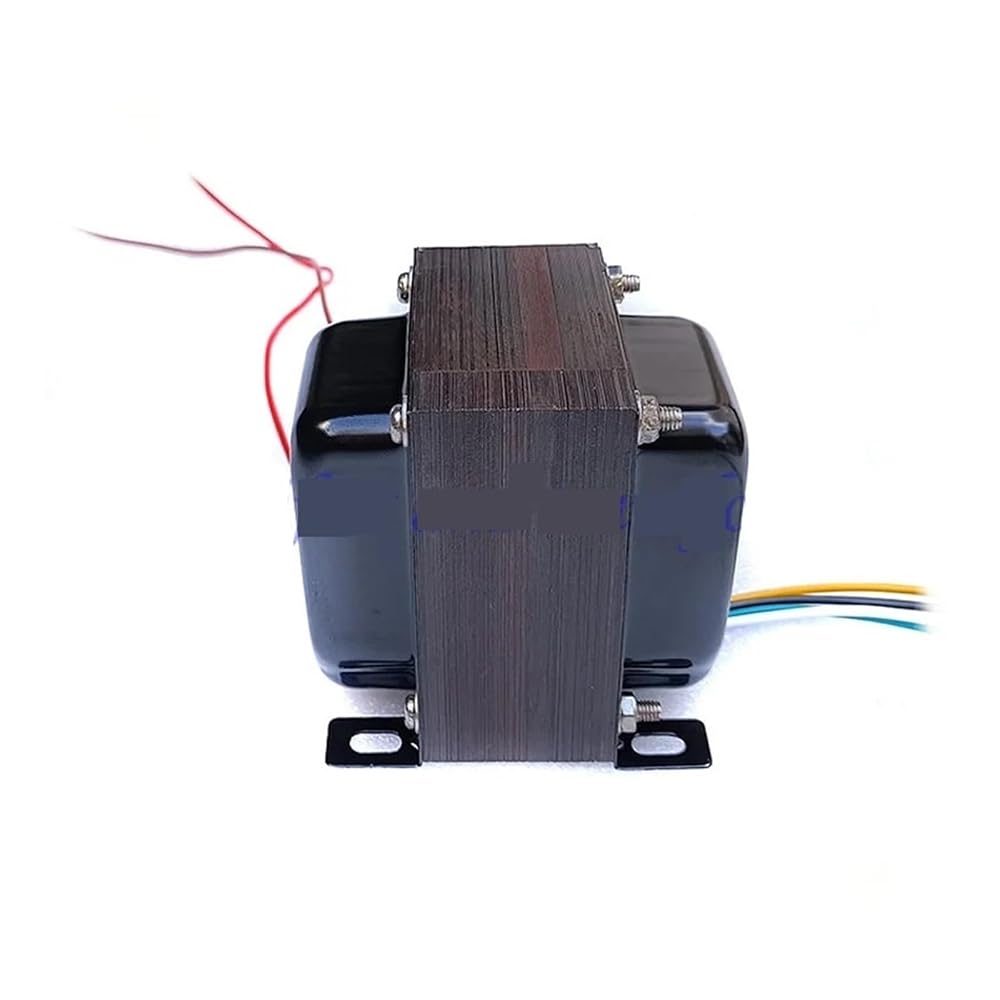

محول إخراج مكبر الصوت 7 وات، محول إخراج أحادي الطرف، 3.5 كيلو: 3.5 كيلو + 3.5 كيلو، محول تعزيز أنبوب كهربائي، Z11 قلب حديدي
