مميزات خاصة

This transformer simplifying assembly while maintaining stable inductance for signal
Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

وصف

Measured parameters:
Power: 5W
Primary 5.5K DC resistance approximately: 527 ohms
Secondary 8 DC resistance: 1.1 ohm
Primary inductor: 11H to 15H, measured at 100HZ, select and match
Secondary inductance: about 28mH measured at 100HZ
Distributed capacitance: 1.47NF measured at 20KHZ
Leakage inductance: 10mH 1000KHZ test
Primary over DC: 35mA
Withstand voltage: 1000V
Frequency response: 20HZ-25KHZ -0.5BD, 44KHZ-1DB

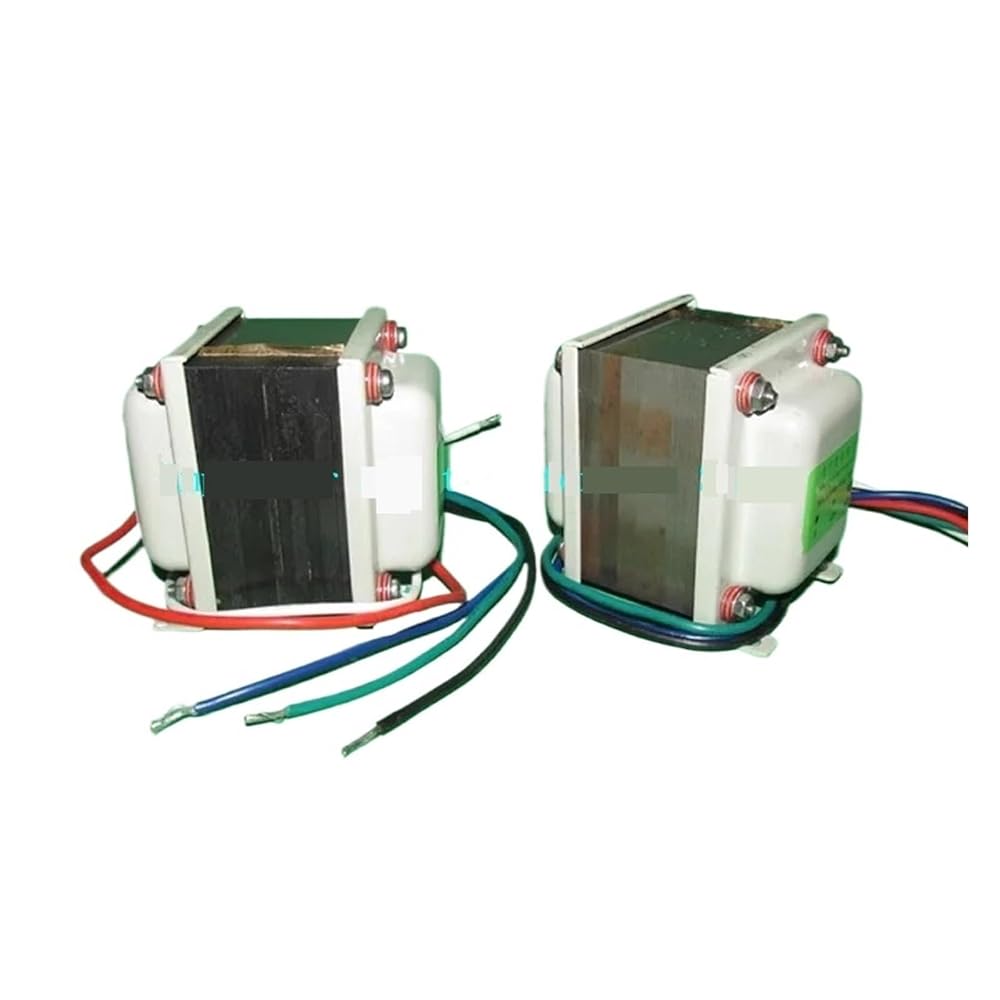

The matching parameters of the inductor and copper resistor are posted on the transformer. Select two transformers with similar parameters and solder them on the circuit board. Weight: 1.73KG/pair. The outer dimensions of the left and right shield transformers are: 55X70X64mm.
==========
High-concerned chemical : None
Origin : Mainland China
Use : AUDIO
