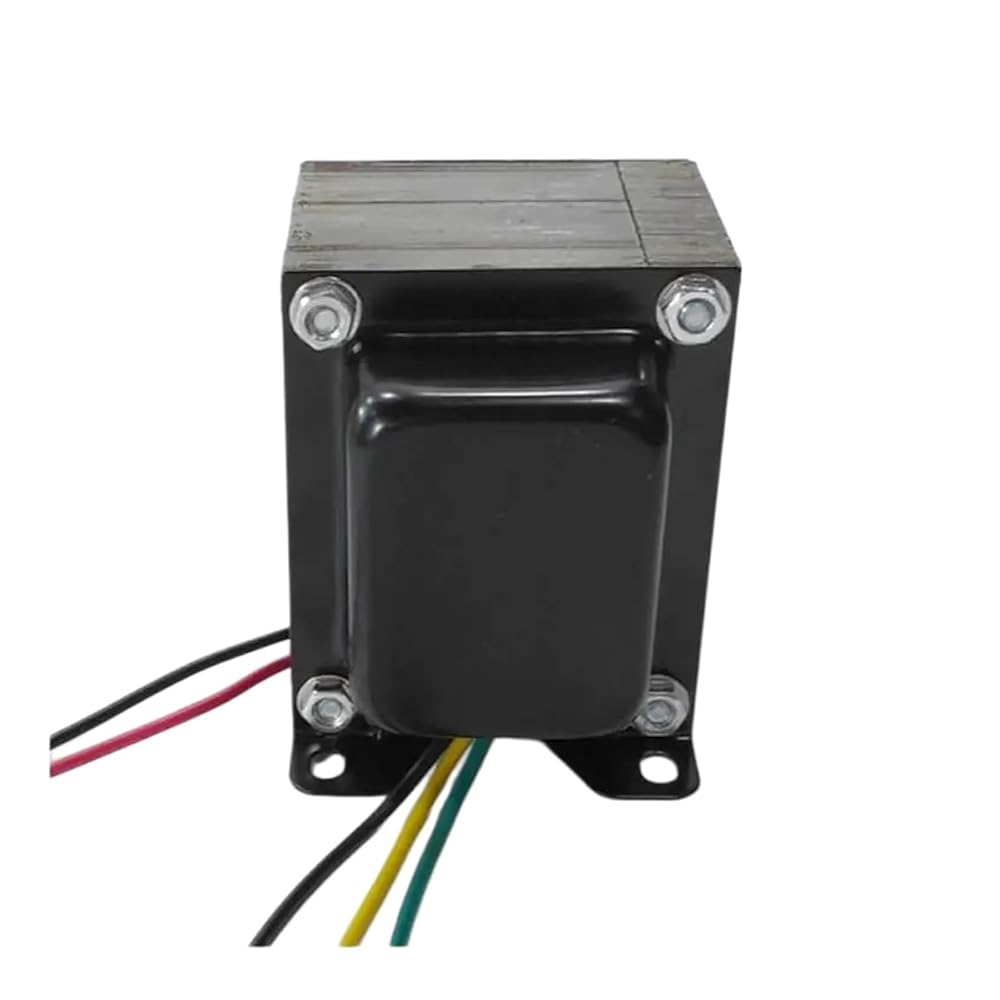

Amplifier Output Transformer 10W 3.5K Tube Output Transformer, 6P3P EL34 6L6 Single-Ended Power Amplifier, Bandwidth: 30HZ-22KHZ(C) in Kuwait

Amplifier Output Transformer 10W 3.5K Tube Output Transformer, 6P3P EL34 6L6 Single-Ended Power Amplifier, Bandwidth: 30HZ-22KHZ(C)

KWD 54
Brand
CAARLA
ColorC
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

Note: When testing the machine, the output transformer must be connected to a speaker or a resistor as a load. The no-load test can easily burn the transformer.
Specifications
Core size: 22MM * 44MM
Winding method: 3 clips 2 (primary divided into 3 sections, secondary divided into two sections)
Inductance: L> = 26H (test frequency is 100HZ, Z11 piece, 3.5K);
Primary wire diameter: 0.17MM air gaps 0.08MM
Secondary wire diameter: 0.53MM and two wires are wound together
Shielding method: painted iron side cover
Weight: 1.3KG
Volume: 68MM wide * 58MM high * 80MM thick, the center point of the mounting hole is: 80MM (horizontal installation)
68MM high * 66MM wide * 80MM thick, the center distances of the installation feet is: 60MM * 44MM (vertical installation)
Bandwidth: 30HZ-22KHZ.
==========
High-concerned chemical : None
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
