Radio Frequency Filters

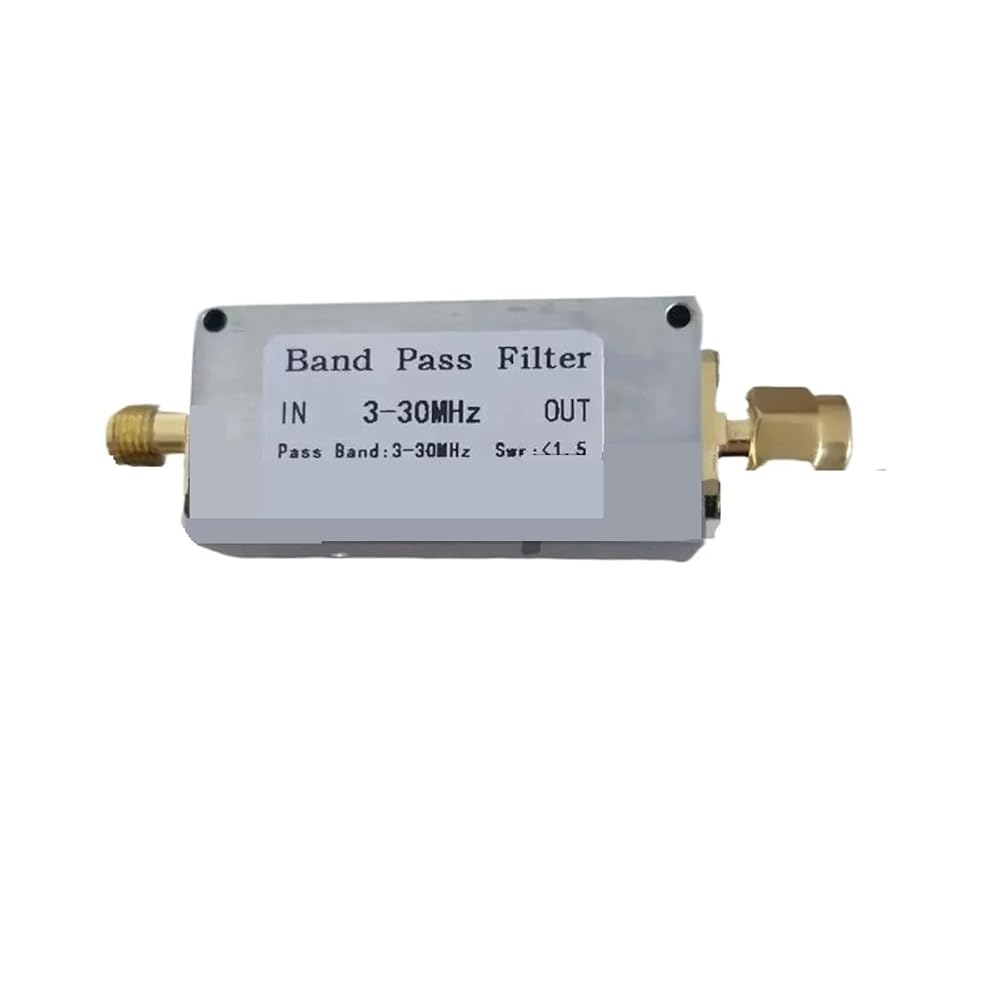

Shortwave bandpass filter (BPF): BPF-3.0-30M-1W
1. Input impedance: 50 ohms; Output impedance: 50 ohms.
2. The available bandwidth is 3.000-30.000MHz
3. Insertion loss: less than 3.0db
4. Connect the IN end to the antenna and the OUT end to the receiver.
5. Power: 1w
6. Standing wave: less than 1.5
7. Input interface: SMA-F (SMA female seat)
8. Output interface: SMA-J (SMA male head)
9. Net weight: 33 grams
10. External dimensions: 64 * 22 * 14mm (including protruding parts) (mounting hole size: 41 * 13mm, 2mm hole)
