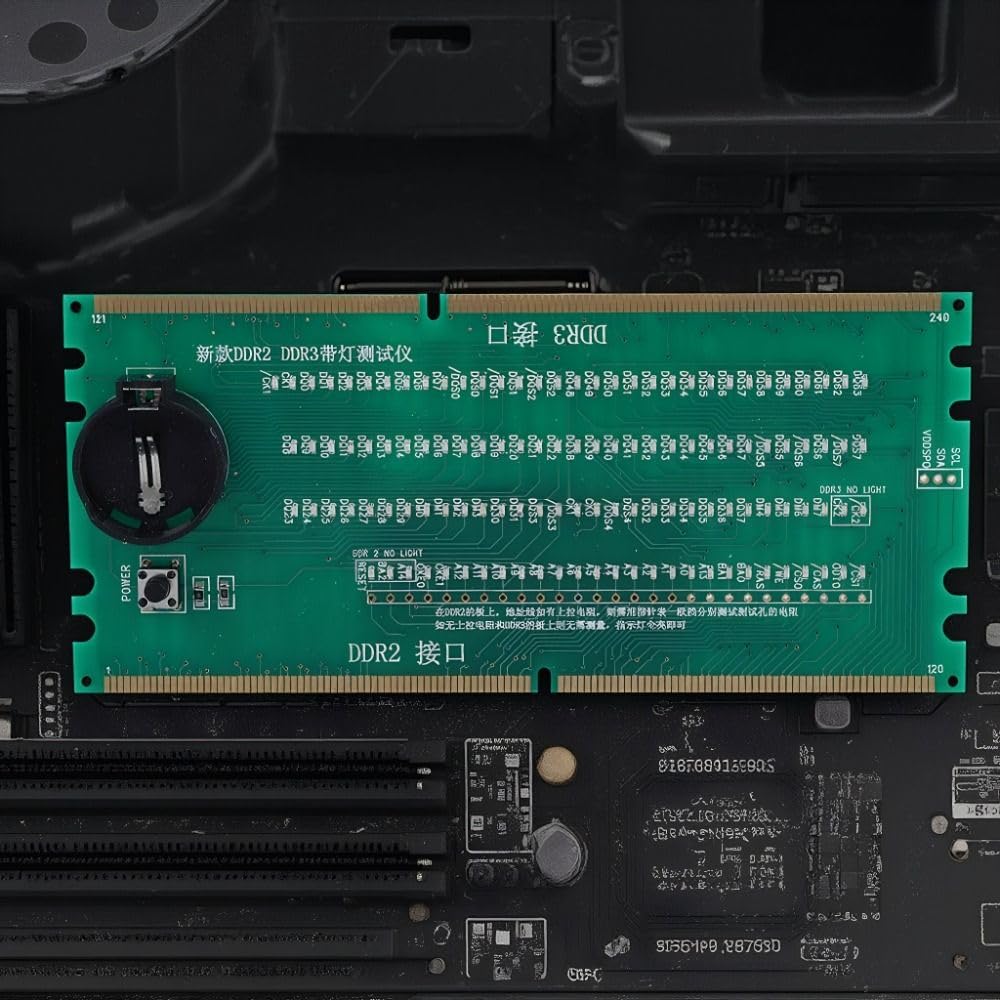

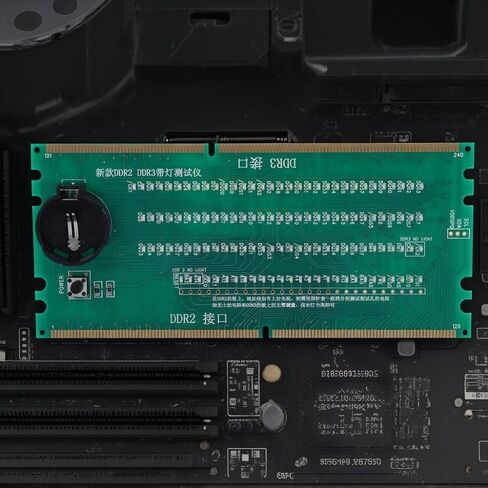

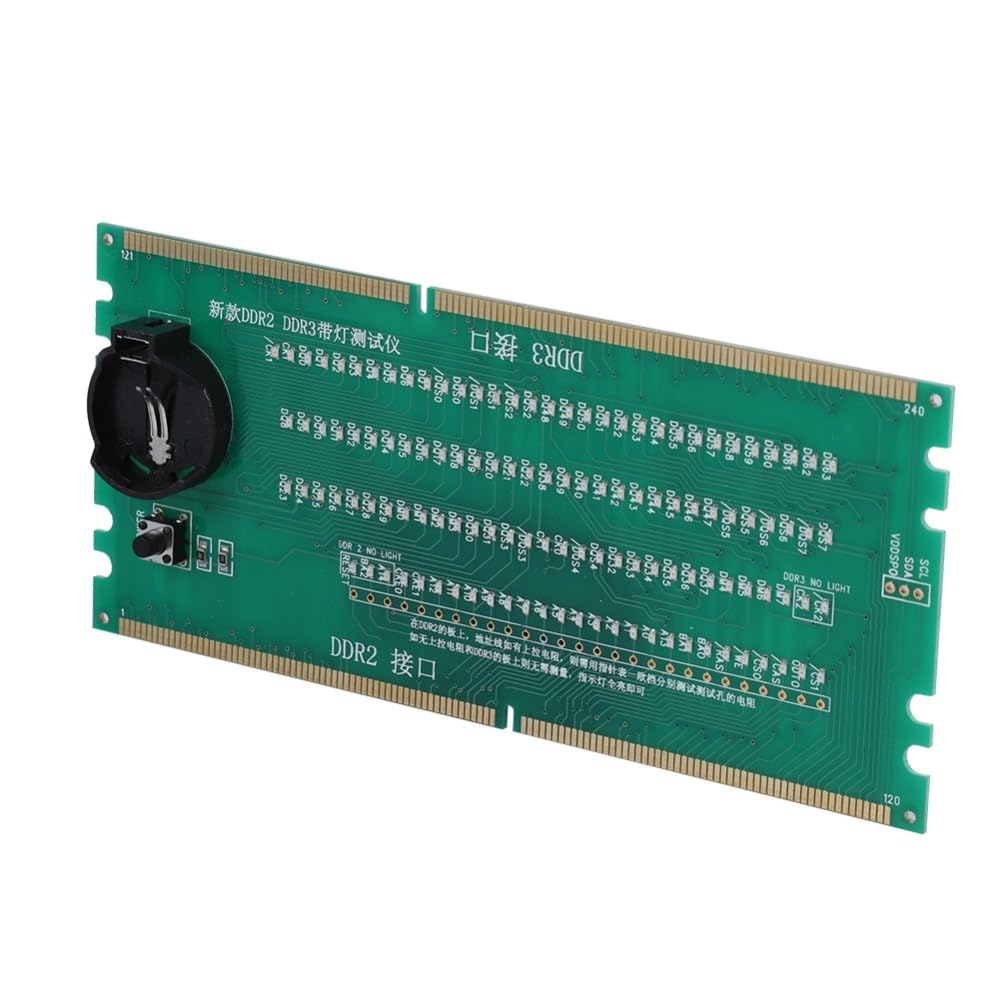

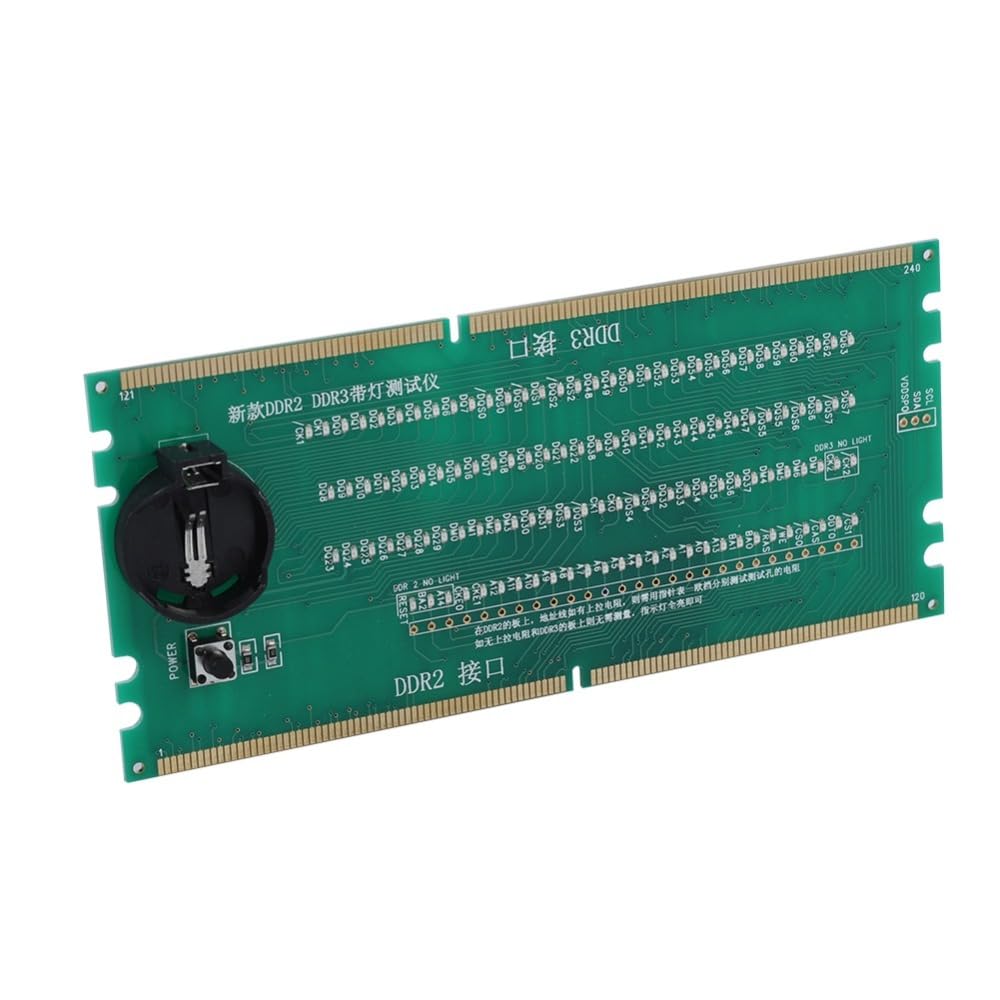

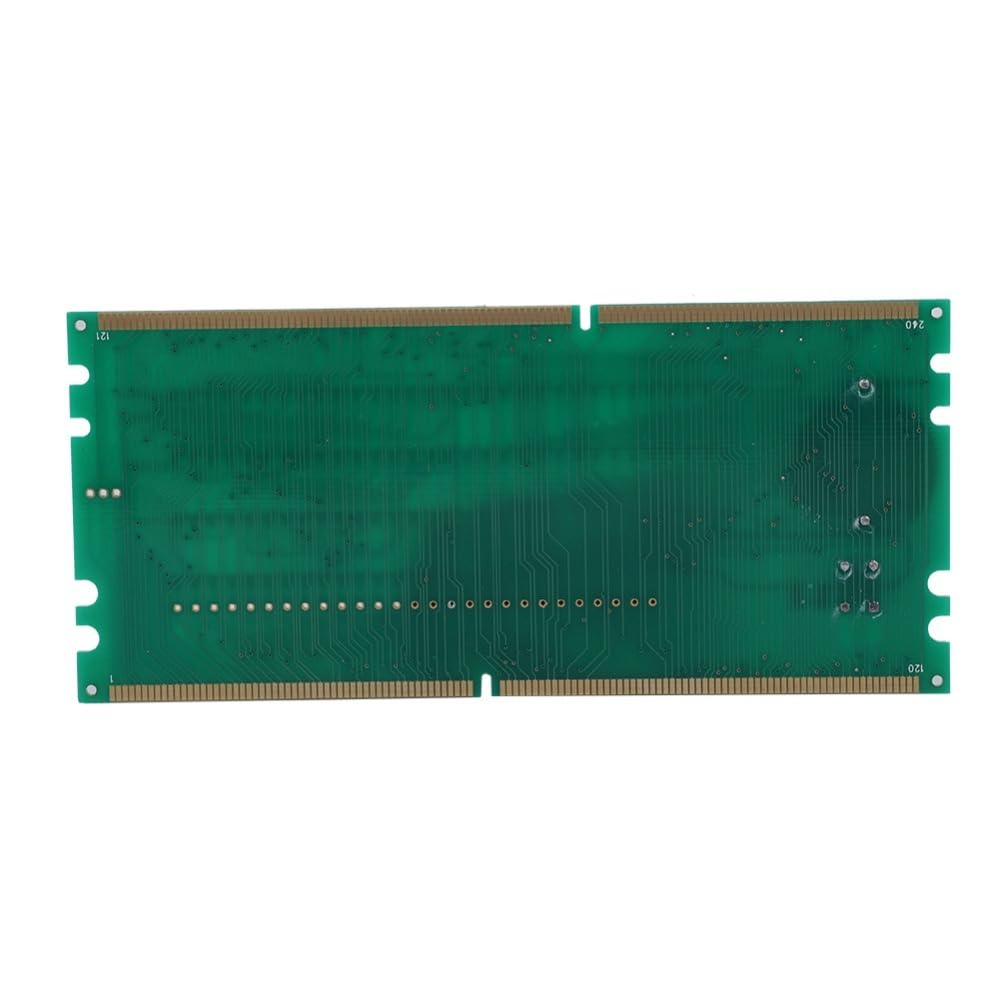

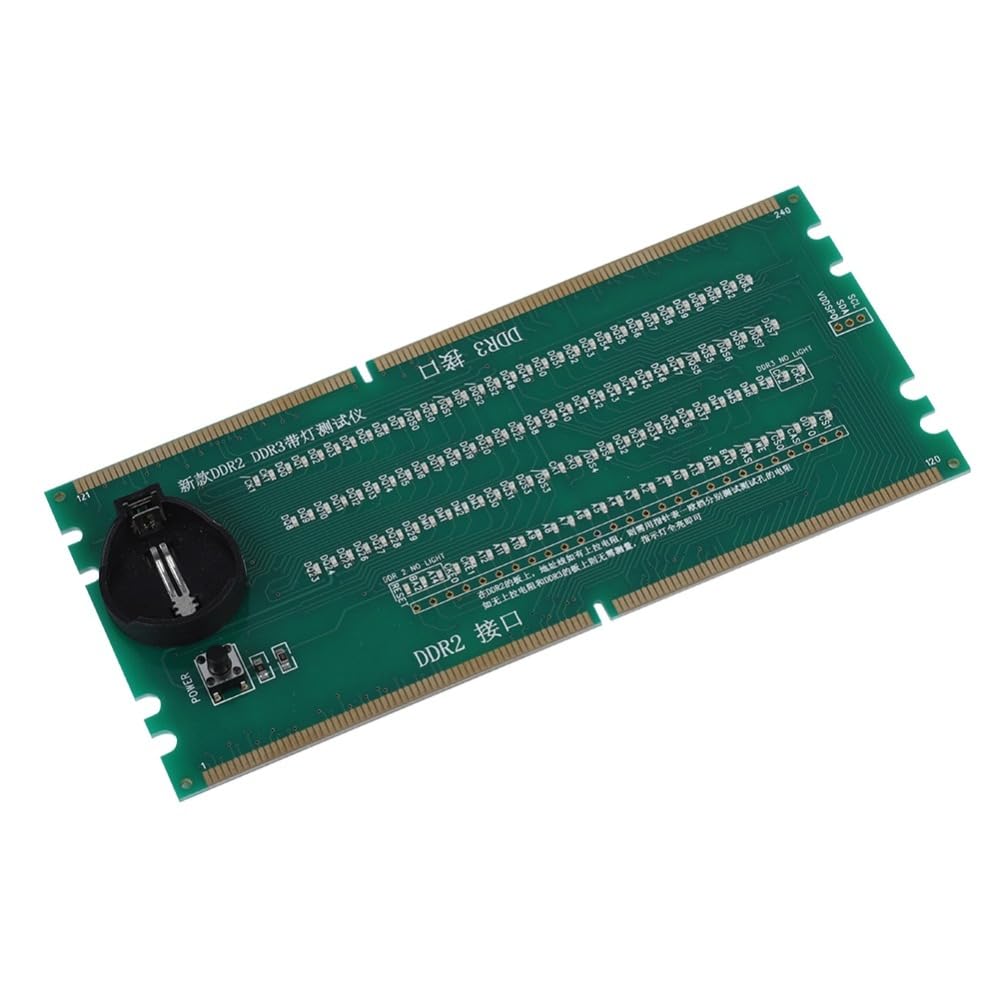

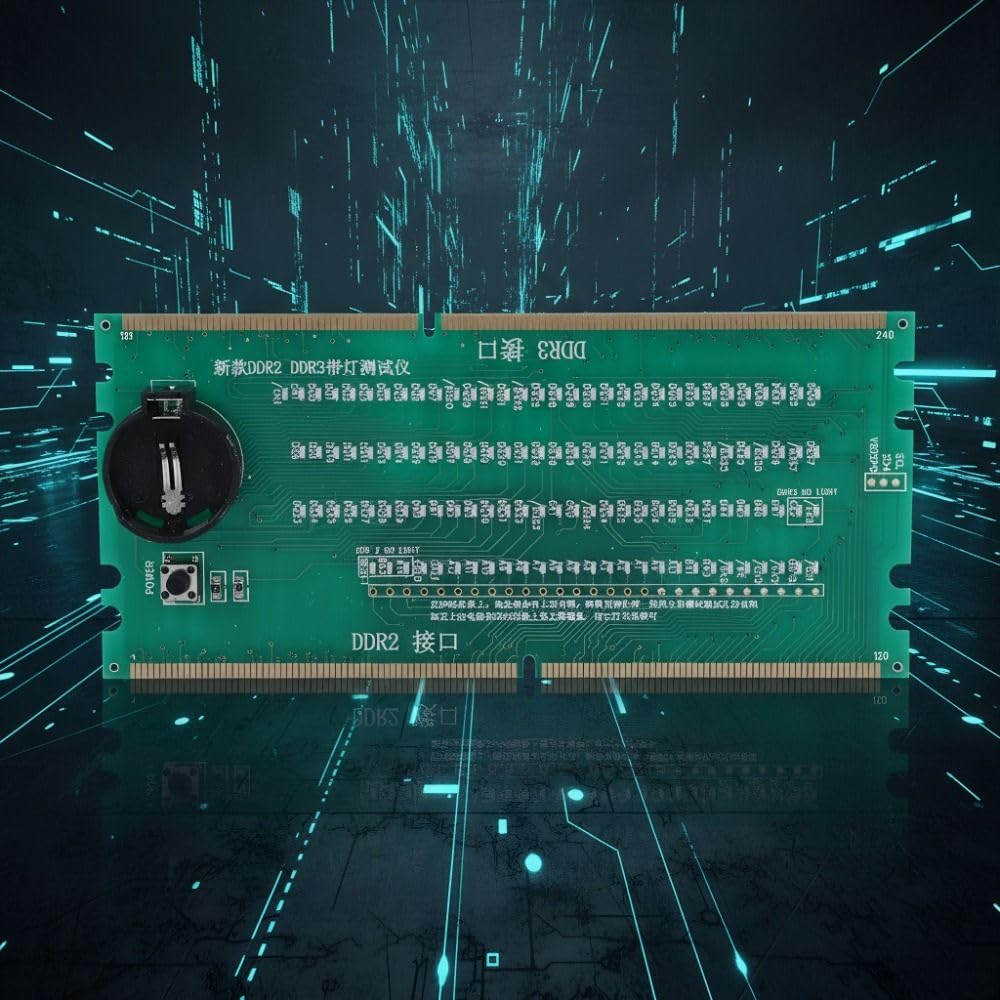

Specification:
Material: PCB
Interface: for AMD / for intel motherboard DDR2 DDR3
Scope: desktop

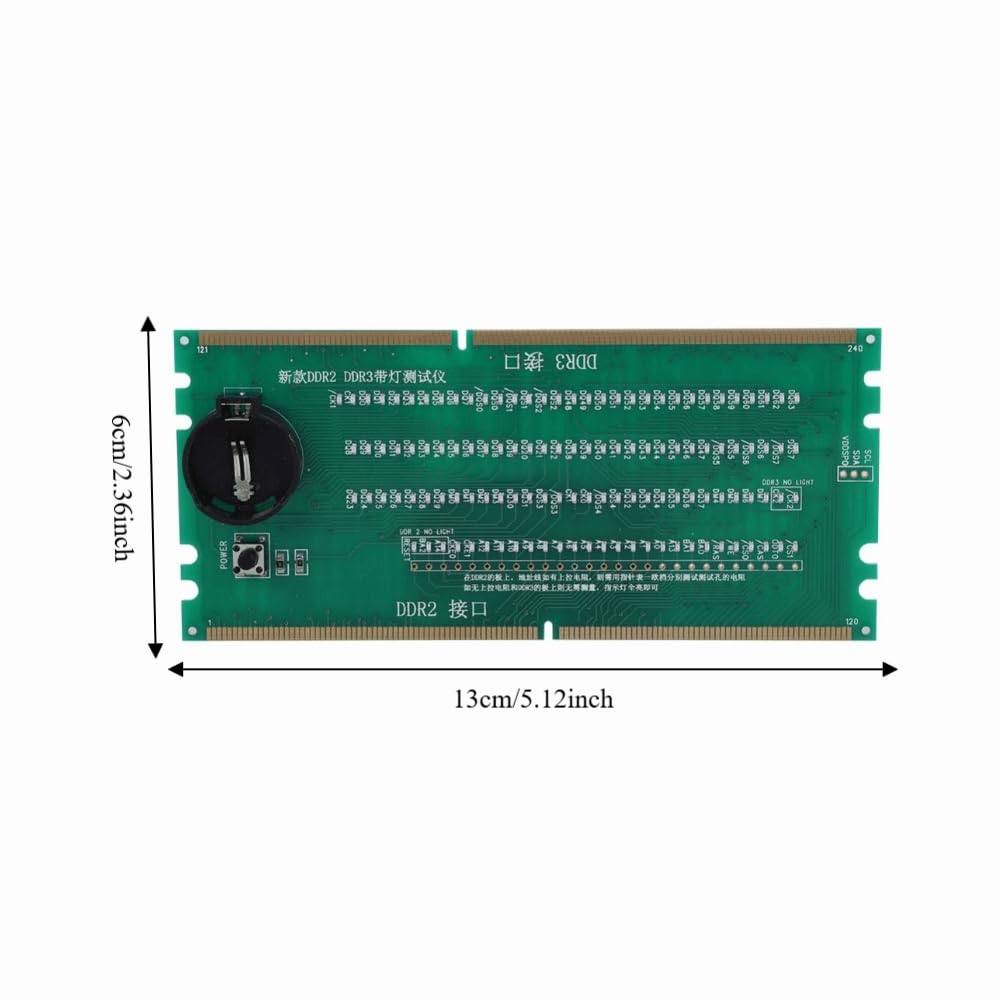

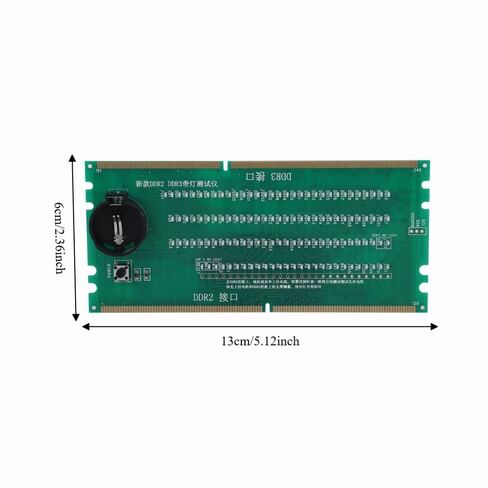

Size: 13.3 * 6 * 1cm / 5.2 * 2.4 * 0.4in
Color:Green

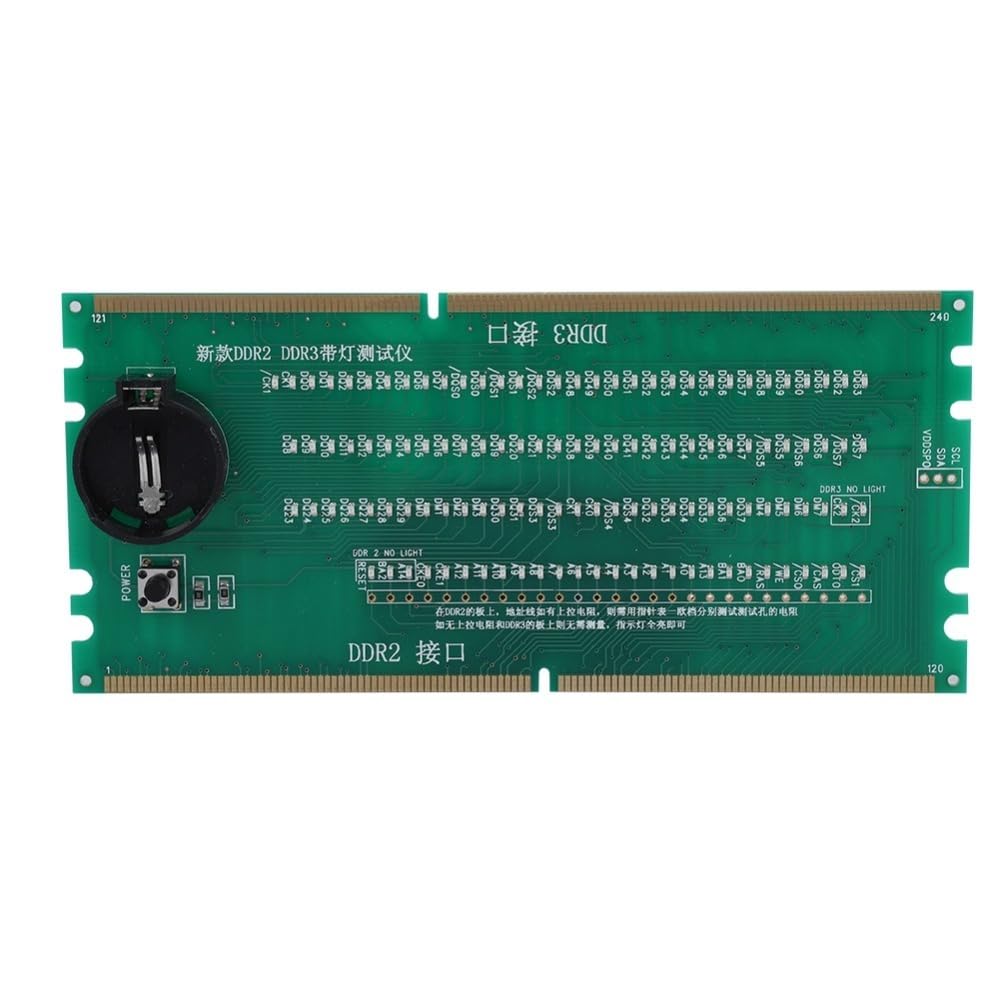

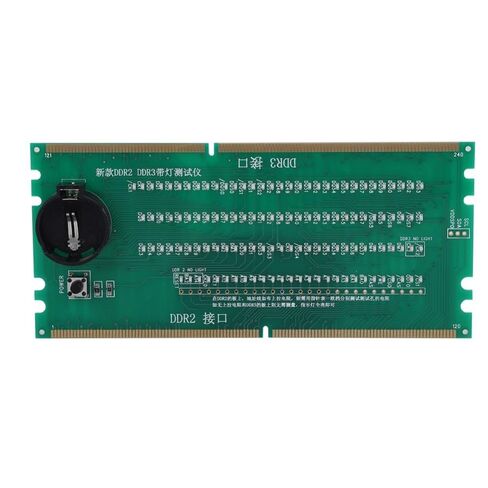

Instructions for use:

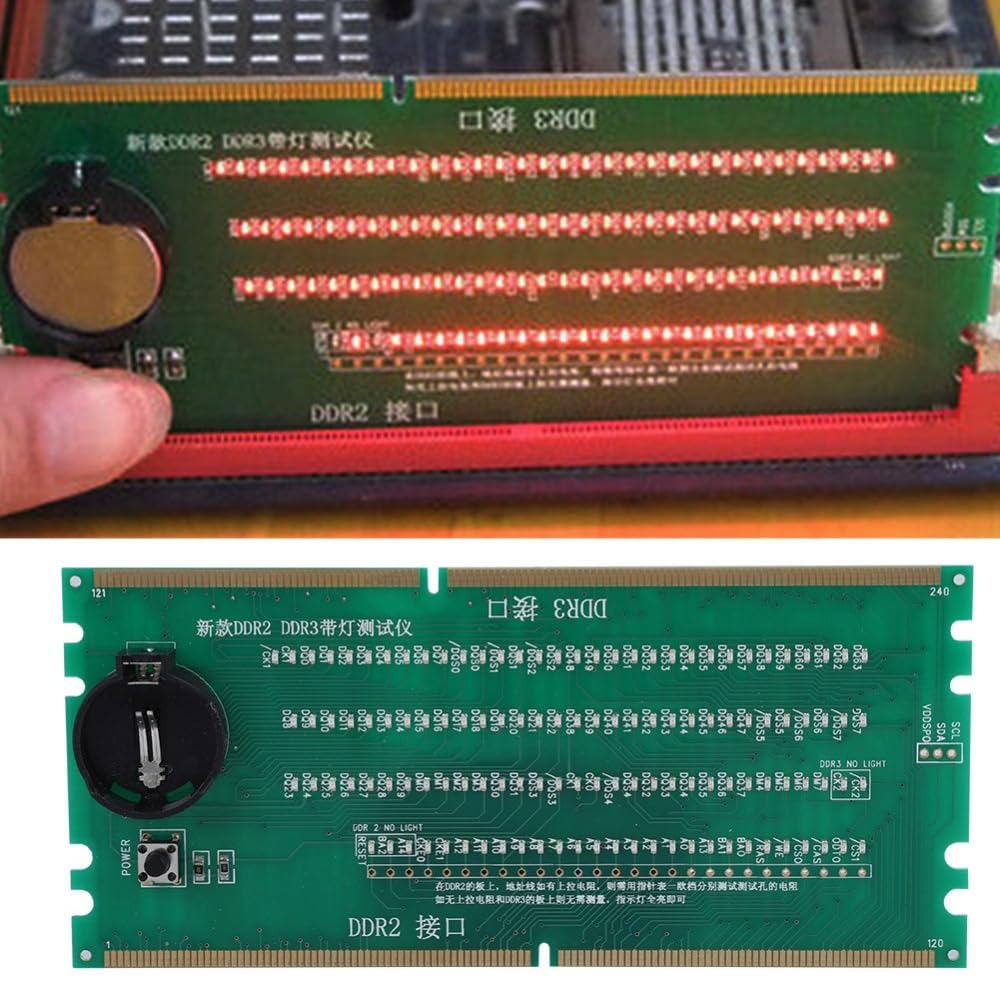

1. Install the 3V (CR 2032) battery on the tester, test each memory slot of the corresponding DDR2, DDR3 motherboard. The motherboard does not have power, press the button switch on the tester, the test lamp is all bright and the brightness is the same. The signal line is normal, if the light does not shine or special bright, this signal has open circuit short circuit fault. (Note: In the test for intel motherboard, motherboards do not connect the CPU and a variety of connection cards can be measured in the test for AMD motherboards (such as 940 motherboard, AM2 motherboard, 1207 motherboard, 1366 motherboard), to plug in CPU, test light Will be bright.
2. In the test DDR2 motherboard, the address line no pull-up exclusion, all the lights all bright, that normal, if the pull-up exclusion, the address line lights, only that exclusion no open, but also with the pointer Table to further determine whether the BGA address line open. (How to determine whether the pull-up exclusion, the pull-up exclusion generally are designed in the memory slot next to the general There are several exclusion, one end connected to the address line, one end of the power supply)
3. Pointer table to determine the address line method: the pointer table is pulled to X1 that is one ohm of the stalls, black table pen then motherboard, measured with a red table pen, respectively, DDR2 address line measurement hole, address line resistance that BGA address Line without welding, such as a larger swing, indicating that there are BGA solderable PCB or broken wire failure.
Pakage list:
1 x Tester Card
