صمام كروي نحاسي كهربائي بمحرك 3/4 بوصة - صمام إيقاف إيقاف ثنائي الاتجاه AC220V للمياه الباردة والساخنة (24VAC) in Kuwait

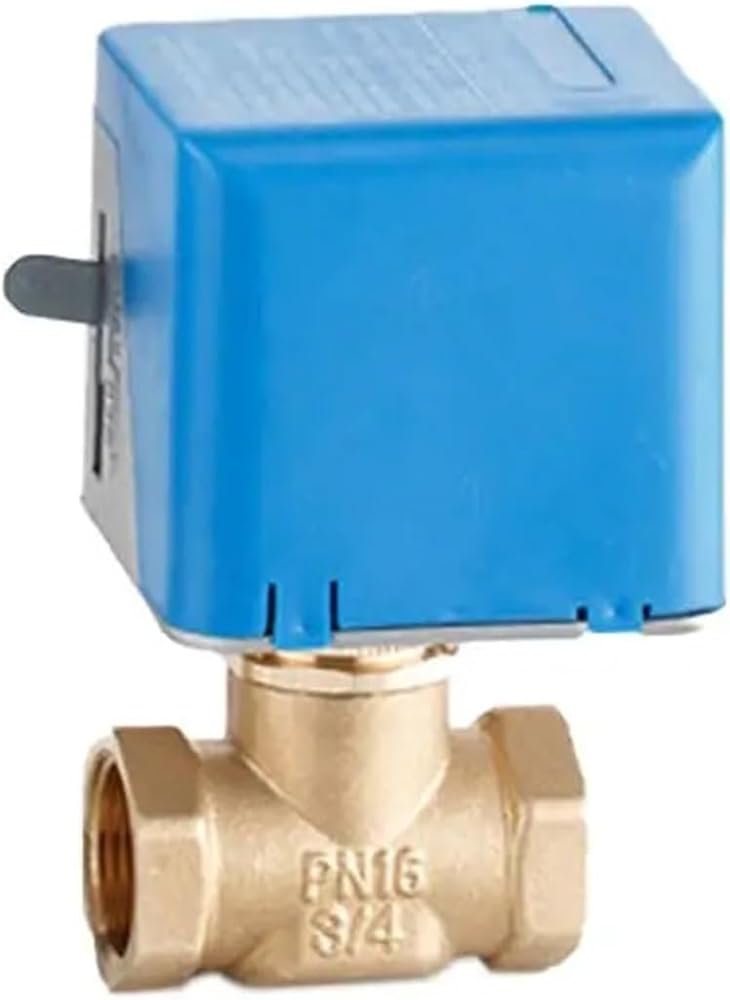

صمام كروي نحاسي كهربائي بمحرك 3/4 بوصة - صمام إيقاف إيقاف ثنائي الاتجاه AC220V للمياه الباردة والساخنة (24VAC)

KWD 0
ماركة
RVDSOWCIT
مقاس
– 1 +

مميزات خاصة

  • Durable construction with a brass body and stainless steel valve stem, ensuring long-lasting performance in various applications.
  • devised for both cold and hot water media, with a temperature range of 2 to 95°C, making it versatile for different environments.
  • Fast operation with an opening time of approximately 10 seconds and a closing time of about 5 seconds for efficient flow control.
  • Compatible with G internal pipe threads, customizable according to customer requirements for easy installation.
  • Features a hysteresis synchronous motor with low power consumption (7.5 VA) and operates at AC220V, suitable for residential and industrial use.

وصف

Ball valves
Valves
Body valve: Brass(forging)
Valve stem: stainless steel
Material of seal: silicone rubber
the drive chassis: die casting aluminum alloy
Drive cover : Flame retardant ABS engineering plastics
Driving motor :hysteresis synchronous motor
The drive voltage :AC220V 50HZ/60HZ
Power consumption:7.5 VA
The valve body pressure::1.6 mpa to allow pressure: s0.13 mpa
Media :cold water hot water
Media temperature:2.95
Ambient temperature:0/60
Closing and opening time :opening time about 10 second closing time about 5 second
The valve connect way: G internal pipe thread(customized according to customer requirements)
Trip(nominal valve): 4.0mm
