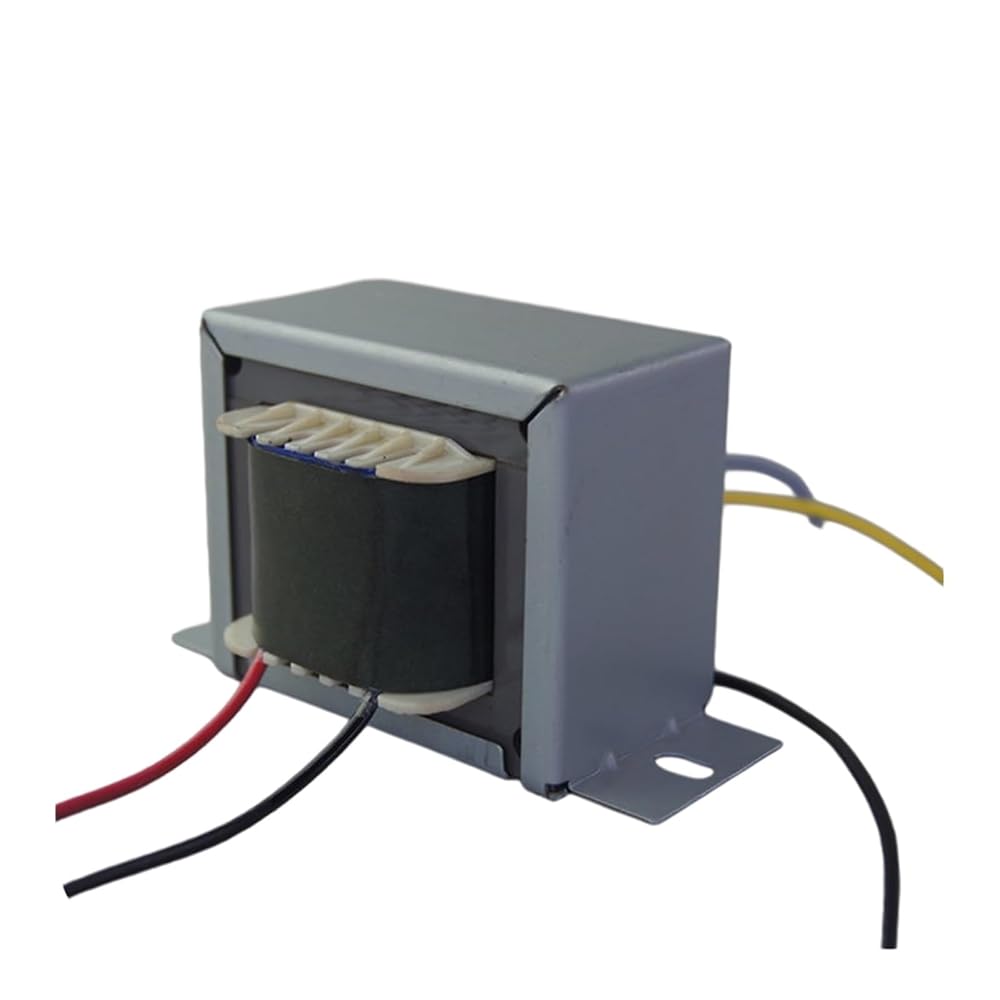

Amplifier Output Transformer Z11 Iron core 7W 5K Tube Output Transformer, 6P1 6P14 6V6 Single-Ended Transformer. Bandwidth: 45HZ-20KHZ(E) in Kuwait

B

KWD 46.500
Brand
CAARLA
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

Note: When testing the machine, the output transformer must be connected to a speaker or a resistor as a load. The no-load test can easily burn the transformer.
Specifications
Core size: 22MM * 35MM
Winding method: 3 clips 2 (primary divided into 3 sections, secondary divided into two sections)
Inductance: L> = 21H (test frequency is 100HZ, Z11 piece, 5K);
Primary wire diameter: 0.14MM air gaps 0.08MM
Secondary wire diameter: 0.49MM two parallel
Shielding method: painted iron side cover
Weight: 1.03KG
Volume: 68MM high * 55MM wide * 75MM thick, the center point of the mounting hole is 45 × 50MM (the size of vertical installation)
The primary impedance of this transformer is 5K, and the secondary impedance is 0-4 ohm-8 ohm
Bandwidth: 45HZ-20KHZ.
==========
High-concerned chemical : None
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
