مميزات خاصة

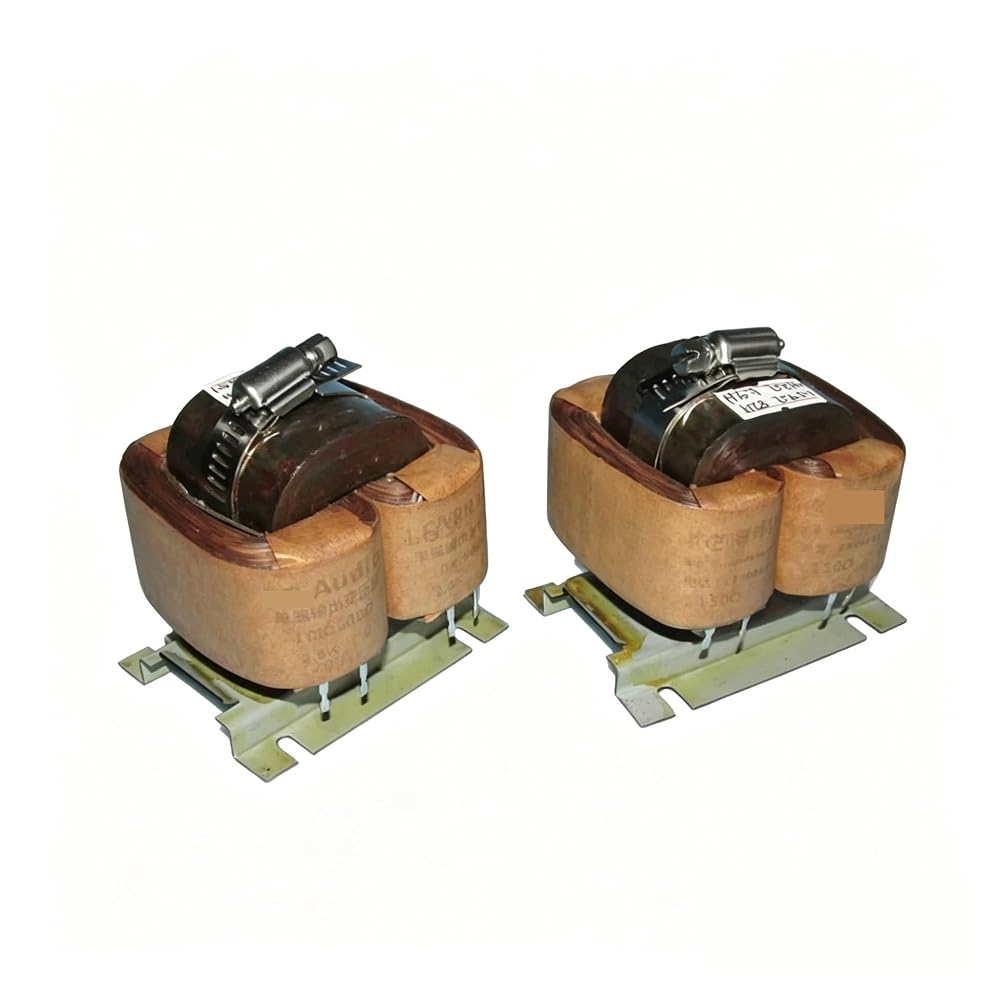

This transformer simplifying assembly while maintaining stable inductance for signal
Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

وصف

Primary: The series inductance is about 81H. The DC resistance is about 1590 ohms.
Secondary: The series inductance is about 5.8H. The DC resistance is about 412 ohms.
Distributed capacitance: about 2600P 20KHZ measured
Leakage inductance: about 23mH 100HZ measurement
Working current: DC 30mA.
Frequency response: Frequency response 10HZ to 138KHZ attenuation -0.8DB.
Volume: 77mmX67mmX80mm.
Weight: about 1.37 kg/pair.

The following schematic diagram is for reference only, T2 is a 10K: 600 ohm output transformer.
*************************************************
The transformer can also be reversed to 600 ohms: 10K step-up use, 4 times passive step-up amplifier use.
==========
High-concerned chemical : None
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
