This transformer simplifying assembly while maintaining stable inductance for signal
Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

وصف

Note: When testing the machine, the output transformer must be connected to a speaker or a resistor as a load. The no-load test is easy to burn the transformer.

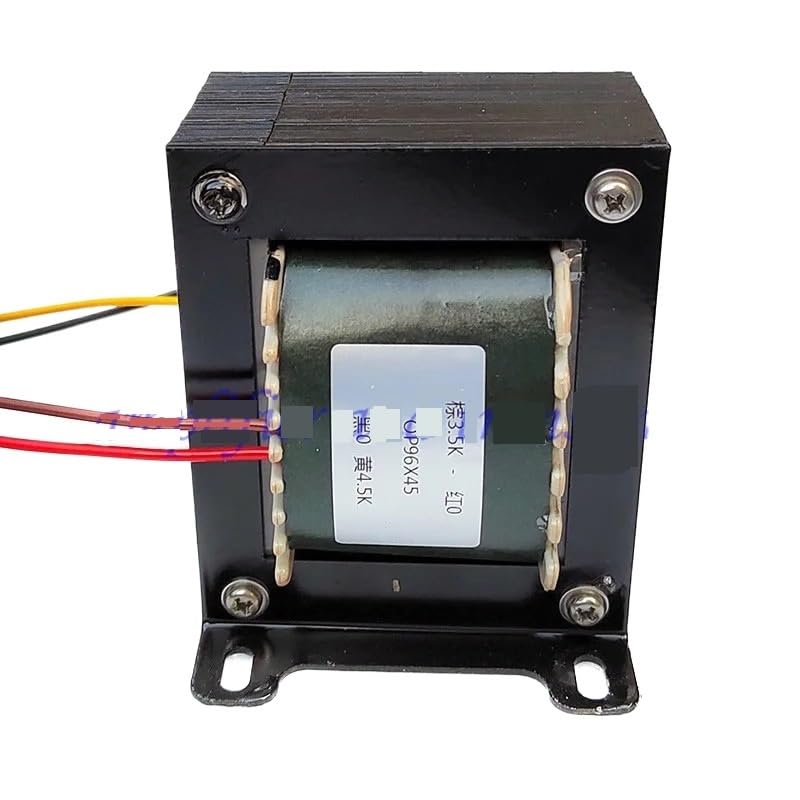

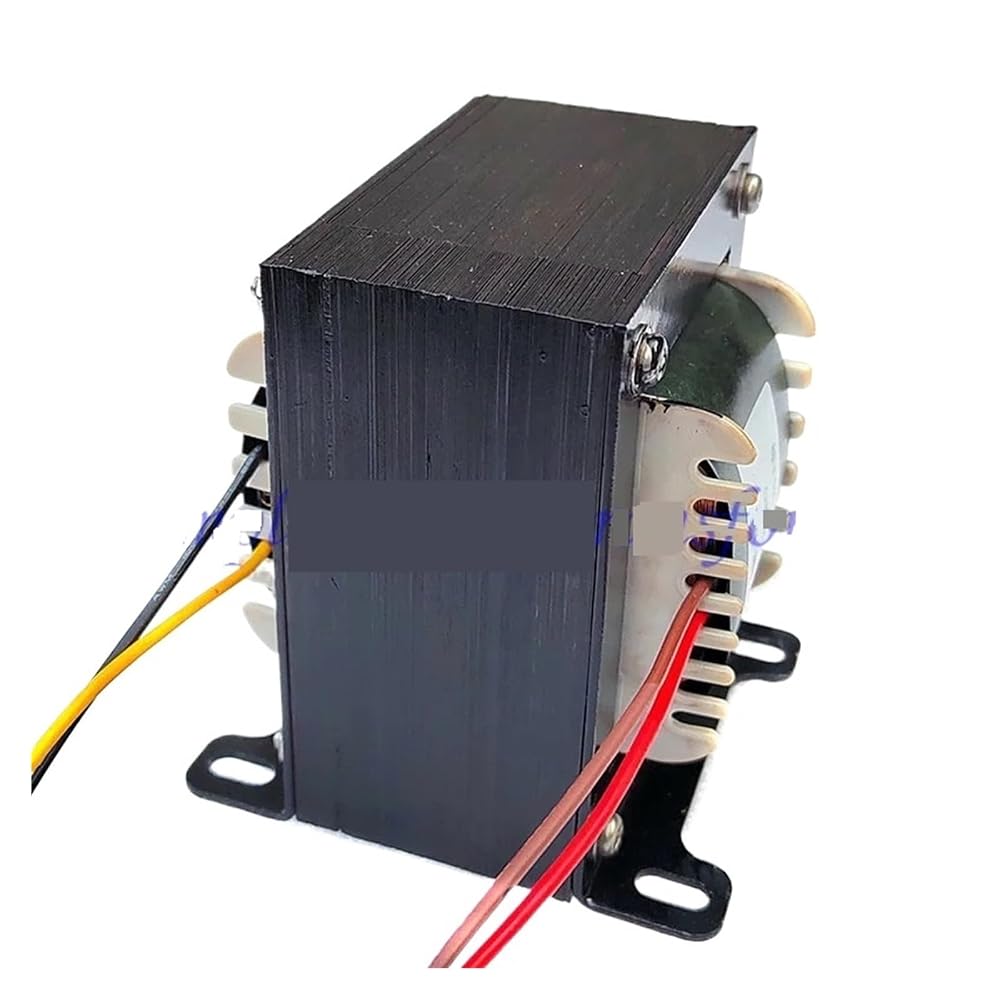

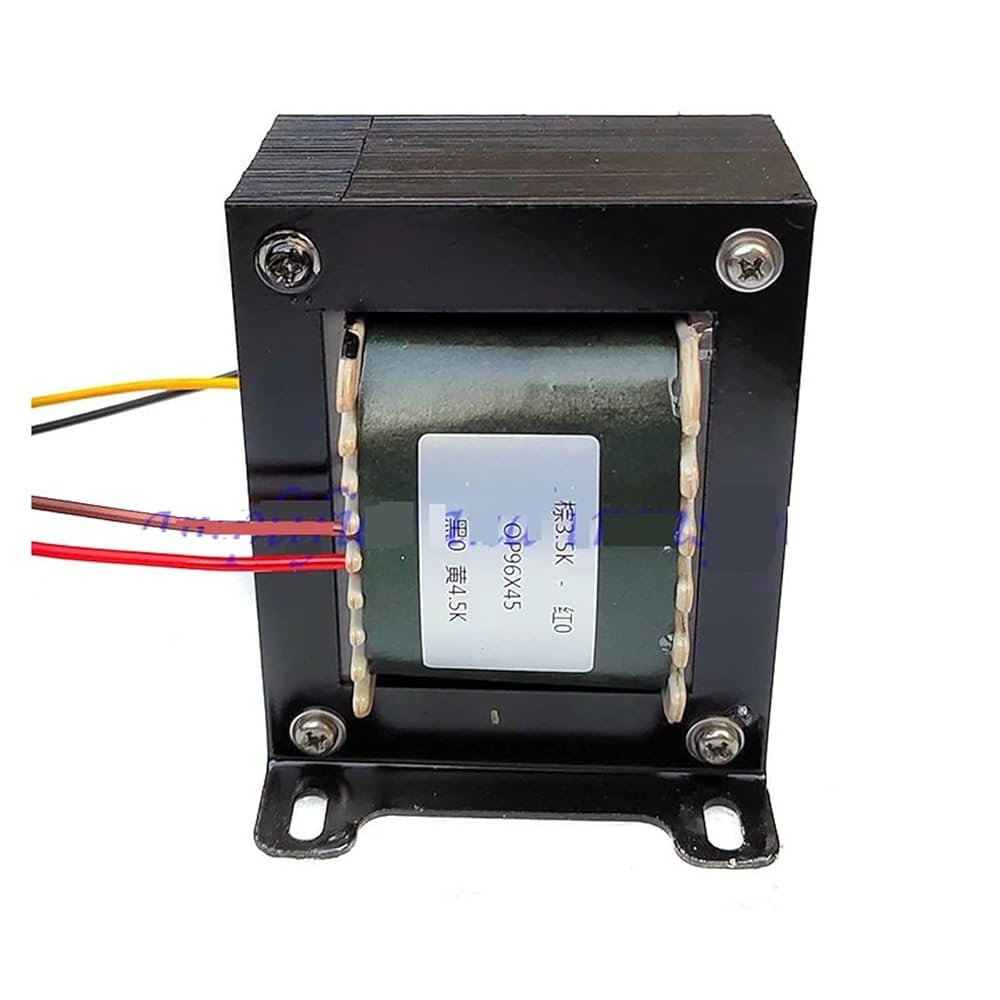

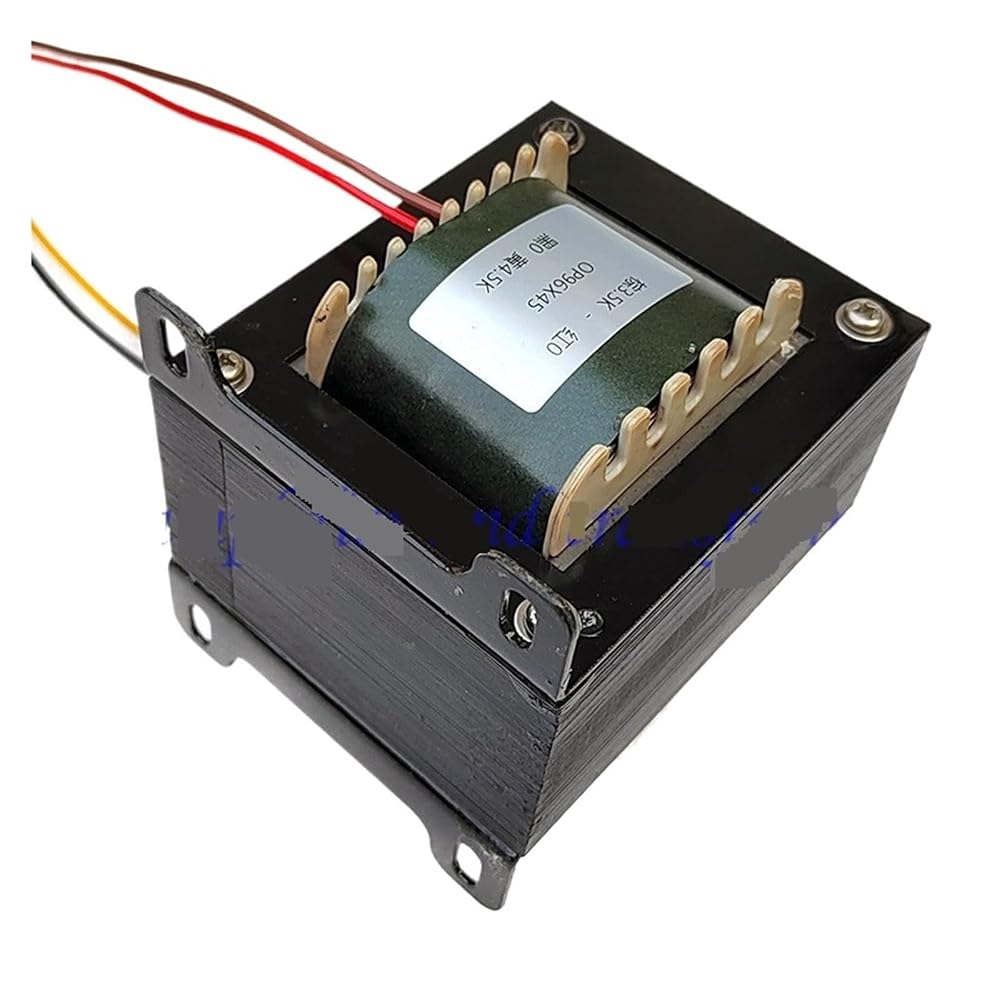

20W tube amplifier single-ended drive transformer EI96*45; 3.5K: 4.5K, the maximum primary current is 150MA
Iron core size: Tongue width 32MM*45MM stack thickness
Winding method: 3, 2, vacuum impregnation, kraft paper between layers
Primary inductance: >21H (measured at 100HZ, the measured inductance will be different at different frequencies)
Primary and secondary wire diameter: 0.23MM
Input impedance: 3.5K
Output Impedance: 4.5K

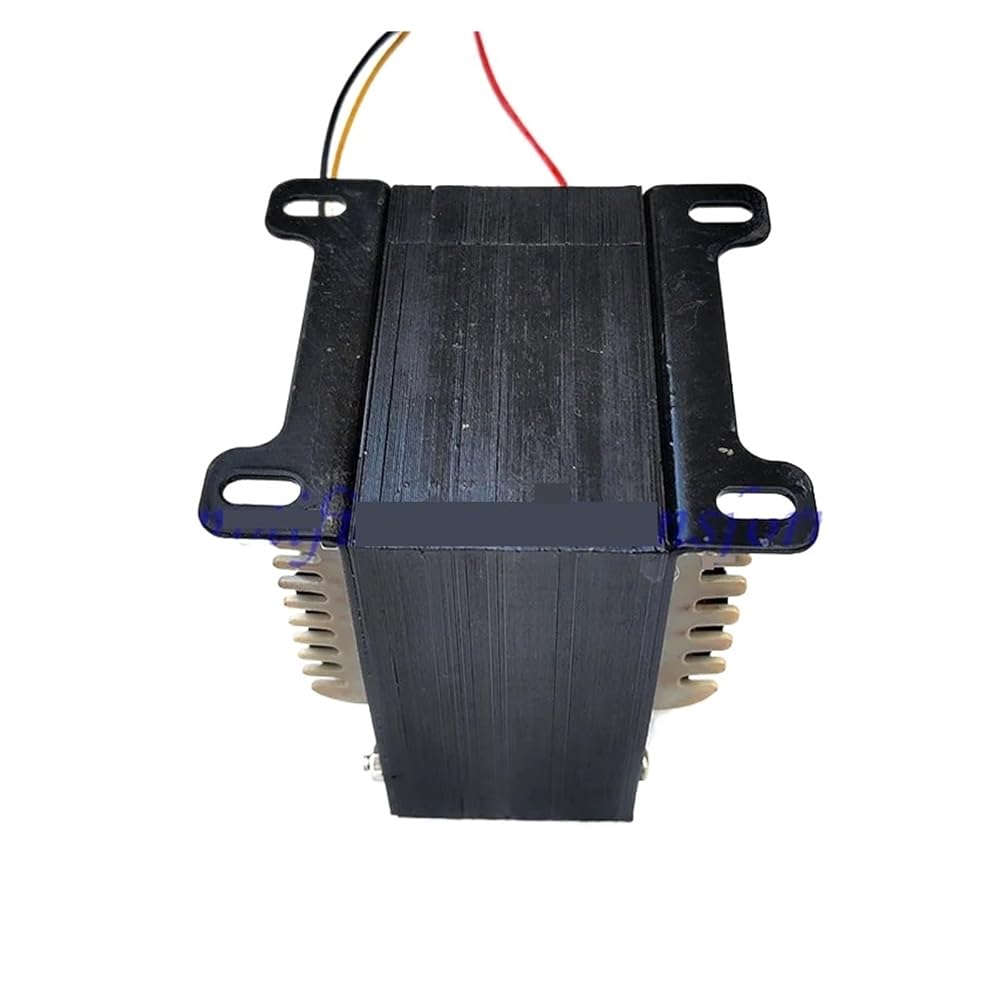

Installation method: 1.5MM thick integrated vertical bracket with feet
Weight: 2.7KG
Mounting hole center distances: left and right 64MM, front and rear 68MM
Frequency response: 20HZ-30KHZ
==========
High-concerned chemical : None
Origin : Mainland China
Use : AUDIO

مرحبًا،

بحث

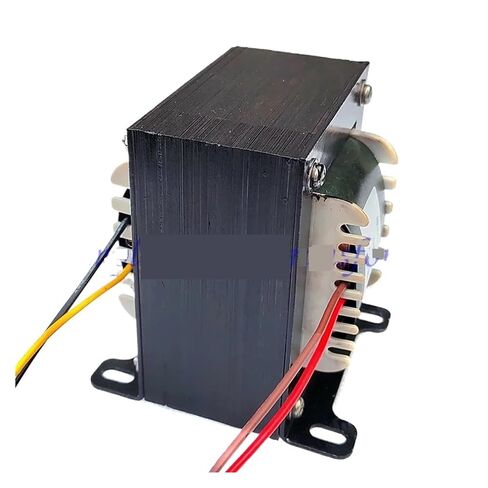

محول إخراج مكبر الصوت 3.5K:4.5K 20W محول إخراج أحادي الطرف، محول محرك مضخم طاقة الأنبوب الإلكتروني، محرك بين المراحل، Z11 core
