Voltmeter

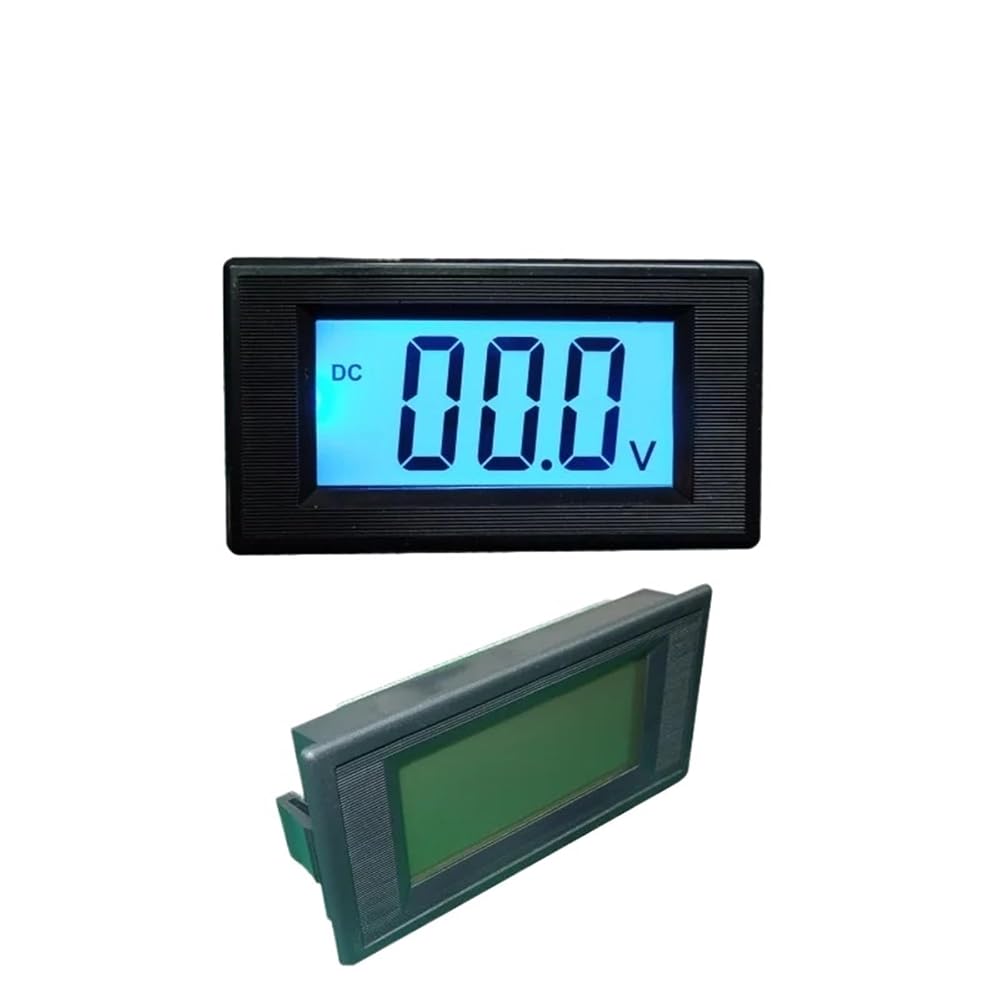

YB5135D-DC Voltage Meter Two-wire Digital Voltmeter Electric-bike Voltage Meter Blue Backlight Display Electrical Tools
The difference between Full-closed and semi-closed :
Semi-closed: from the back "can see" components on the circuit board; viewing area: 51 * 24.5mm; font: 19 * 9mm
Full-closed: from the back "can not see" components on the circuit board; viewing area: 61 * 24.5mm; font: 21 * 11mm
Technical Parameters:
With reverse polarity protection
Display: , blue backlight
Overall dimensions: 79 × 43 × 25 mm
Installation opening: 76 × 39 mm
Weight: about 70g
Measurement rate: 2 times / S
Extreme working conditions
Working temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight: No direct exposure
Feature:
Product stability is good, high precision measurement, anti-interference ability.
The appearance of the standard size, easy installation.
==========
Hign-concerned Chemical : None
Model Number : YB5135D_DC 2 Wires
DIY Supplies : ELECTRICAL
Dimensions : 79x43x25mm
Operating Temperature : -10~50 degress
Accuracy Class : 1% +/- 2 digits
Power Supply :
Display Type : Digital Only
Display Type : Blue backlight
Working pressure : 80~106kPa
Mounting holes : 76x39mm
Customize : Accept
