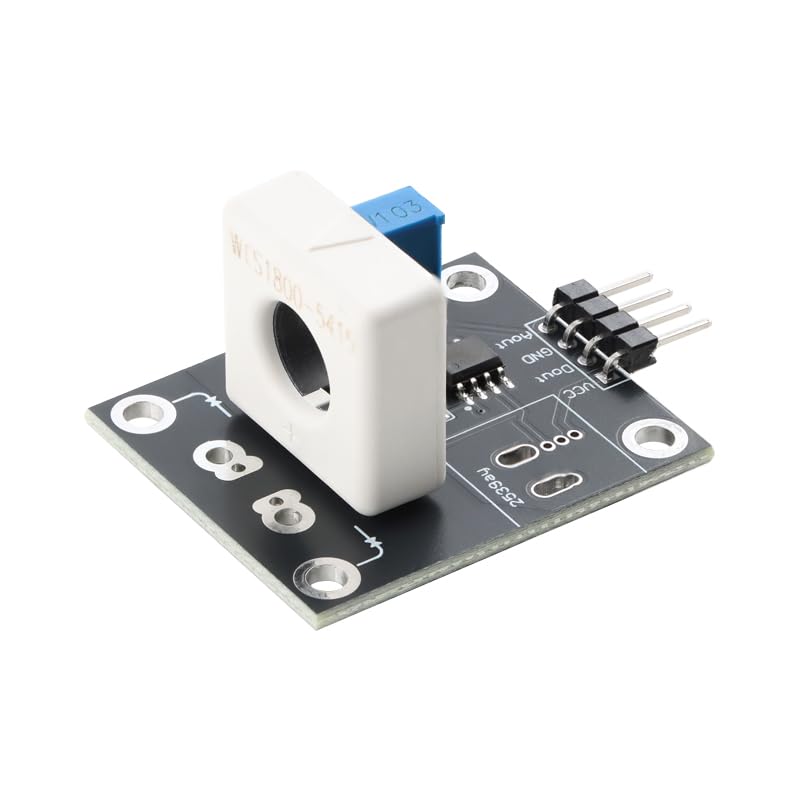

【High-Precision Non-Contact Current Detection】 100A DC and 70A AC range; 22mV/A sensitivity; 1µs response time; Suitable for battery management and motor control applications.
【Adjustable Overcurrent Protection】 5A to 100A threshold range; 5A step adjustment; TTL output triggers alarm when overcurrent detected; suitable for load protection and fault monitoring.
【Reliable Performance】 -25°C to +80°C operating temperature; ±0.2% FSR/year long-term stability; low drift ensures reliable operation in varying Settings.
【Easy Integration with Development Boards】 Compatible with for for Arduino and STM32; 0–3.3V analog output; TTL level signal for quick system setup; supports rapid prototyping and secondary development.
【Robust Design for Reliable Operation】 Shielded housing reduces magnetic interference; twisted pair wiring recommended for signal lines; not for high-voltage systems (>70V AC); calibration advised at room temperature.
