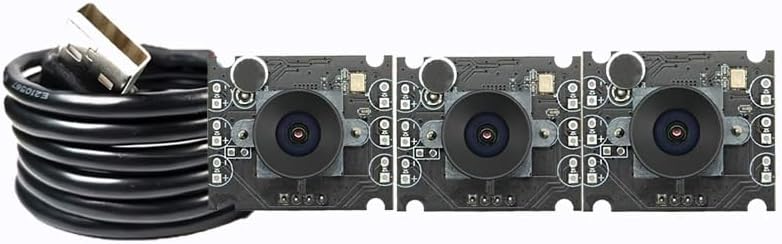

Module Size
30*25*22.6mm
Sensor
1/2.7-Inch OV2735
Pixel size
3.0*3.0µm
Resolution
1920 H x 1080 V
Output Format
MJPEG, YUV2
FOV
95 Degree
Focus Type
Fixed focus
Shutter Type
Electronic Rolling shutter
Audio Input
Digital One-way Audio
Output and Power Supply
High Speed USB2.0
Interface
4 PIN 2.0MM Socket
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
Defective 1.0 meter USB cable
Format
Resolution
Frame Rate (USB2.0)
MJPEG
1920x1080 (1080P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
YUY2
1920x1080 (1080P)
5FPS
1280x720 (720P)
5FPS
640x480 (VGA)
30FPS
Pin No.
Signal Name
Description
1 VCC
5V Power
2 DM
USB2.0 Data
3 DP
USB2.0 Data-
4 GND
GND
Operating Voltage
USB DC 5V supply
Operating Current
160mA
Operating Temperature
-20 ~ 60
Storage Temperature
-20 ~ 85
Humidity
80 ~85%
==========
High-concerned chemical : None
Package : Yes
Model Number : WN-HD1080-K111L V2.0
Compatible Camera Style : Camcorders
Package : Yes
Model Number : WN-HD1080-K111L V2.0
Compatible Camera Style : Camcorders
Function : Built-in Mic Face Recognition
Sensor : 1/2.7-Inch OV2735
