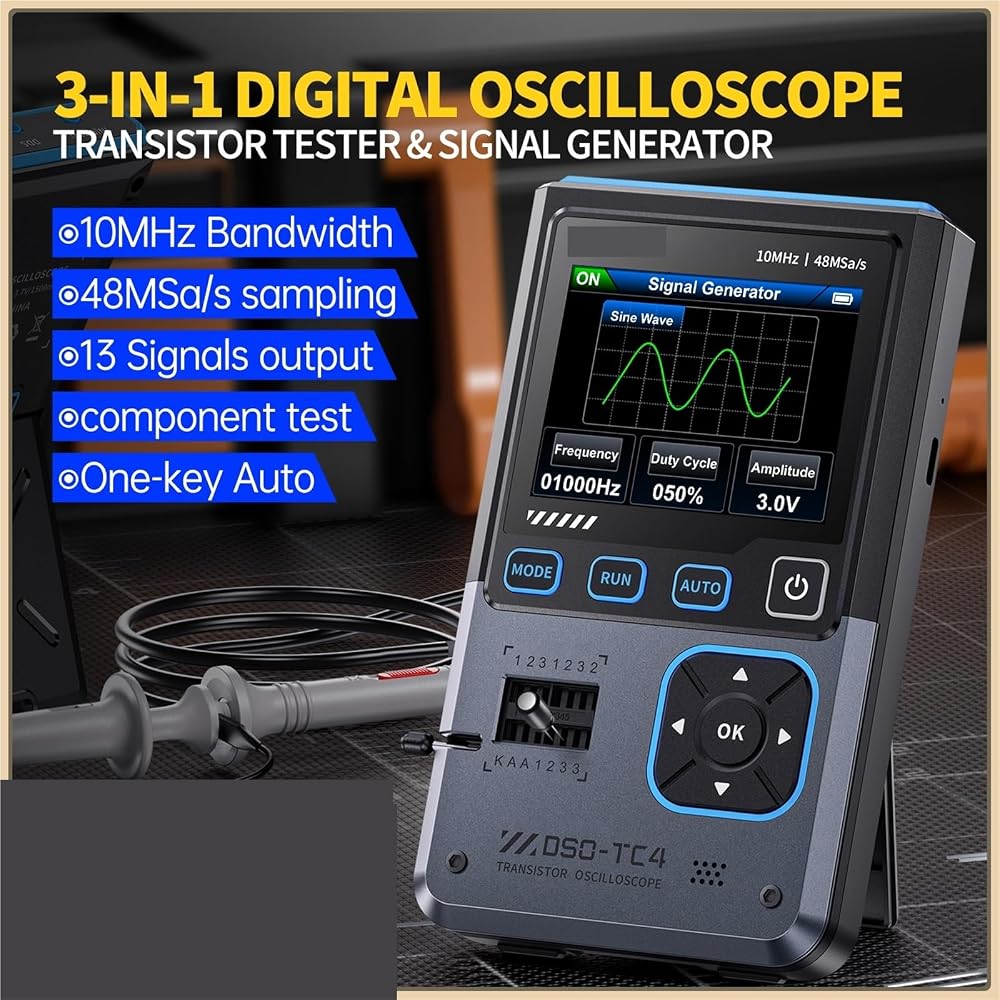

Oscilloscope functions:Sampling rate: 48MSa/s
Analog bandwidth: 10MHz

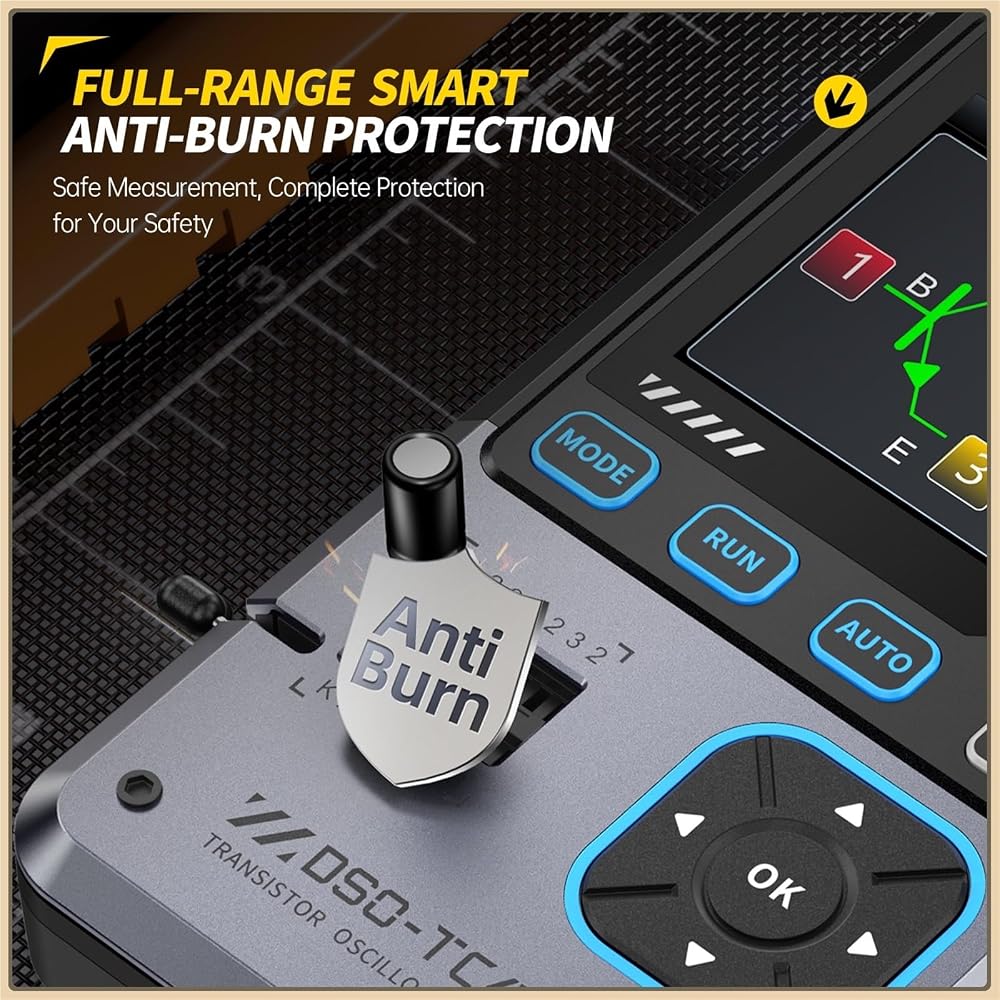

Voltage protection: ±400V

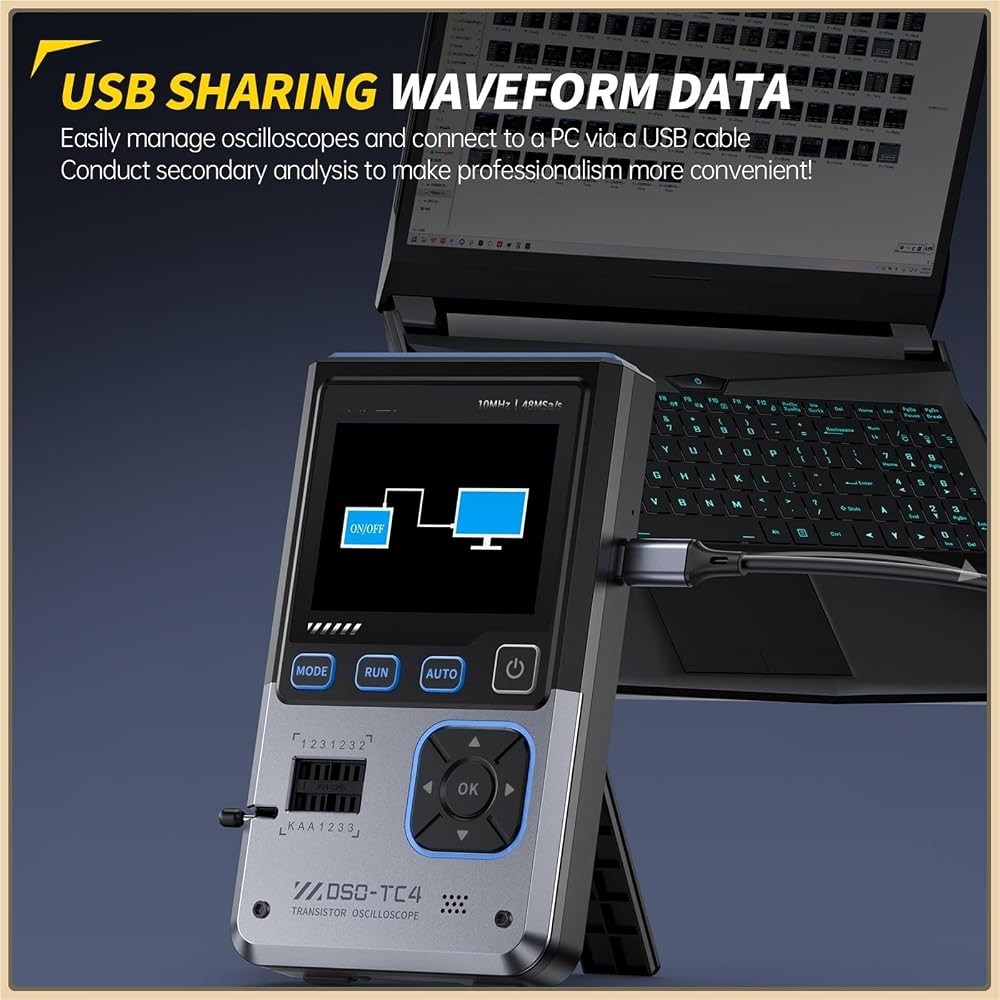

Waveform storage: supports screenshot saving and viewing, which is convenient for dataanalysis

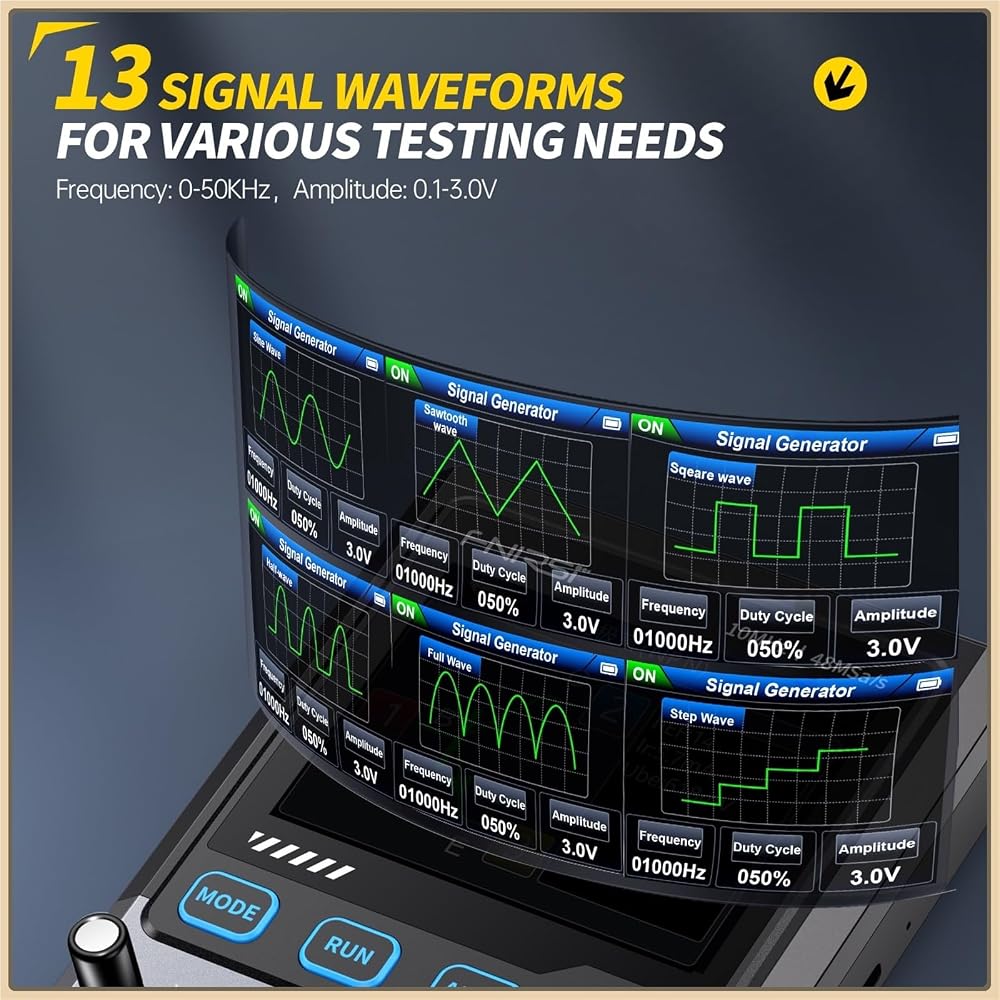

Signal generator function:Supports 13 waveform outputs, frequency range 0-50KHz, output voltage adjustable 0-3v.
Output parameters (frequency, amplitude, duty cycle) are adjustable, flexible to meetvarious needs
Transistor function:High efficiency: Automatically identify the type and pin arrangement of the testedcomponent, simplify the operation process, and improve test efficiency
Diverse categories: Detect and analyze the performance and characteristics ofsemiconductor components such as transistors, diodes, triodes, field effect (FET), etc.

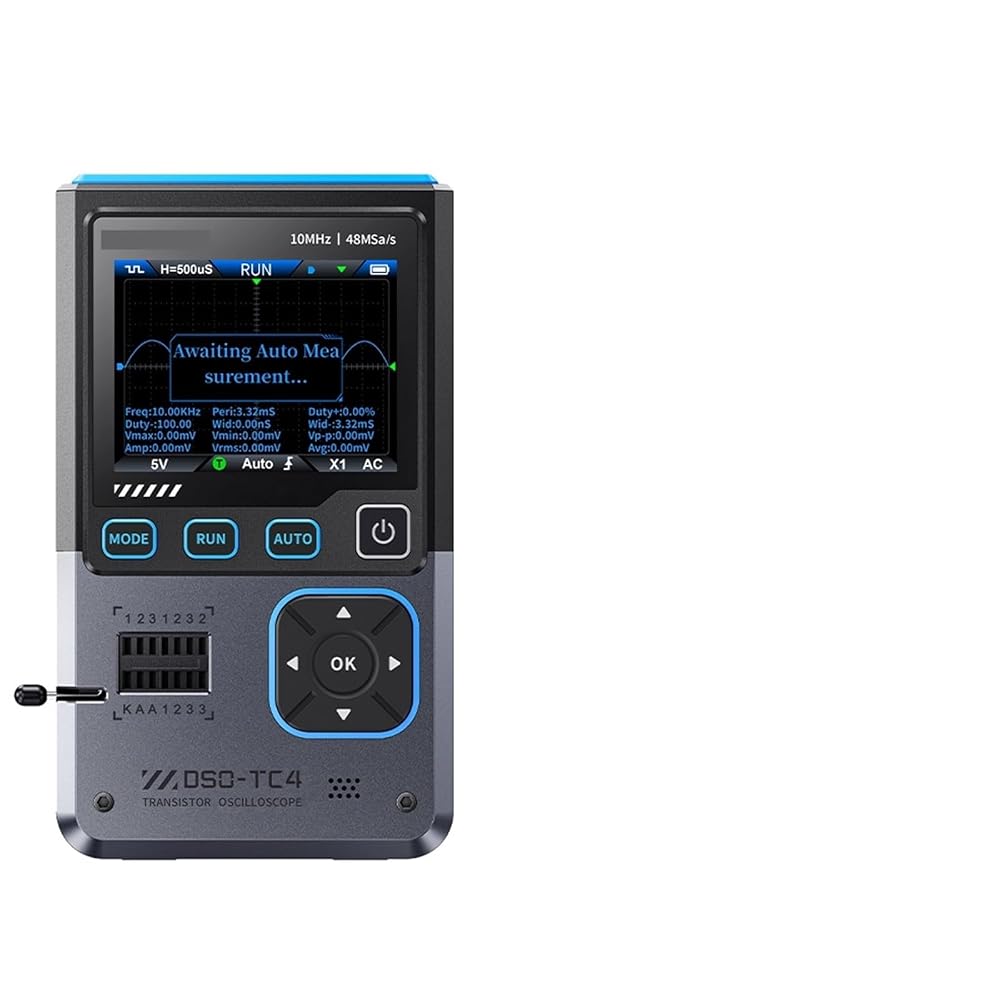

Portable design:Equipped with a 2.8-inch TFT color screen, the picture is clear and intuitive
Built-in high-capacity rechargeable lithium battery (1500mAh), standby time 4 hours
Small and light, suitable for mobile use.
FNIRSI-DSO-TC4 is committed to providing users with powerful, flexible functions and portable operation experience, and is an ideal tool for maintenance and R&D work
Product Parameters
31 Oscilloscope ParametersRealTime Sampling Rate:48MSa/s
Analog Bandwidth:10MHz
Input Impedance:1M
Coupling Mode:AC/DC
Test Voltage Range:1:1 Probe: 80Vpp (+40V)
10:1 Probe: 800Vpp (+400V)
Vertical Sensitivity:10mV/div~10V/div (X1 range)
Vertical Displacement:Adjustable with indication
Time Base Range:50ns~20s
Trigger Mode:Auto/Normal/Single
Trigger Type:Rising edge, Falling edge
Trigger Level:Adjustable with indication
Waveform Freeze:Yes (HOLD function)
Automatic Measurement:Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle
3.2 Componet Tester ParametersTransistor Test:Support
Zener Diode Test:0.01~4.5V
Field-Effect Transistor (FET) Test:JFET, IGBT, MIOSTET
Capacitor Test:25pF~1000F
Resistor Test:0.01~50M
Inductor Test:10H~1000H
DS18B Test:Support
Test:Support
3.3 Signal Generator Parameters
Output Waveform Supports 13 waveform outputs
Waveform Frequency 0-50KHz
Square Wave Duty Cycle 0-100%
Waveform Amplitude 0.1V-3.0V
3.4 Basic ParametersModel:DSO-TC4
Languages:,English,Português,Español,Pycc
Screen:2.8-inch TFT Color Screen
Backlight:Brightness Adjustable
Power Supply:TYPE-C(5V/1A)
Battery:3.7V/1500mAh
Size:90x142x27.5mm
Product Weight:186g
Package Included:1 x DSO-TC4 Host
3 x Test Hooks
1 xP6100 Probe
1 xAlligator Clip
1 x Type-C ChargingCable
1 xAdapter
1 xUser Manual
1 xPackage Box
==========
Battery Included : Yes
High-concerned chemical : None
IS Battery Demountable : Yes
Model Number : DSO-TC4
Certification : ,FCC,weee

Real Time Sampling Rate : 48MSa/s
DIY Supplies : Electrical
Band Width : 10MHz
Digital Channels : 1
Display Size : 2.9 Inches & Under
Model : DSO-TC4
Channel : Single Channel
Input Impedance : 1M
Coupling Mode : AC/DC
Time Base Range : 50ns~20s
Trigger Mode : Auto/Normal/Single
Trigger Type : Rising edge, Falling edge
Trigger Level : Adjustable with indication
Waveform Freeze : Yes (HOLD function)
Automatic Measurement : Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle
Transistor test : Yes
Diode test : Yes
Zener Diode test : Yes
FET test : JFET IGBT MOSFET
SCR test : Yes
Capacitor test : Capacitor
Resistor test : 0.01~50M
Inductor test : 10H~1000H
DS18B& test : Yes
Output Waveform : 13 waveform
Wave frequency : 0-50KHz
Square Wave Duty Cycle : 0-100%
Wave Amplitude : 0.1V-3.0V
Screen : 2.8'' TFT Color Screen
Power Supply : Type-C, 5V 1A
Battery : Built-in 1500mAH Lithium Battery

Procduct Size : 90x142x27.5mm
Weight : about 186g
