Description
This list not include the battery.Recommended 3.7V lithium battery, thickness less than 8mm, XH2.54 2pin connector
Features
3 power supply modes:
DC15-30V/USB-5V/Lithium battery (not included);
Voltage and current regulation can be switched with one button, independent wiring, and simultaneous output;
Current output 2, 3, 4 wire passive, active fully compatible, can be connected to analog passive 2-wire pressure sensor, temperature sensor; can also be connected to active 3, 4-wire , inverter, servo drive, flow Valve, etc.;
The output is short-circuit protected and the power supply is reverse-protected;
Multiple output ranges: 0-3.3/5/10/2-10/1-5...0-20/0-22/4-20m...
Multiple display modes: voltage and current/100.0% percentage/50.0H...
Coarse adjustment and double adjustment mode, the adjustment number of turns can be set;
Encoder knob 360 degree stepless adjustment, stable and
4-digit high-definition digital tube, two decimal points are adjusted with high precision, and the output can be calibrated;
Pluggable terminal block, easy to install and carry;
Power supply modes
DC15V-30V external power supply, can share 24V power supply of and other equipment;
Android (microUSB) universal interface, can be connected to charging treasure / charger / electricity
Brain USB port, etc.;
3.7V lithium battery power supply (this list not include battery);
Specification:
External power supply DC15-30V power 1W (not charging) / 5W (charging);
External microUSB- 5V current 0.2A (no charge) / 1A (charge);
Voltage output 0-10V adjustable, accuracy O.01V calibrated, maximum current 100mA, short circuit protection;
The current output is adjustable from 0-22mA, the accuracy is 0.01mA, the current sampling resistor is 10-500 ohms, and it can be short-circuited.
The digital tube displays 4 digits, two decimal places;
Encoder knob 1 pulse number 20
Wiring diagram
Package include

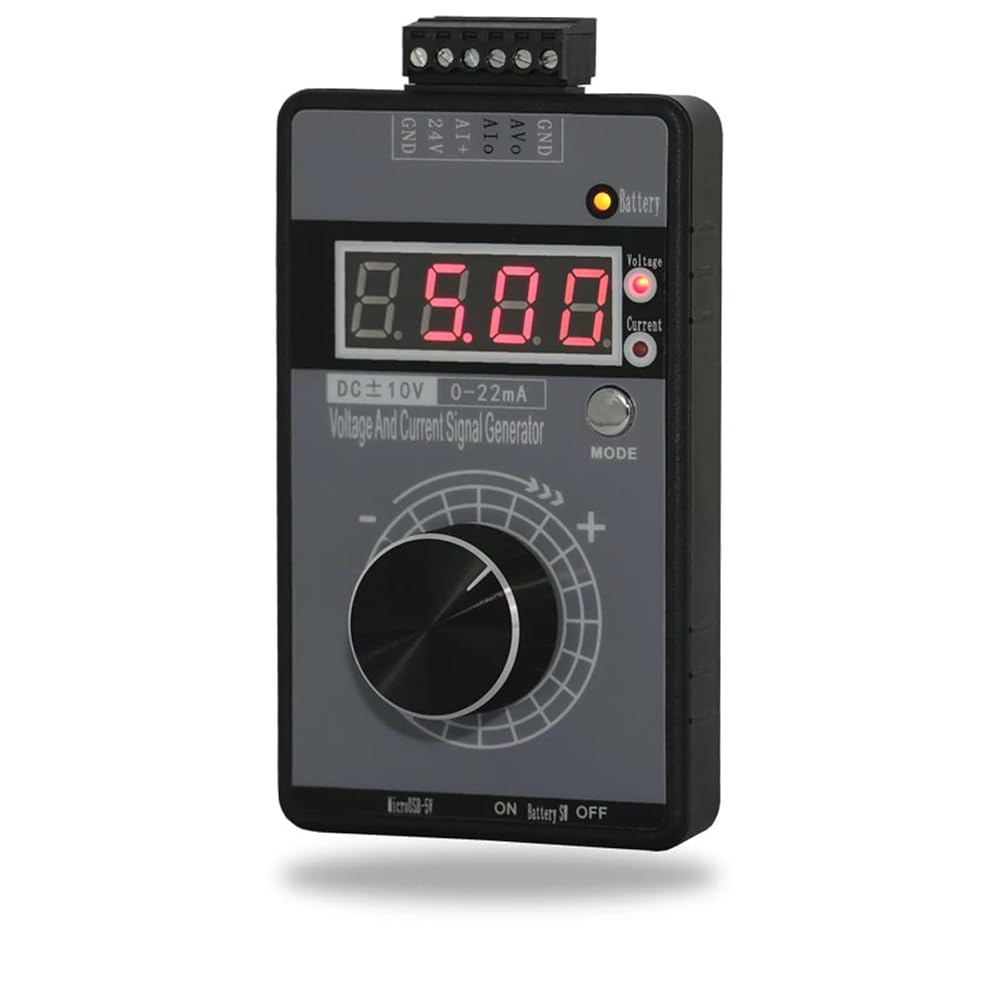

1 x Signal generator
==========
Battery Included : Yes
High-concerned chemical : None
Model Number : QH-VISG2-E
DIY Supplies : Electrical

Certification :
Display Size : 2.9 Inches & Under
