7. PWM output can set frequency and duty cycle respectively.

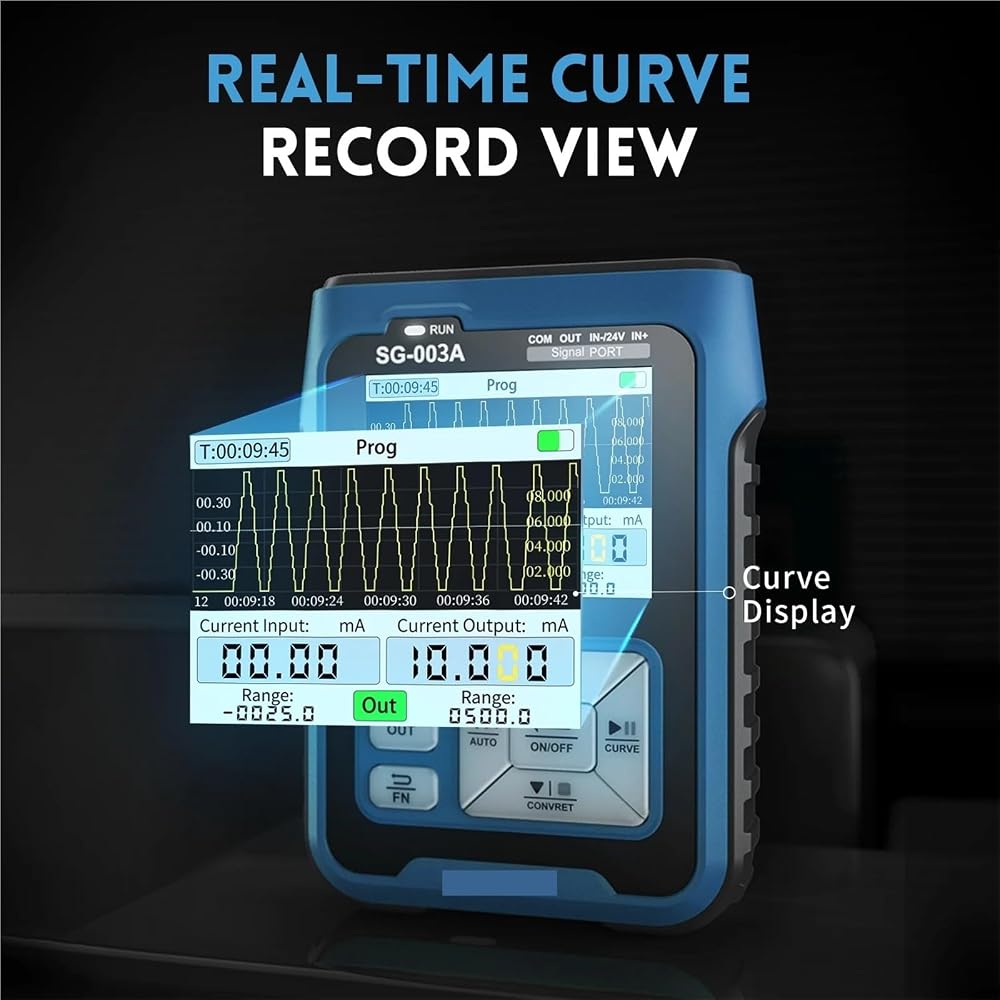

8. Real-time curve:Real-time observation of changes in voltage and current
9. It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA,Super long working hours
10. The high-definition TFT color screen makes the reading more eye-catching.The resolution is 240*320.Low power consumption,Maximum power consumption: 0.32W
Technical Parameters:
1. Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750;Precision:±(0.1%+0.005)
2. Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)
3. Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)
4. 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)
5. Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100;Precision:±(0.1%+0.05)
6. Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2M;Precision:±(0.1%+0.05)
7. PWM output (frequency):Range: 0-9999Hz
8. A sngle 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours;the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
9. Operating environment: 0 °C - 50 °C.
10. Internal reverse and overcurrent protection; protection voltage:30V
11. Output automatically
12. Size: 92mm*72mm*30mm
13. Weight:165g
Package include:

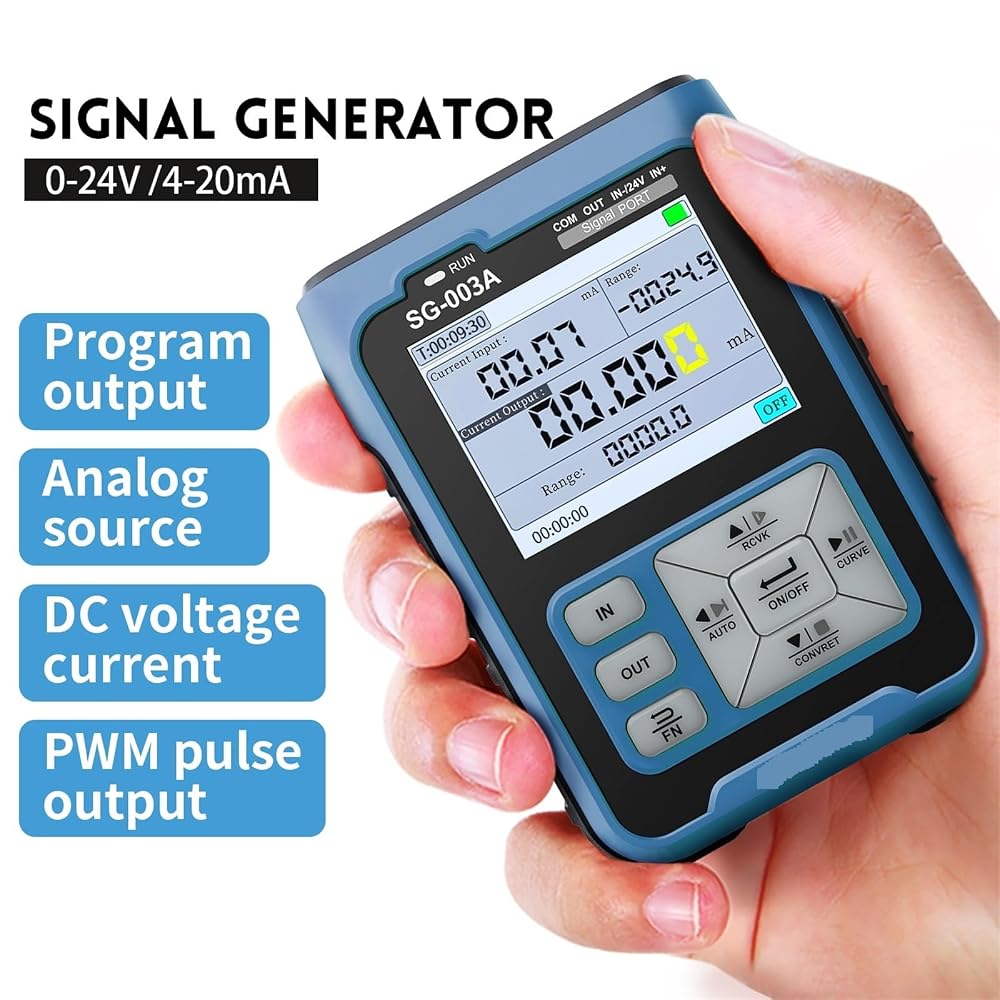

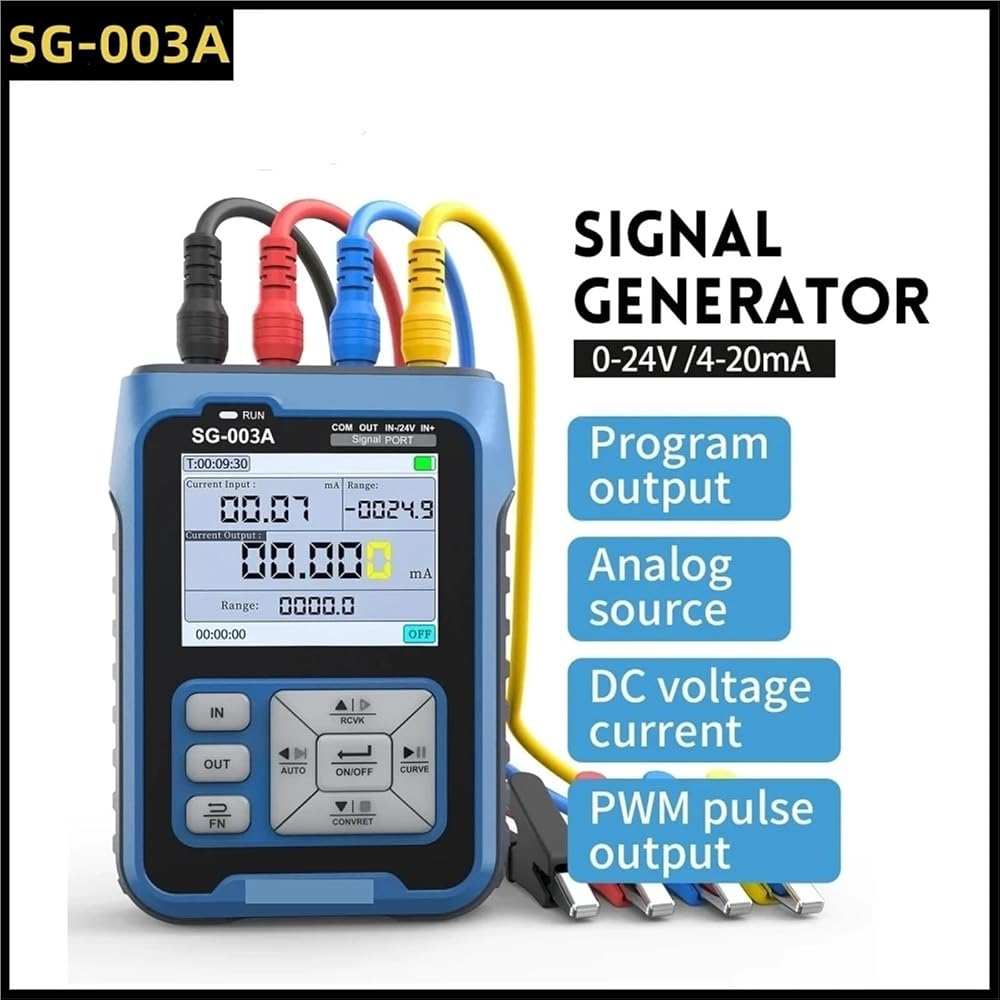

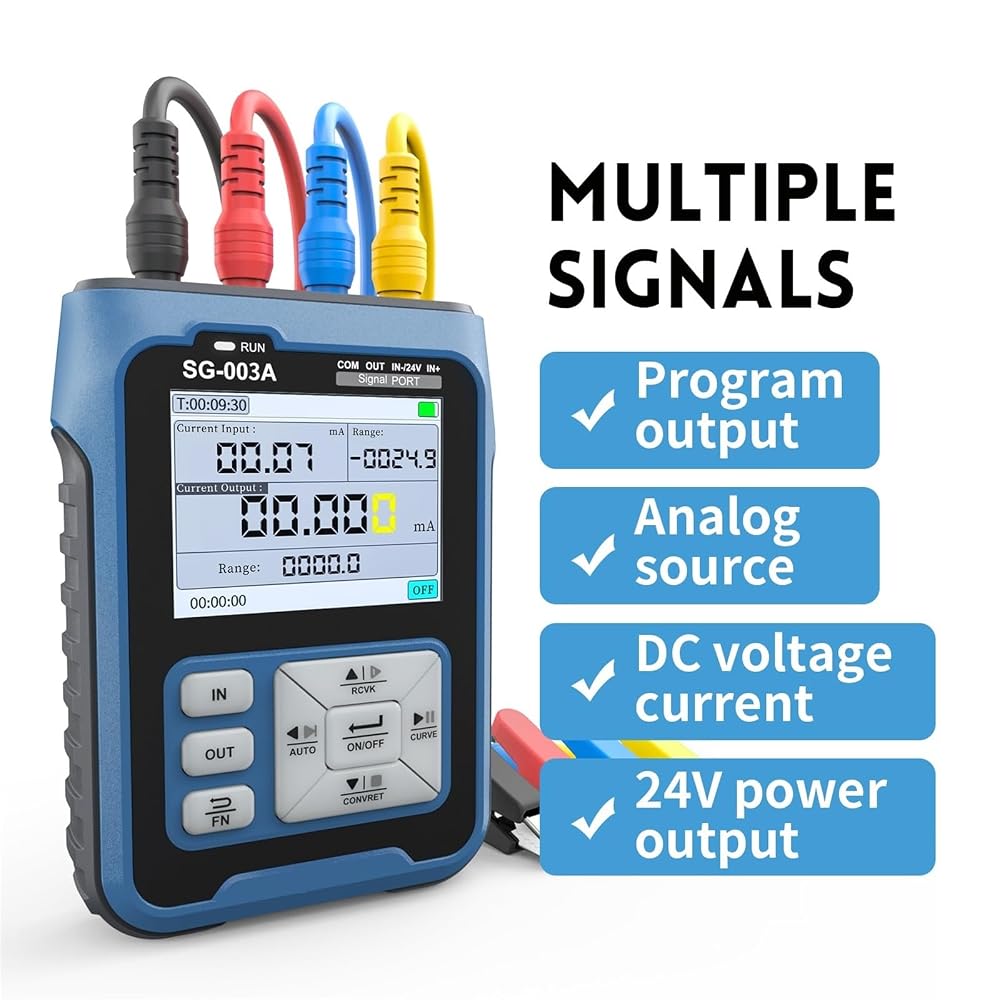

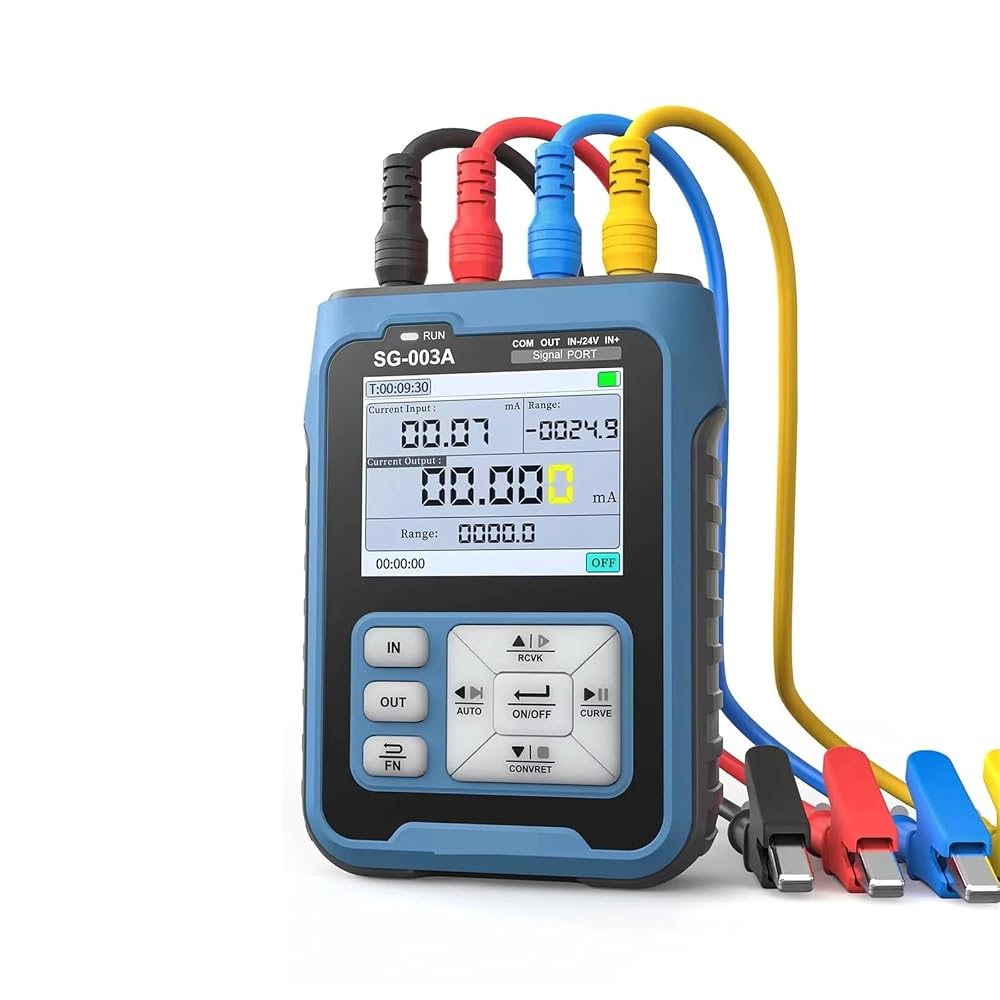

1* SG-003A Multifunctional Signal Generator Calibrator
4*Test Clip
1*Type-C Charging Cable
1*EU Charger
==========
Battery Included : Yes
High-concerned chemical : None
Model Number : SG-002
DIY Supplies : Electrical

Certification :
Display Size : 2.9 Inches & Under
Product Size : 9x7x3.8cm
Color : Black
Accuracy : 0.01mA, 0.01V
Output Range : 0-24mA, ±12V
Supplies : ElectricalDisplay
Power Supply : Rechargeable battery,Micro USB 5V , 15-30 VDC via wiring terminals
