Features
Pocket portable size: 120x76x30mm, put it into your pocket, save energy, save cost, easy to carry.
High accuracy 0.025%+1/2 digits, high reliability and stability.

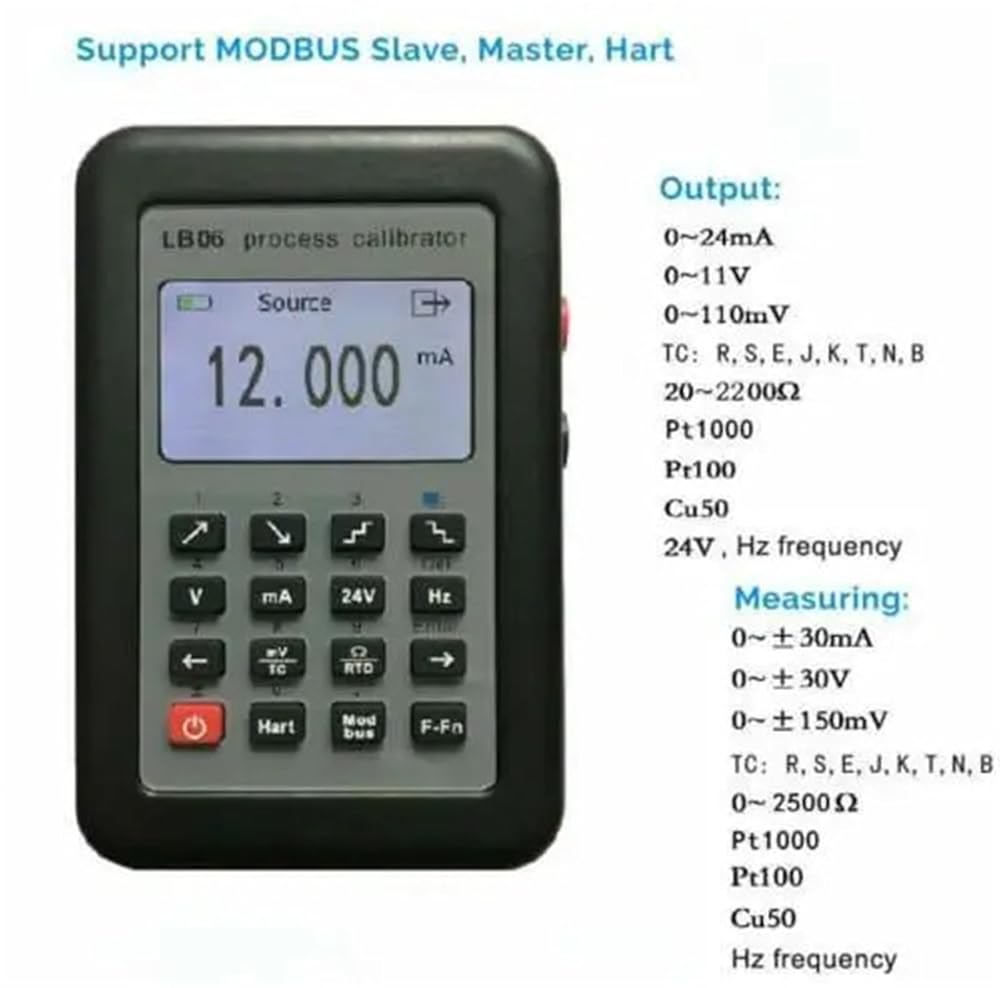

Signal output & simulation 04-20mA or passive, 0-11V, 0-110mV, 20-400, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, frequency, etc.
Measurement: 0-30V, 0-150mV, 0-999.9, R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, Ohm, frequency etc.
Support standard MODBUS Master, MODBUS Slave, Hart communicator/operator.
High resolution display, have back light for different lighting conditions, large screen clear display.
Fast response, no delay in signal simulation and signal testing or measurement.
Have charging and status indicator to check the battery status easily.
Can be used as signal generator, multifunction process calibrator and digital multimeter.
Have description in V, mV, mA, , TC, Step, , Hz, MODBUS, Hart keys, it enables user to operate it easily.
DC voltage, mV small signal, resistance signal, dc current, thermocouple, thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.
AD, DA, reference voltage, OP circuits are used to ensure all high accuracy, high performance and high stability
Using 4 units of and a quick-break fuse to protect the instrument from damaged by high voltage.
Parameters
Instruction of the display
What's in the package
1 x LB06 Generator
1 x Test lead
1 x USB cable
1 x Bag
1 x Manual
==========
Battery Included : Yes
High-concerned chemical : None
Model Number : LB06
DIY Supplies : Electrical

Display Size : 2.9 Inches & Under
