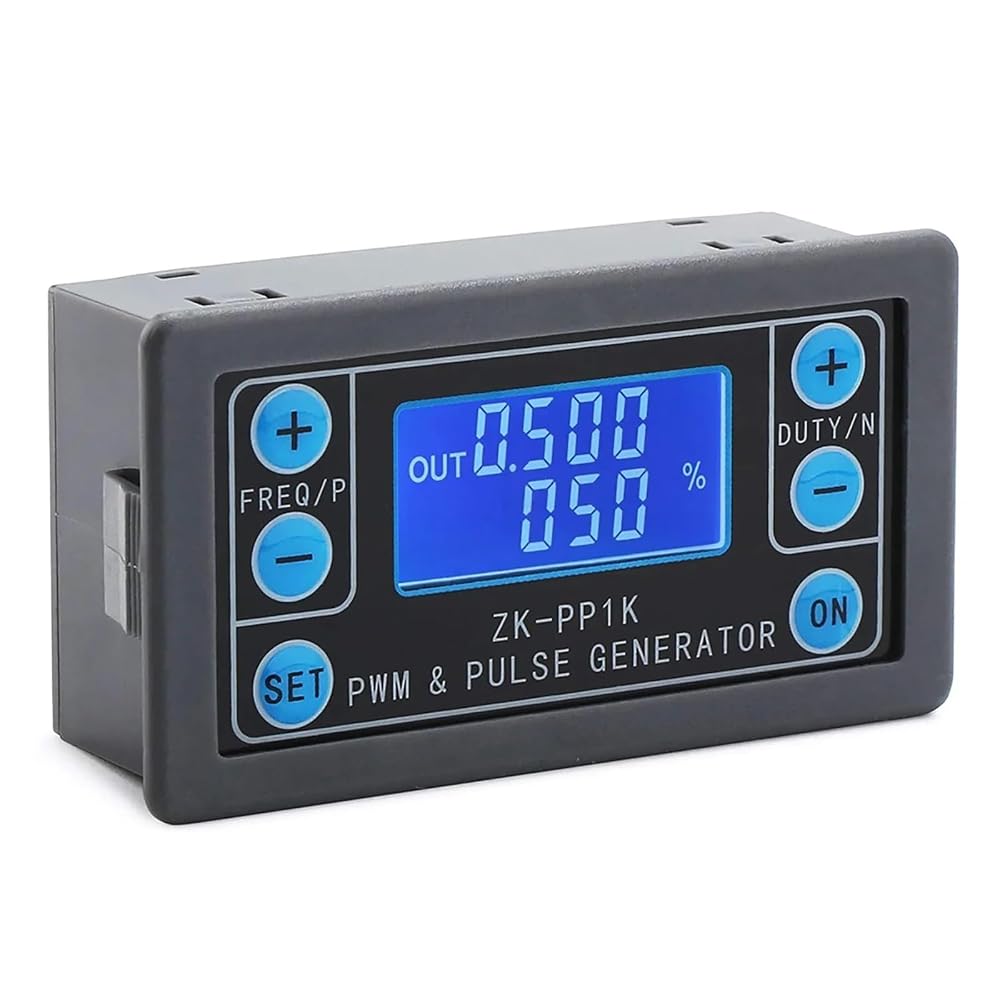

ZK-PP1K PWM Pulse Dual Mode Signal Generator PWM 1-Channel 1Hz-150KHz Frequency Duty Cycle Adjustable Square Wave Generator
Description:
This signal generator is a device that provides electrical signals at a variety of frequencies, square wave, pulse and output levels. It supports dual mode: PWM mode and PULSE mode. It is used as a signal or excitation for testing. Widely used in production practice and technology.
Feature:

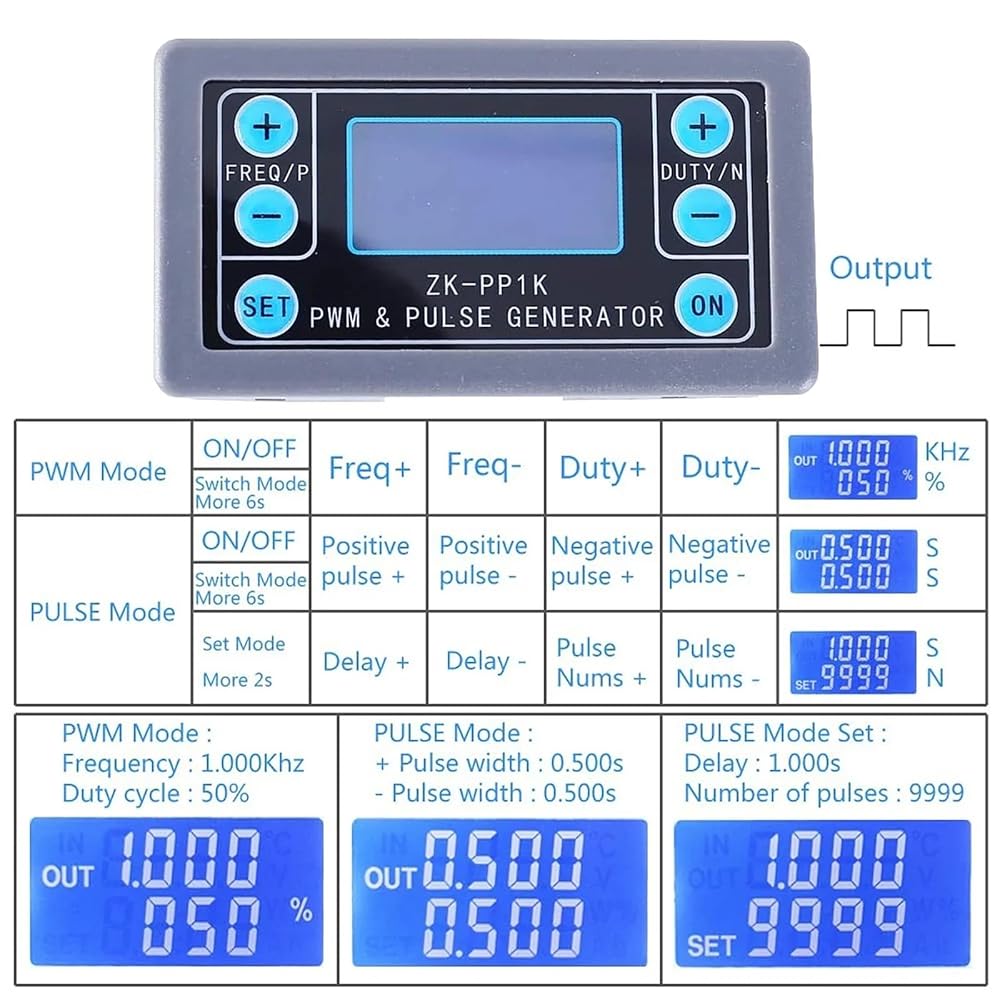

Dual mode: PWM mode and Pulse mode
high definition display
Support frequency adjustment
Support duty cycle adjustment
High precision detection
Support power-down memory function
1-Channel signal output
Support reverse protection
Support enabled/disabled output

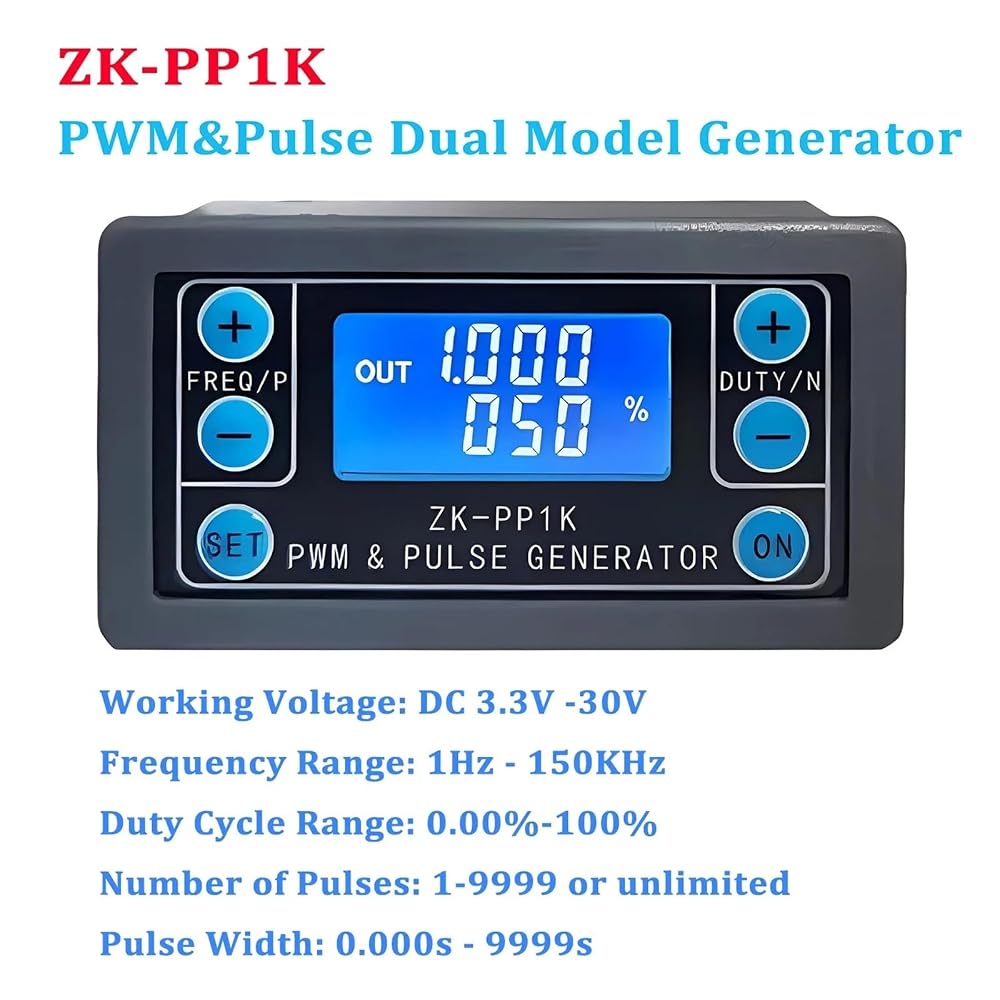

Parameter:
Model: ZK-PP1K
Work voltage: DC 3.3V -30V
Frequency range: 1Hz~150KHz
Frequency accuracy: 2%
Duty cycle range: 0.00%-100%
Number of pulses: 1~9999 or Infinite
Delay time: 0.000s~9999s
Pulse width: 0.000s~9999s
Time accuracy: 1ms
Output amplitude: Same to input voltage
Work Temperature: -20 -85
Work Humidity: 0% -95%RH

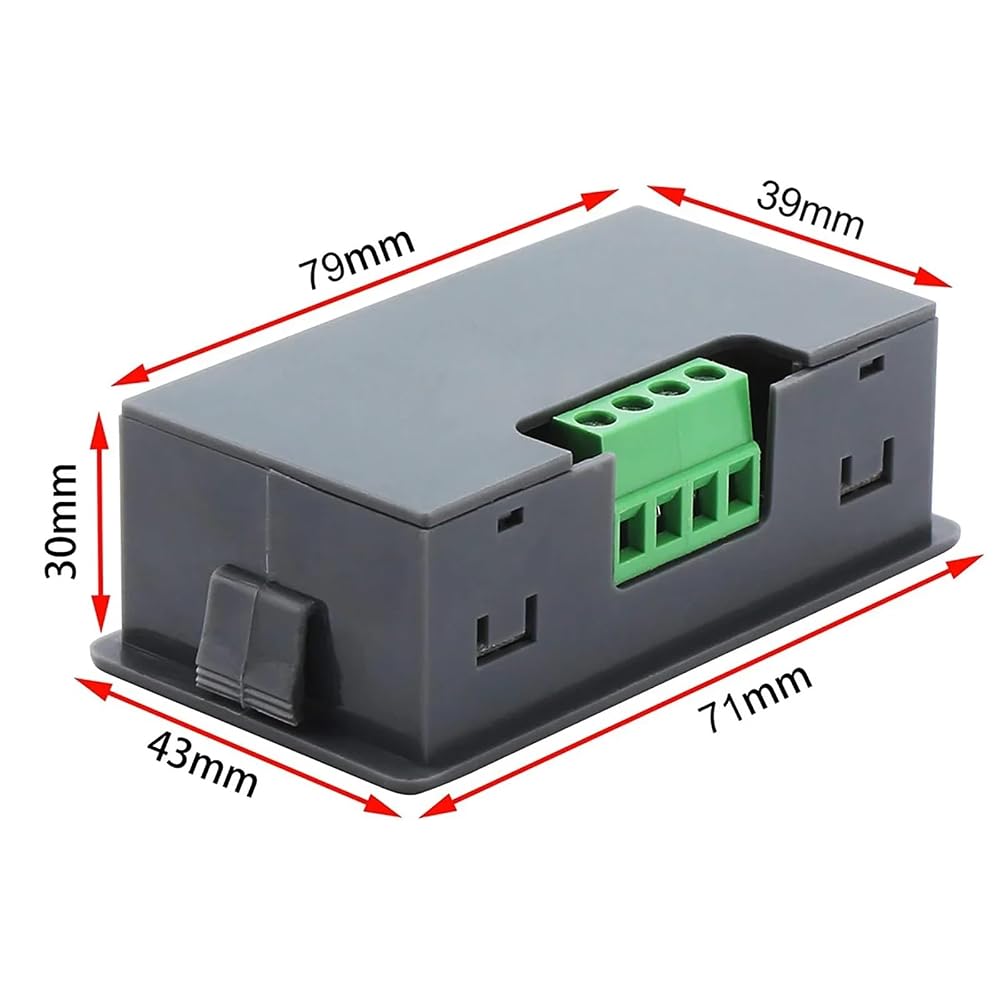

Size: 79*43*26m
Application Scenario:
1.PWM signal generator, square wave rectangular wave signal generator.
2.Used to generate a square wave rectangular wave signal, which is supplied to a DC motor or a stepper motor driver; Stepper motor, servo motor, electric
gripper, robot arm.
3.It can combine with the driver to realize dimming, speed regulation, control solenoid valve, etc. But it can't directly drive loads such as electric lights, motors,and solenoid valves.
Package Included:
1 x ZK-PP1K PWM Pulse Dual Mode Signal Generator
==========
Battery Included : No
High-concerned chemical : None
Model Number : ZK-PP1K Dual Mode Signal Generator
DIY Supplies : Electrical

Certification :
Display Size : 2.9 Inches & Under
