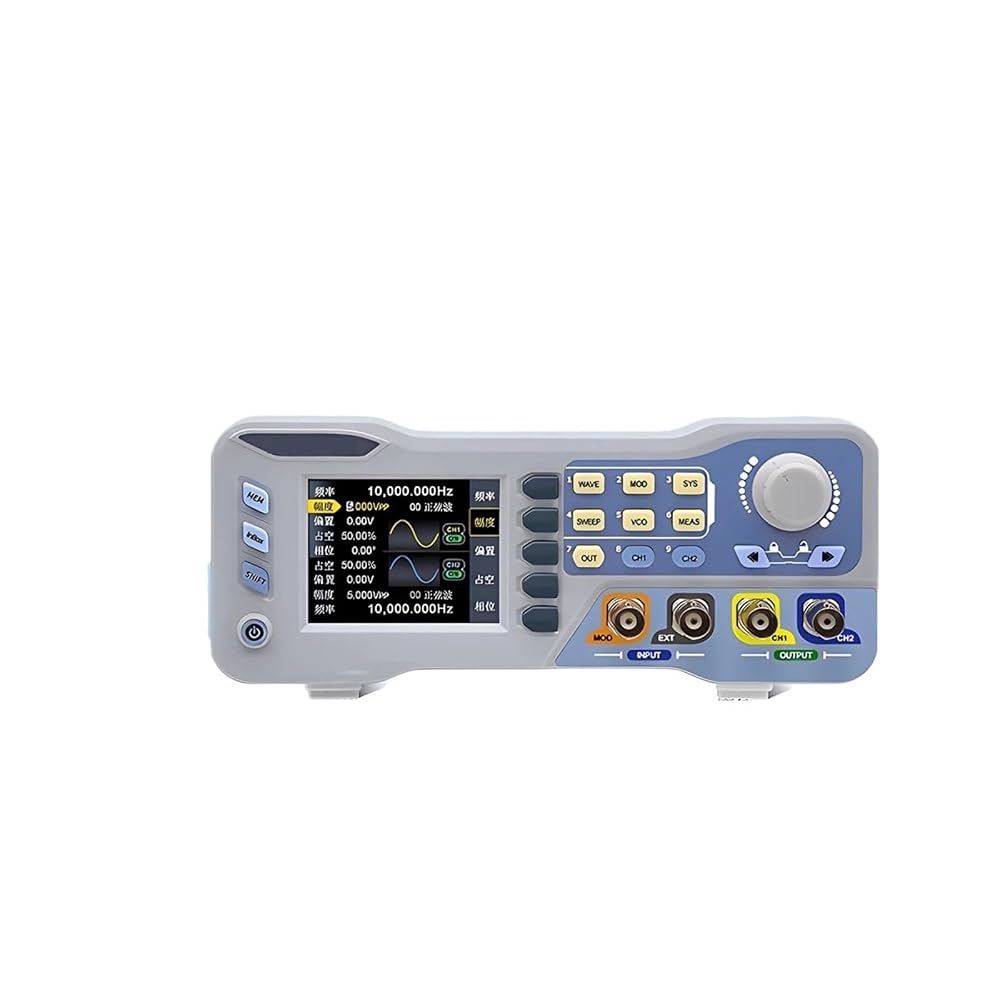

JDS8060 JDS8080 60/80MHz DDS Function Signal Generator Dual CH 275MSa/s 14bits Arbitrary Waveform Generator Frequency Meter Counter PulseDescription:JDS8000 series dual channel function / arbitrary waveform signal generator adopts a 2.8-inch color screen and comfortable silicone keys. It can output sine wave, square wave, triangular wave, pulse wave, DC signal and arbitrary waveform. It has the functions of waveform modulation, burst, digital adjustment of pulse width, scanning frequency, scanning amplitude, scanning duty cycle, VCO voltage controlled scanning, etc. it is equipped with a frequency meter and counter. Suitable for DIY, scientific research, teaching Product development, debugging and other scenarios.Features :1,The performance of the two channels is exactly the same, and the same or different waveforms can be output at the same time, with the phase difference of 0-359.99 ° freely adjustable;
2,Sine wave output frequency range: 1nhz-60mhz (jds8060) or 1nhz-80mhz (jds8080), Output amplitude: 1mVpp-25Vpp;
3,The sampling rate is up to 275MSa/s, the vertical resolution is 14bits*8192 points, and more waveform data can be obtained per unit time, thus making the waveform more accurate;
4,Modulation function: Both channels can output modulation waveform signals such as AM FM PM ASK FSK PSK;
5,Scanning function: scanning frequency, scanning amplitude and scanning duty cycle, with linear and logarithmic scanning modes;
6,VCO voltage control scanning: Controlling the frequency, amplitude and duty cycle of the output waveform through the change of the external voltage signal;
7,Pulse width modulation function: Digital adjustment of pulse width and pulse cycle time;
8,Burst function: It can be set to output waveform signals of 1-1048575 arbitrary cycles;
9,Arbitrary wave function: More than 160 commonly used arbitrary waveforms are built in the upper computer software, and arbitrary waveforms can be and downloaded to the signal generator with one click;
10,Measurement function: Equipped with 1hz-100mhz frequency meter and counter, with AC coupling and DC coupling modes;
11,Firmware update function: firmware can be obtained through firmware upgrade software to improve product performance;12,Mobile APP: Built-in chip, It can control and draw any waveform through mobile app;
13,Secondary development function: provide free communication protocol and computer software to facilitate programming control;
14,Multi level synchronization function: Two or more machines can output multi-channel waveform signals after being connected.
Specifications :
Model:JDS8060/JDS8080
Channel:Dual Channels
Sine wave frequency:1nHz-60MH/1nHz-80MHz
Sampling Rate:275MSa/s
Wave length:8192 points/channel
Waveform vertical resolution:14 bits
Wave type:Sine wave, square wave, pulse wave (duty ratio, pulse width and cycle time can be precisely set), triangle wave, rising ramp, falling ramp, CMOS wave, DC level, half wave, full wave, positive step wave, Inverse staircase wave, exponential rise, exponential fall, Lorentz pulse wave, multisonic wave, random noise wave, trapezoidal pulse wave, Sinker pulse wave, and 99 sets of user-defined waveforms.
Square wave:1nHz-15MHz
Triangle wave:1nHz-15MHz
Frequency resolution:1nHz
Rise/Fall Time:20nS
60MHzFrequency80MHz,2mVpp~3.6Vpp
Amplitude resolution:1mVpp
Amplitude stability:± 1% ±1mVpp (@ 1kHz,>10mVpp)
Amplitude flatness:Frequency10MHz:±1%(0.1dB)
Offset range:-9.99V-12.00V
Offset resolution:0.01V
Phase adjustment range:0°-359.99°
Resolution:0.01°
Output impedance:50 (typical)
Modulation type:AM,FM,PM,ASK,FSK,PSK,PWM
Trigger :Manual burst, CH2 burst, external burst (AC), external burst (DC)
Measurement function:Frequency, positive and negative pulse width, period, duty cycle
Counter range:0-4294967295
Sweep function:Sweep frequency, sweep amplitude, sweep duty
Sweep mode:Linear, logarithmic
VCO function:Frequency control, amplitude control, and duty cycle control
Running mode:Debugging,normal
Product packaging size:300*240*150mm
Product weight:1.35kgPacking Included :
1 x JDS8000 Signal Generator Host
1 x USB Data Cable
1 x Power Cable
2 x BNC to Alligator Clips Test Lead
1 x BNC Male Test Lead
1 x User Manual
Equivalent dual channels can output the same or different function signals or
arbitrary waveform signals at the same time; All parameters can be adjusted
independently. The phase difference between the two channels is 0-359.99 degrees
adjustable.
You can use sine wave, square wave, triangle wave, or arbitrary wave to generate
pulse train, and the number of pulse period is adjustable between
1-1048575.
Pulse width adjustment range:.020us-4s
Pulse period adjustment range:0.02us-40s
The pulse bias is adjustable; the pulse amplitude is
adjustable, accurate to 0.01V.
With independent operation interface, the function is clear; there is an independent
control switch, which is convenient for control.
The pulse width and pulse cycle time of the pulse wave can be digitally adjusted
precisely and can realize the pulse waveform wide range of precise setting, no
jitter output.
More types of modulated waveforms and more detailed modulation: the
information of the signal generator is processed and loaded onto the carrier.
The process of bringing it into a form suitable for channel transmission is the
technique of changing the carrier wave with the signal.
The frequency, amplitude and duty cycle of the output waveform can be controlled by
an external analog voltage signal to realize the voltage-controlled sweep frequency,
sweep amplitude and sweep duty cycle, which is widely used in the industrial
debugging process.
Measuring the frequency of the waveform signal and calculating the number of cycles
of the waveform;
After downloading and installing the APP, connect the instrument through ,
you can view all relevant data on the APP, and set all functions through the mobile APP.
Instrument control: all functional operations are intuitively displayed in the software
interface, so that users can quickly adjust the functional parameters of the instrument
and greatly improve the working efficiency of the instrument.
Arbitrary waveforms can be drawn using PC software; arbitrary waveform CSV table data can be imported and exported using mobile APP; secondary development can be turned into control by using communication protocols;
Both the PC software and the mobile APP can complete all the operation settings of the machine, making your use more convenient;
1.Signal generator 2.power cable
3.BNC male test lead 4.USB data cable
5.BNC to alligator clips test lead 6.Quick guide
==========
Battery Included : No
High-concerned chemical : None
Model Number : JDS8060/JDS8080
Display Size : 2.9 Inches & Under
DIY Supplies : Electrical

Certification : ,FCC,pse
Type : DDS Digital Signal Generator
Channel : Dual Channels
Waveform : Sine/Square/Pulse/Ramp/Noise/DC/ Arbitrary
Sine Frequency : 60MHz/80MHz
Square Wave : 1nHz-15MHz
Triangle Wave : 1nHz-15MHz
Modulation Function : AM/FM/PM/ASK/FSK/PSK/PWM/Burst
Sampling Rate : 275MSa/S
Wave Length : 8192 Points
Vertical Resolution : 14 bits
Sweep Mode : Logarithmic/Linear
Function 1 : Function Signal Generator
Function 2 : Arbitrary Waveform Generator
Function 3 : Frequency Meter
Function 4 : Pulse Generator
Function 5 : Measuring and Counter
Other Function 1 : Modulation Function
Other Function 2 : Burst Fuction
Other Function 3 : Voltage Controlled Regulation
Other Function 4 : Mobile APP Control
