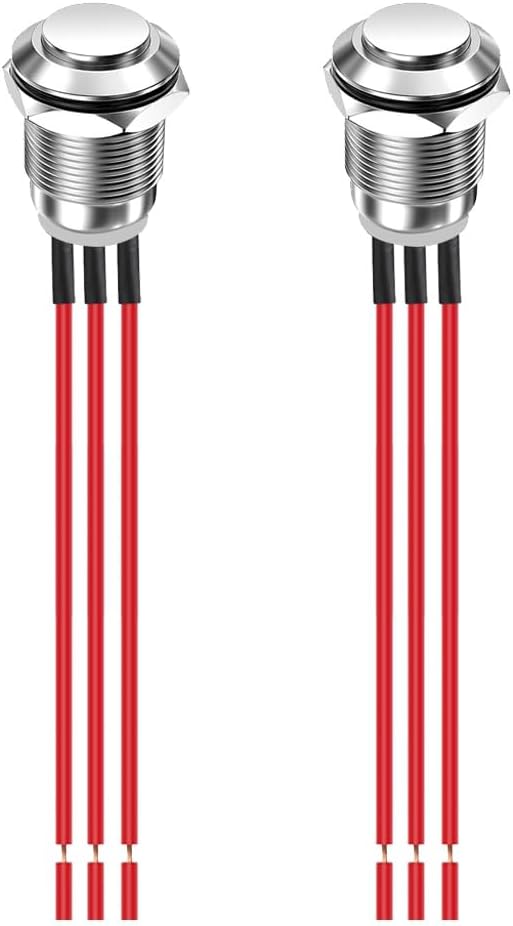

Gebildet 2Pcs Prewired 12mm Waterproof Momentary Metal Push Button 3pin NO/NC Push Button On Off 1A 12V/24V/125V/250V AC (High Head)

KWD 0
Size
– 1 +

Special Features

  • This push button has 3pin with NO and NC contact
  • Metal Push Button with IP65 protection: waterproof and rustproof, can be used in wet or dusty environment.
  • Mounting hole diameter: 12mm, Push buttons hole thread: 0.75mm.
  • Momentary Type: Push & Hold-ON, Release-OFF.
  • Used widely: Great for Horn Button, PC Power button ect.

Description

* Product Name: Waterproof and Rustproof Monmentary Push Button
* Material: nickel plated brass+stainless steel
* Head Shape: high head
* Head Diameter: 9/16"""" (14mm)
* Mounting Hole Size: 1/2"""" (12mm)
* Push buttons hole thread: 0.75mm
* Terminal Type: 3 Pins, Soldering
* Operation Type: Momentary
* Button Max Rating: 1A/12V/24V/125V/250VAC
* Protection Level: IP65, IK10
* Operation Temperature: -20℃ to +55℃
* Contact Resistance: ≤50mΩ
* Insulation Resistance: ≥1000mΩ
* Mechanical life: >500,000 times
* Electrical life: >50,000 times
