  • Ultra-Smooth Sliding: Combines a precision gear guide with a dovetail groove for stable, jitter-free motion and pinpoint positioning accuracy.
  • Durable Build: Crafted from lightweight yet robust black-anodized aluminum alloy—resistant to scratches, wear, and impacts for lasting performance.
  • Broad Compatibility: Engineered for optical instruments, metrology devices, semiconductor tools, microscopes, imaging rigs, and industrial machinery across multiple sectors.

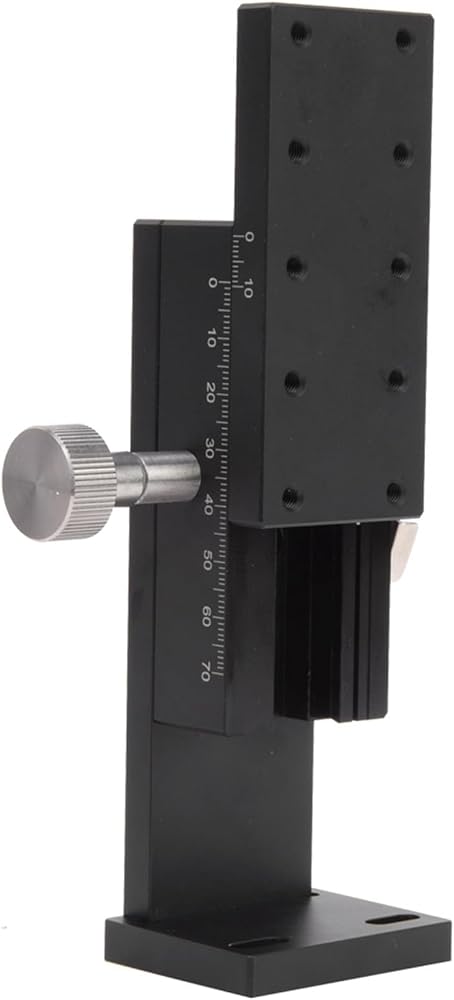

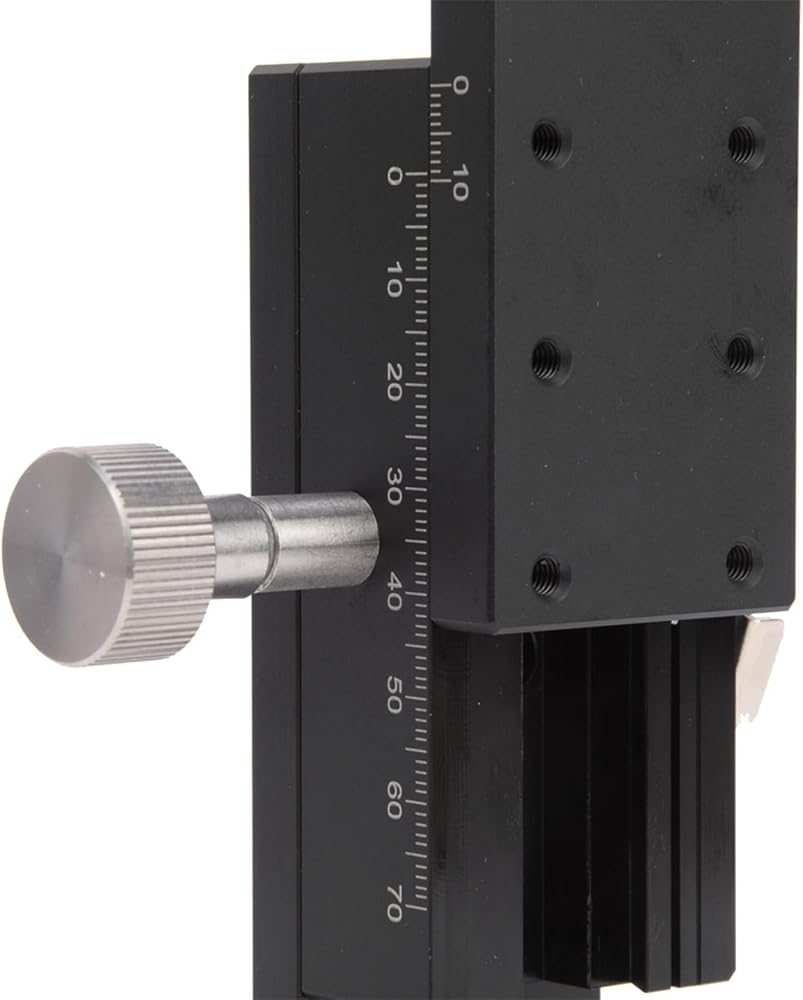

  • Intuitive Control: Turn the ergonomic knob to drive smooth Z-axis travel; rounded R-corners enhance safety during handling and setup.
  • Micron-Level Precision: Delivers 0.01mm resolution and tight parallelism specs (0.06mm table flatness, 0.1mm/60mm motion linearity) for exacting alignment tasks.

Description

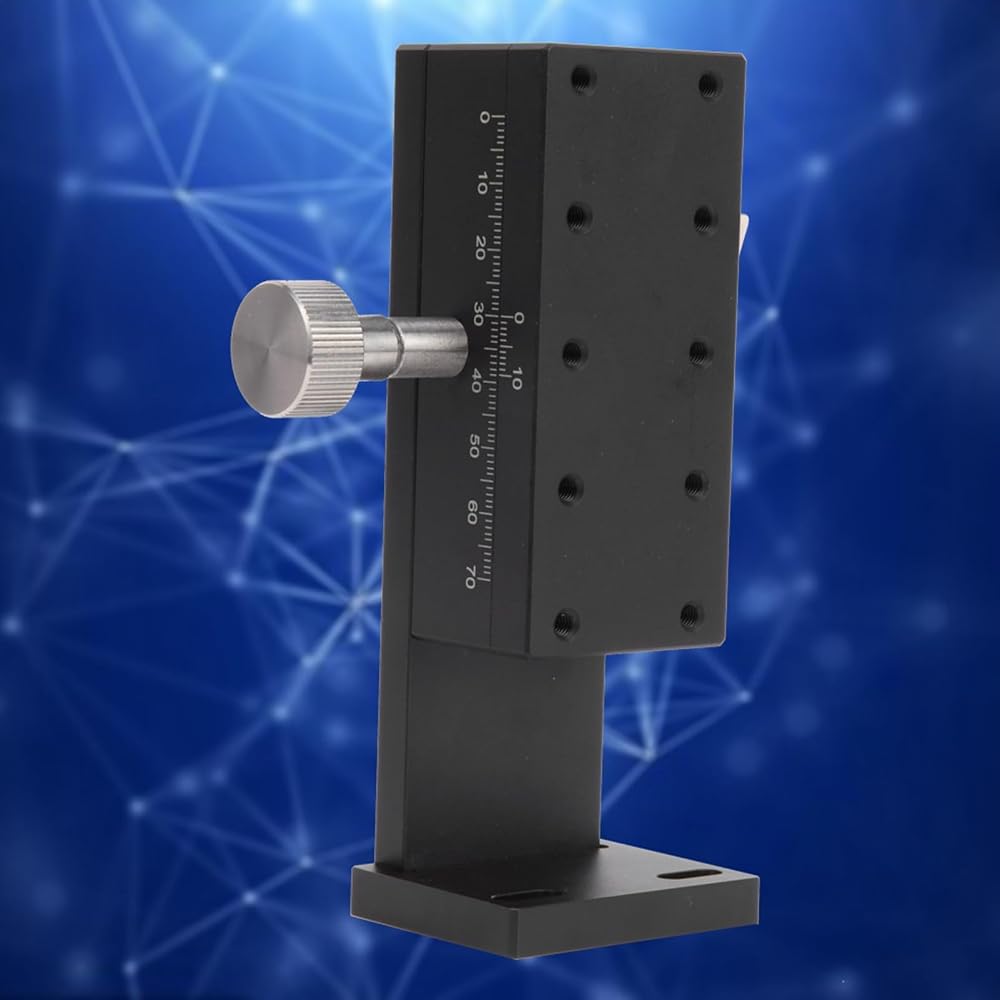

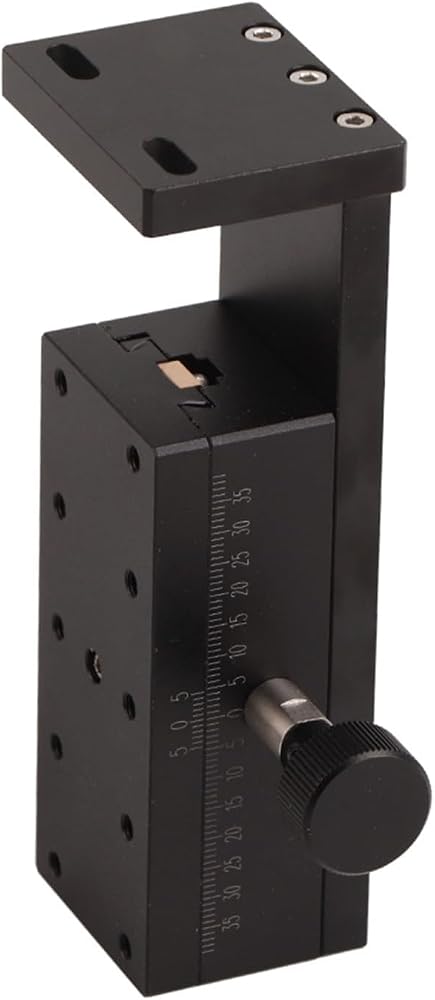

Type: Manual Trimming Platform
Model: SPWZ40-90

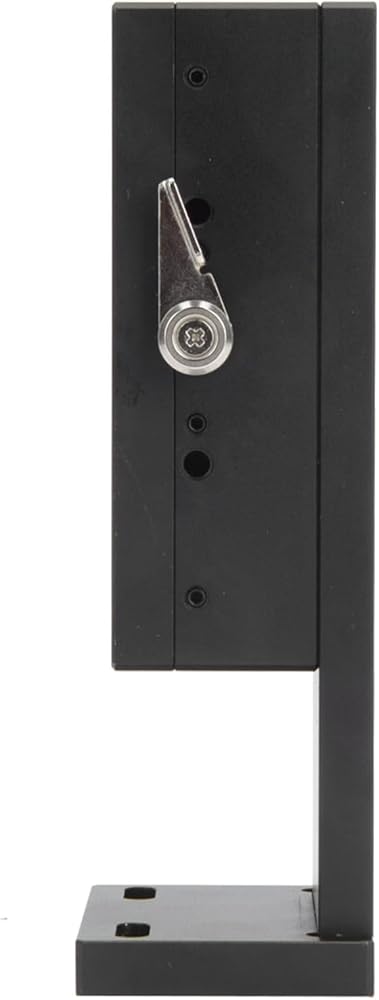

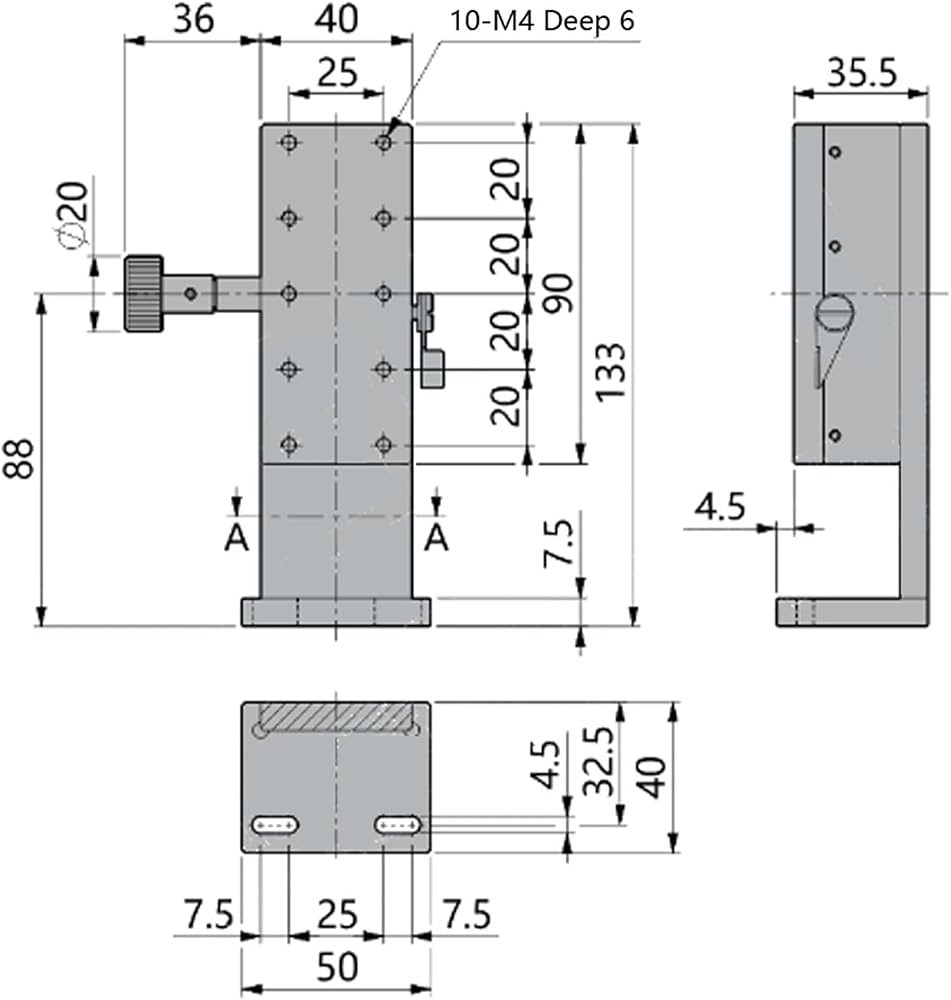

Table Dimensions: ~40 x 90mm (1.6 x 3.5in)
Total Height: ~133mm (5.2in)
Motion Axis: Z-direction only
Construction: Black-anodized aluminum alloy
Drive Mechanism: Manual knob-driven gear-and-rack system
Sliding System: Gear-guided movement
Rail Design: Dovetail groove

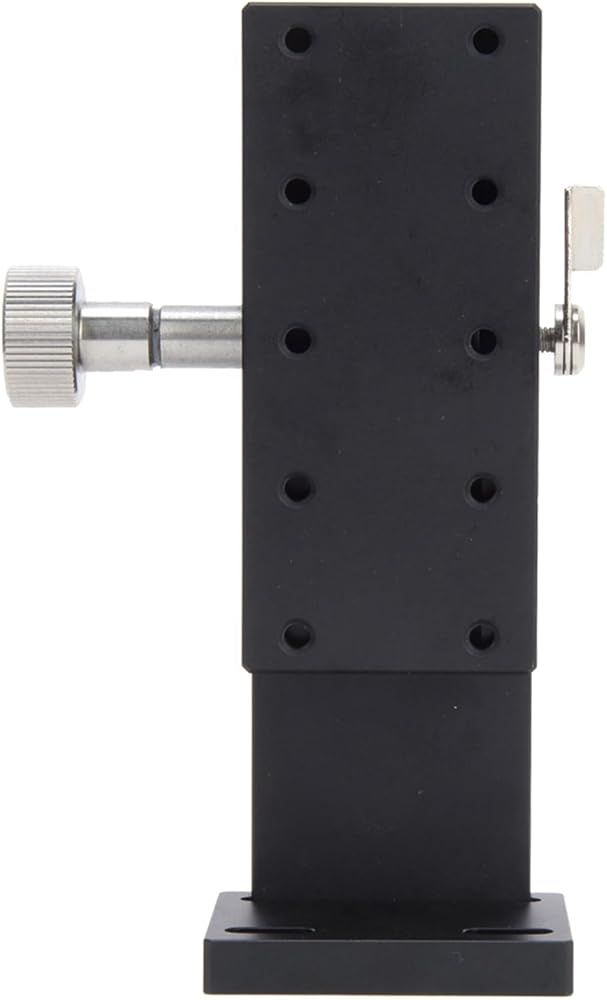

Mounting Holes: 10 threaded holes
Hole Diameter: ~4mm (0.16in)
Hole Depth: ~6mm (0.24in)
Max Load: 98N (10kgf)
Travel Range: ±30mm
Resolution: 0.01mm
Table Parallelism: 0.06mm
Motion Parallelism: 0.1mm per 60mm
Ideal For: Optical instruments, measurement tools, semiconductor equipment, test rigs, microscopes, camera gear, handling systems, machining setups, printers, and more.

What's Included:
1 x Manual Trimming Platform

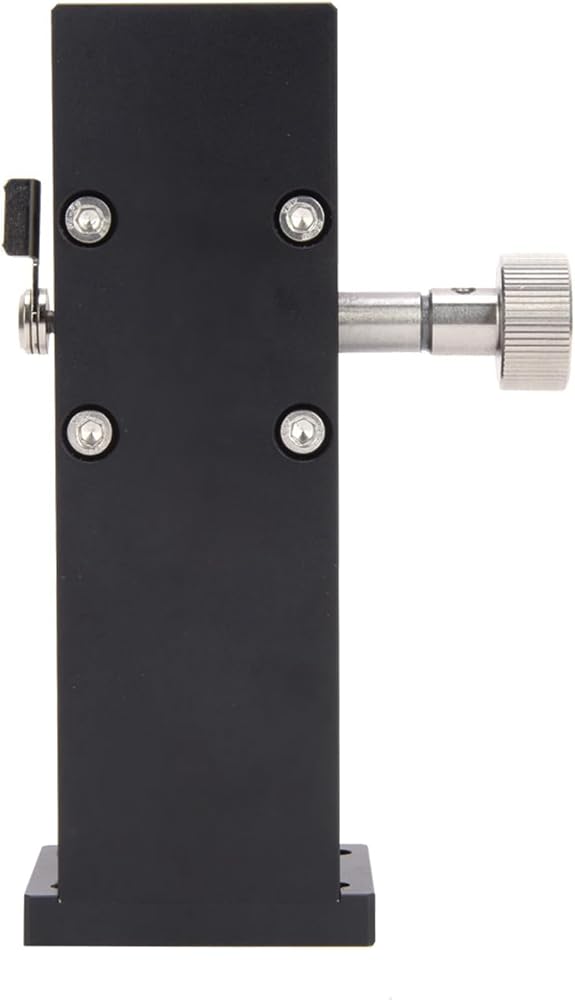

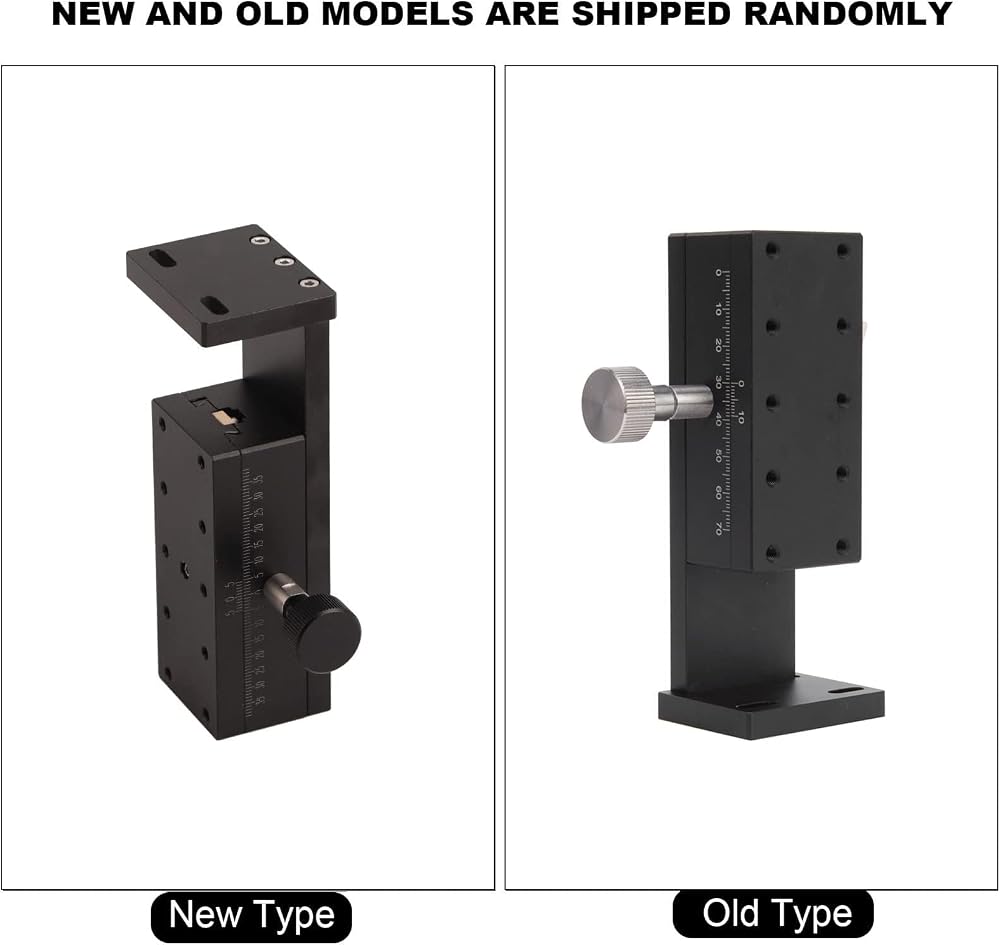

Note: New and old versions of this product are shipped at random—please confirm you're comfortable with either before ordering.
