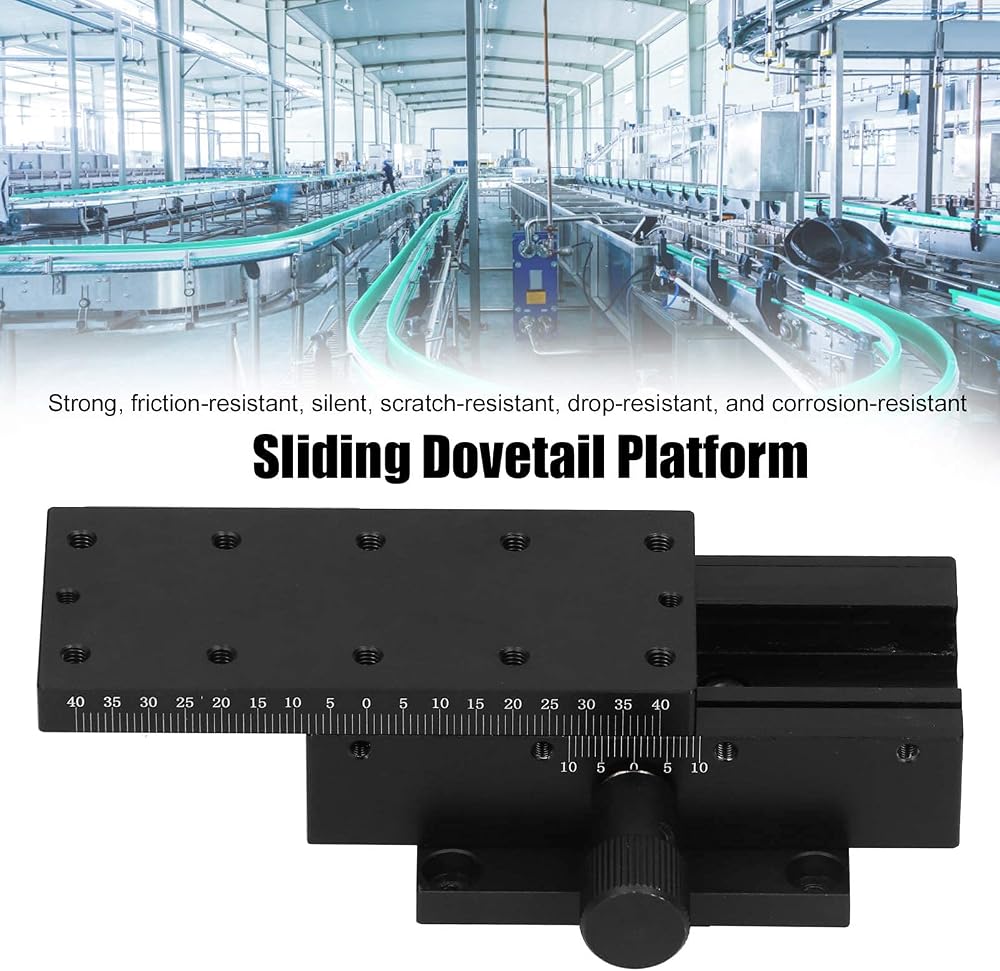

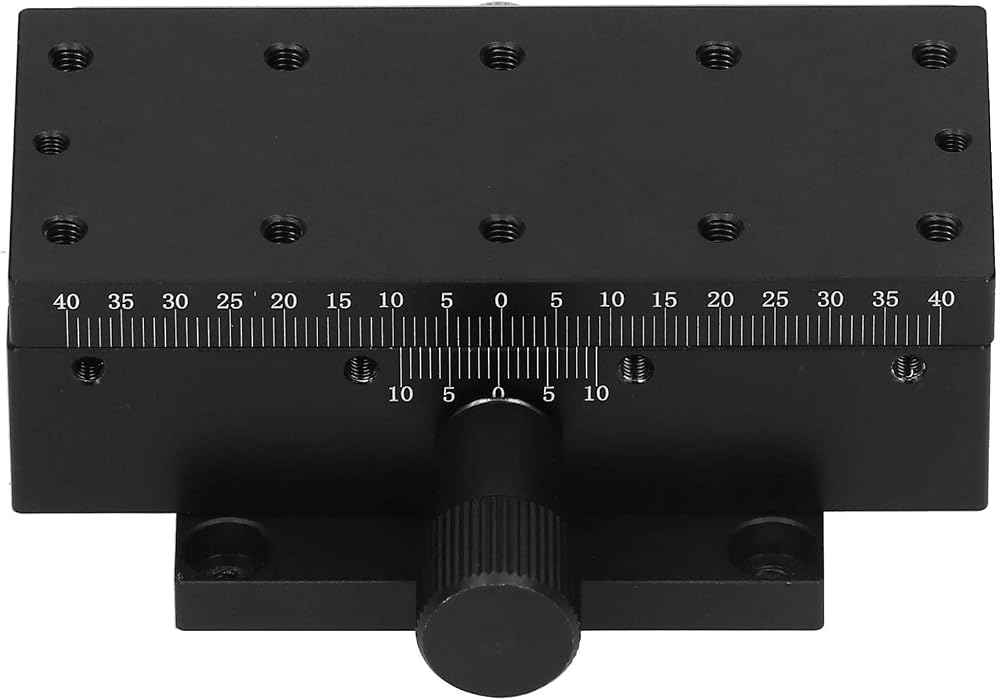

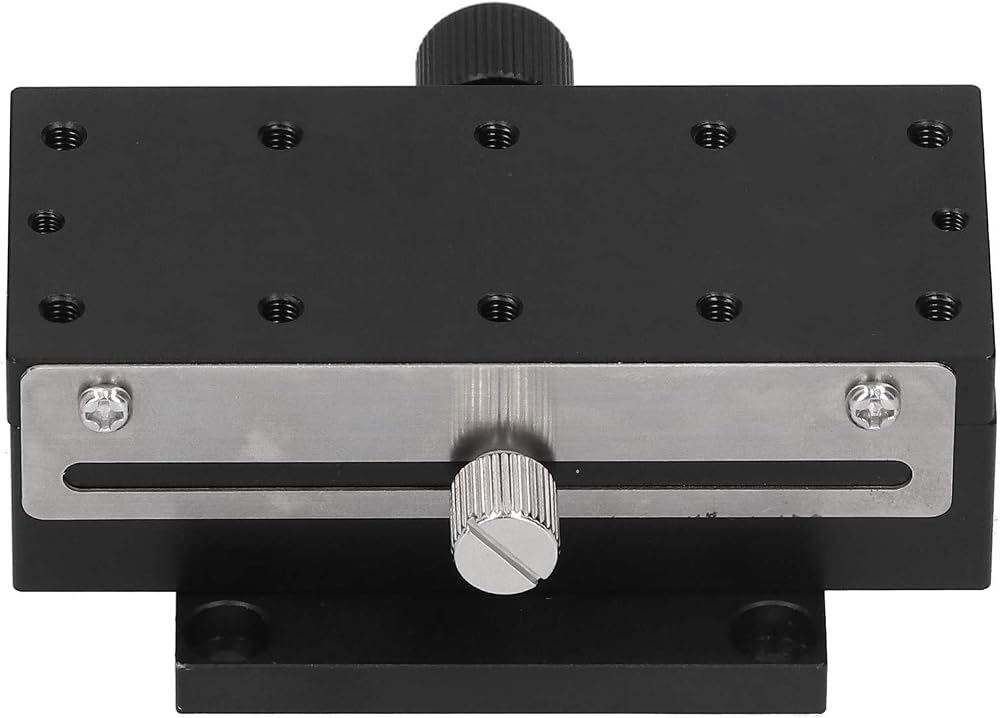

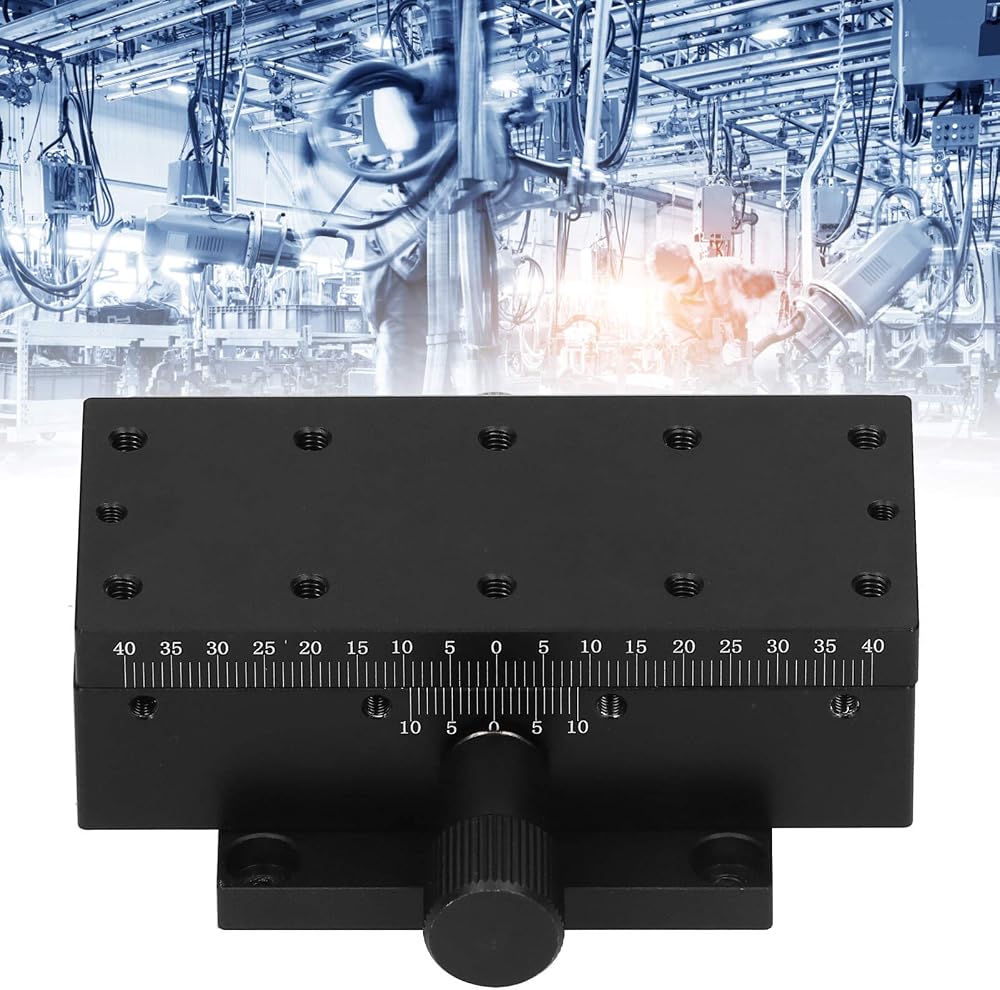

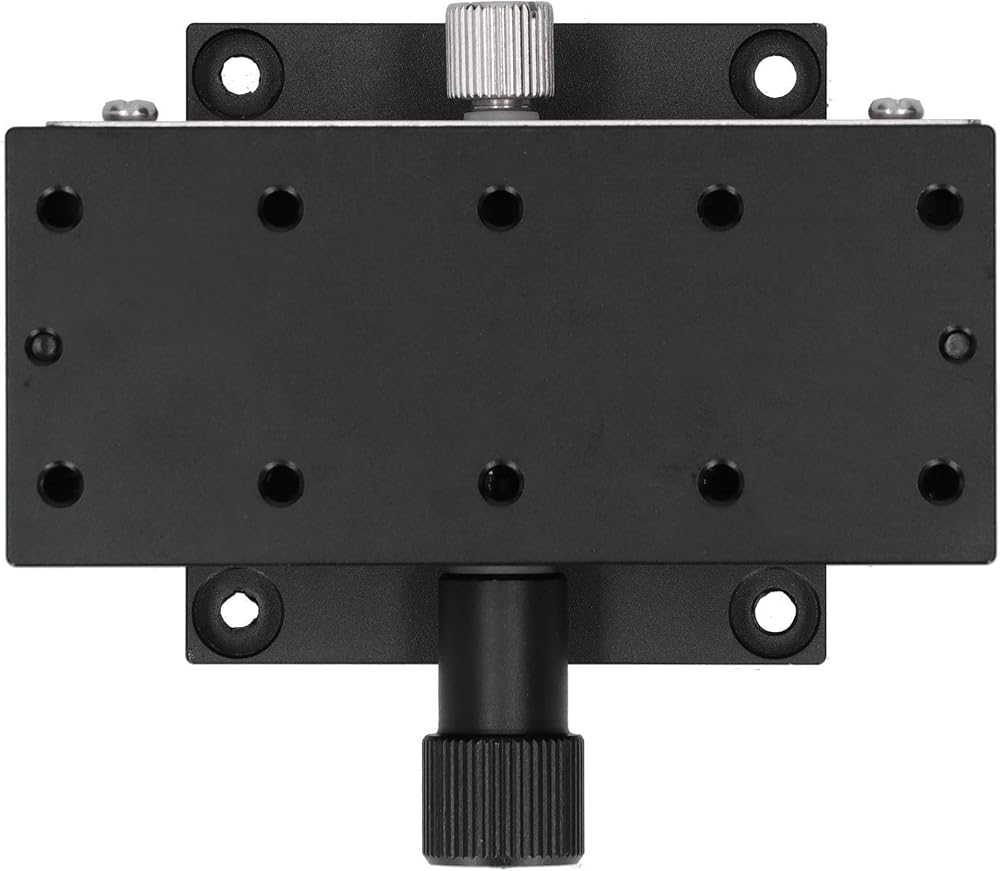

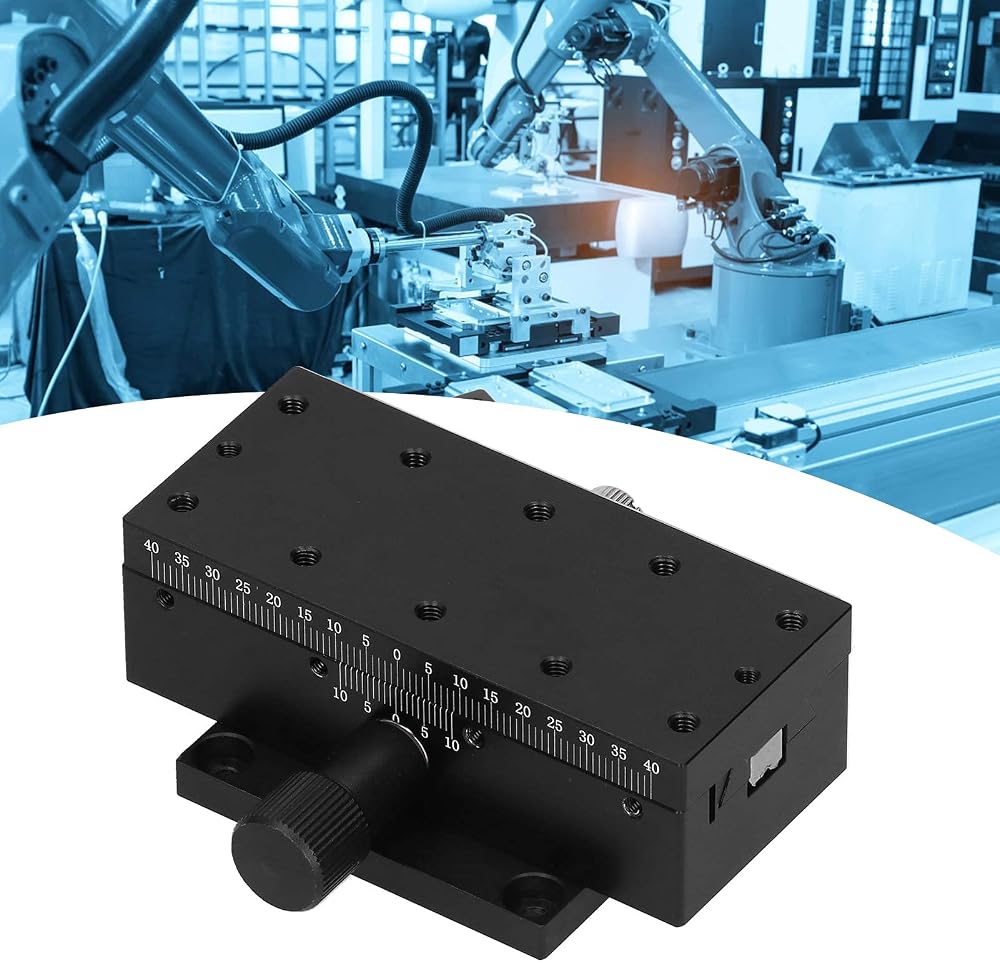

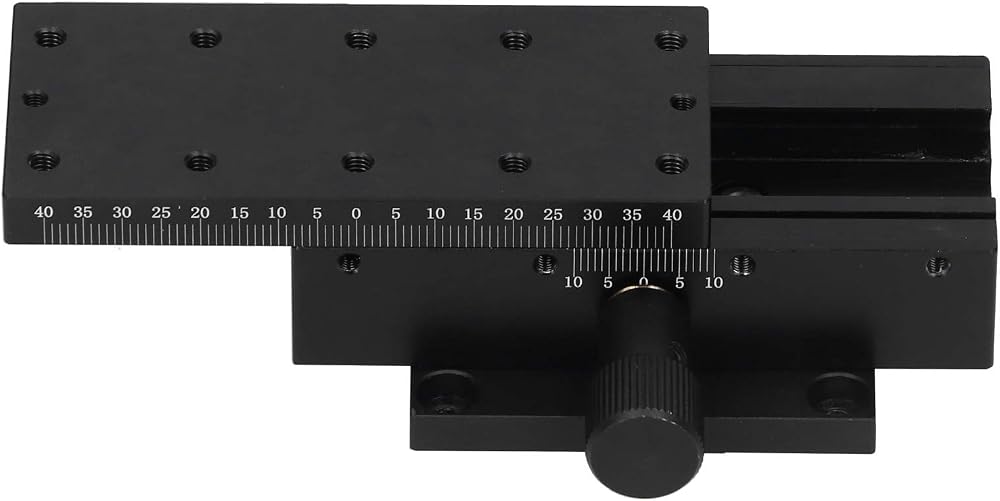

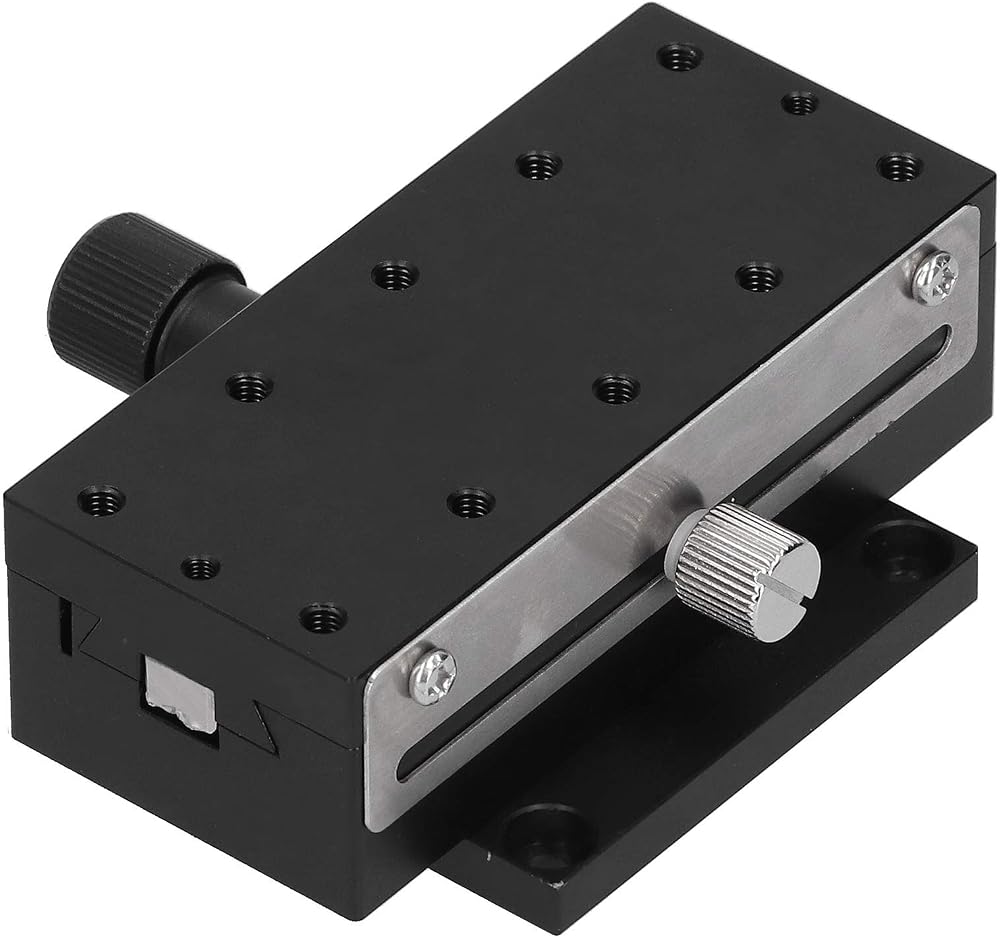

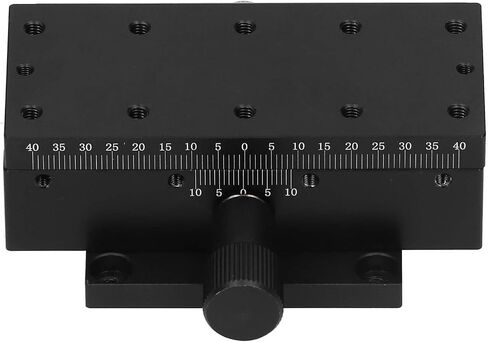

HG-A90 Manual X-Axis Sliding Trimming Stage – 40x90mm Precision Aluminum Platform for Optical & Measuring Instruments

KWD 56
– 1 +

Special Features

  • Precision X-Axis Control: Smooth, accurate manual adjustment via gear-driven knob for fine-tuned positioning in optical and measurement setups.
  • Robust Aluminum Build: Black-anodized aluminum alloy body resists wear, scratches, and impact—built for long-term reliability in demanding environments.
  • Broad Compatibility: Optimized for optical benches, metrology tools, lab instruments, and industrial machinery requiring stable, repeatable linear motion.
  • User-Friendly Design: Detachable structure and intuitive manual knob make setup and operation effortless for engineers, technicians, and makers alike.
  • Engineered for Accuracy: 40x90mm platform with ±35mm travel and 0.01mm resolution delivers lab-grade precision for critical alignment tasks.

Description

Item Type: Manual Adjustable Platform

Model: HG-A90

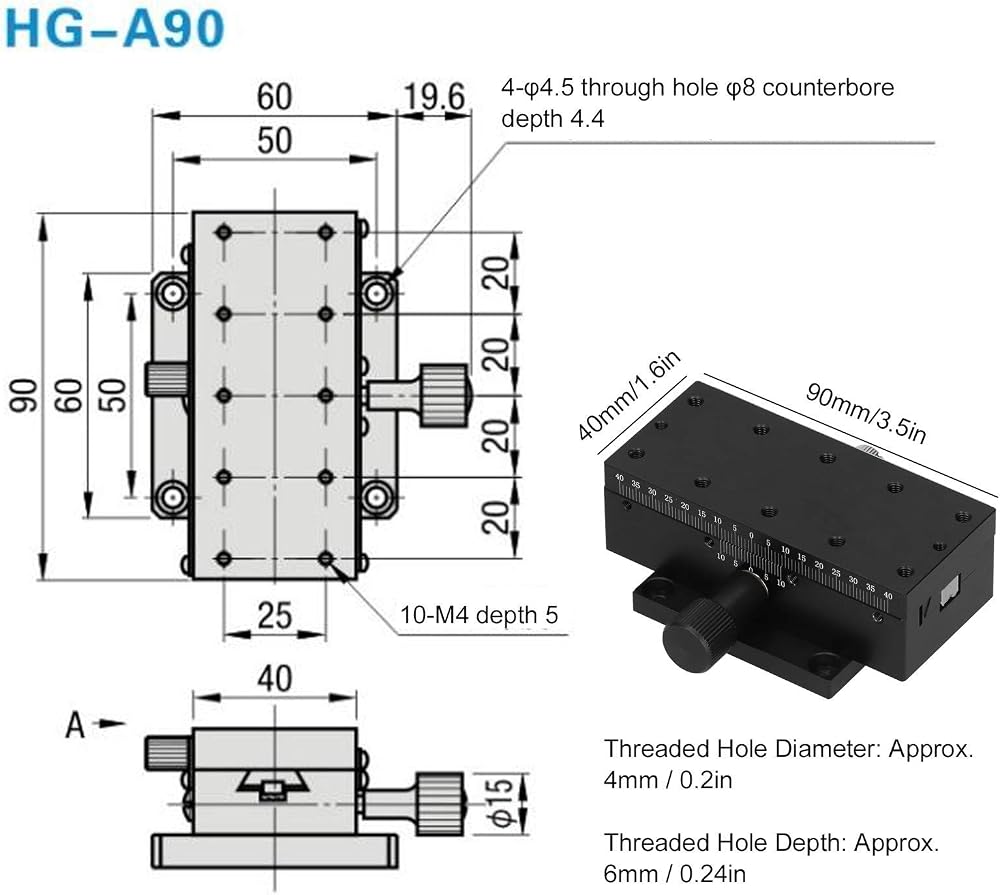

Table Size: Approx. 40 x 90mm / 1.6 x 3.5in
Moving Direction: X-axis (single direction)
Body Material: Aluminum alloy (black anodized)
Movement Mode: Manual knob rotation driving gear mechanism
Sliding Track: Gear-guided
Rail Type: Dovetail groove
Countertop Threaded Holes: 10 pcs
Threaded Hole Diameter: Approx. 4mm / 0.2in
Threaded Hole Depth: Approx. 6mm / 0.24in
Max Load Capacity: 98N (10Kgf)
Travel Range: ±35mm
Minimum Scale Increment: 0.01mm
Parallelism Tolerance: 60μm
Moving Parallelism: 0.1mm over 60mm
Structure: Detachable
Applications: Optical equipment, measuring instruments, semiconductor manufacturing, test rigs, microscopes, photo gear, handling systems, processing machines, printers, and more.

Package Includes:
1 x Sliding Platform
