Amplifier Output Transformer 32Ω: 30Ω 300Ω 3W Transformer for Headphones, Wide Frequency Response 5Hz-420KHz 0DB Without Attenuation.(2pcs Transformer_EI41 Iron core) in Kuwait

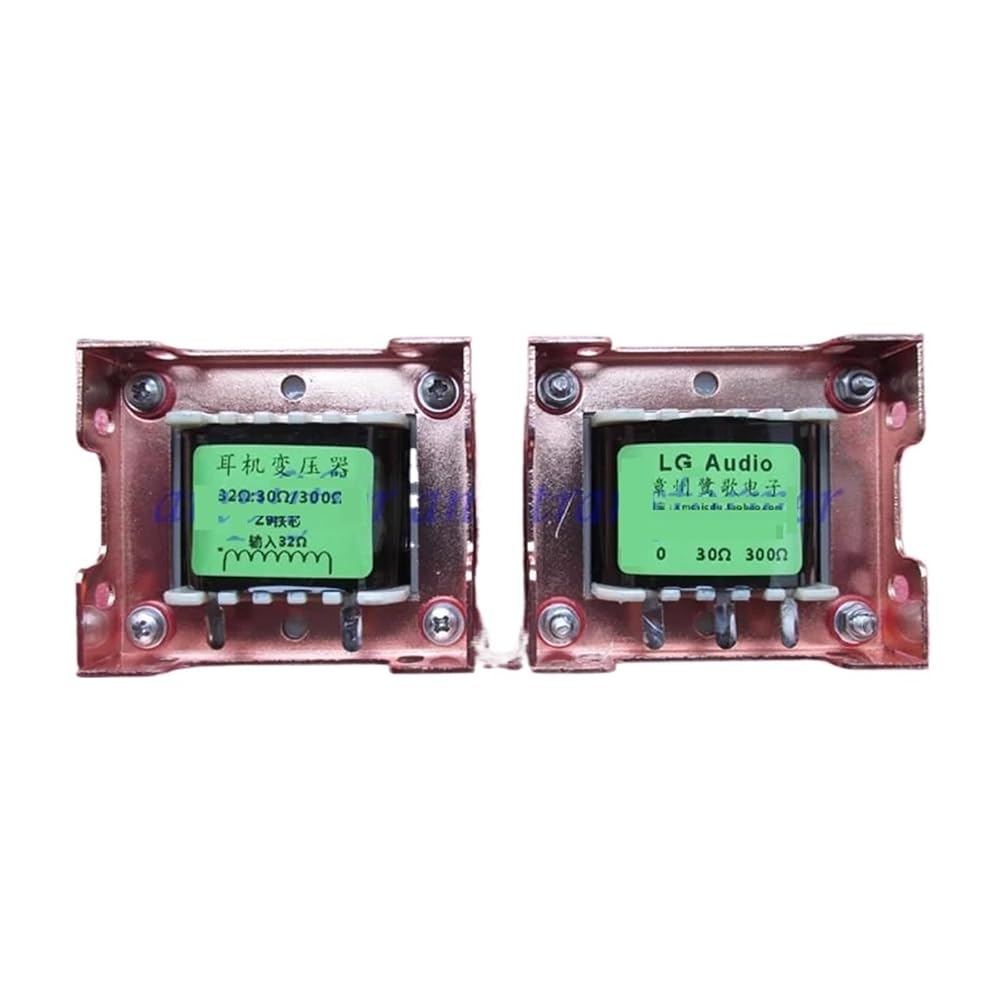

Amplifier Output Transformer 32Ω: 30Ω 300Ω 3W Transformer for Headphones, Wide Frequency Response 5Hz-420KHz 0DB Without Attenuation.(2pcs Transformer_EI41 Iron core)

KWD 60
Brand
CAARLA
Color2pcs transformer_EI41 iron core
– 1 +

Special Features

  • This transformer simplifying assembly while maintaining stable inductance for signal
  • Crafted with robust materials and precise winding to withstand prolonged use in output audio transformer applications without sacrificing tone
  • Serving as a reliable step down transformer for various industrial electronics and audio amplifier projects requiring stable alternating current supply without fluctuation issues
  • Ensuring safe operation in demanding business environments while maintaining consistent performance under continuous heavy load conditions
  • This unit withstands high temperatures and voltage spikes effectively, minimizing eddy current loss to provide long lasting durability for critical electrical equipment that requires uninterrupted power delivery daily

Description

32: 30 300 transformer for headphones, isolation transformer, transistor amplifier transformer for headphones, wide frequency response 5Hz-420KHz 0DB no attenuation, there are two models of size.
Parameters: Due to different testing equipment, the measured parameters and nominal values are different, the data provided is for reference only!
Impedance: 32: 30 300
EI41x30mm specification Z9 iron core
Power: 3W
Primary overcurrent: 400mA
Secondary overcurrent: 100mA
Primary DC resistance: 3 ohms
Primary inductance: about 1.4H 100HZ measurement
Secondary DC resistance: 37 ohms (measured at 300 ohms)
Secondary inductance: about 11H 100HZ measurement
Distributed capacitance: 3450P 20khz measurement
Leakage inductance: 11uH 1000hz measurement
Frequency response: 5Hz-420KHz-0DB No mislabeling and no misreading, actual measurement.
Weight: 0.91kg/pair.
External dimensions: 58 x 50 x 42mm
There are also transformers with EI48x30mm specification z9 cores wound with 32 ohm: 30 ohm 300 ohm, with the following parameters:
EI48x30mm specification Z9 iron core
Power: 4W
Primary overcurrent: 400mA
Secondary overcurrent: 100mA
Primary DC resistance: 6 ohms
Primary inductance: about 5.5H 100HZ measurement
Secondary DC resistance: 74 ohms (measured at 300 ohms)
Secondary inductance: about 33H 100HZ measurement
Distributed capacitance: 6200P 20khz measurement
Leakage inductance: 27uH 1000hz measurement
Frequency response: 2Hz-105KHz-0DB No mislabeling or misreading, actual measurement.
Weight: 1.5kg/pair.
External dimensions: 60 x 65 x 50mm
finished product:
==========
High-concerned chemical : None
Origin : Mainland China
Use : AUDIO
