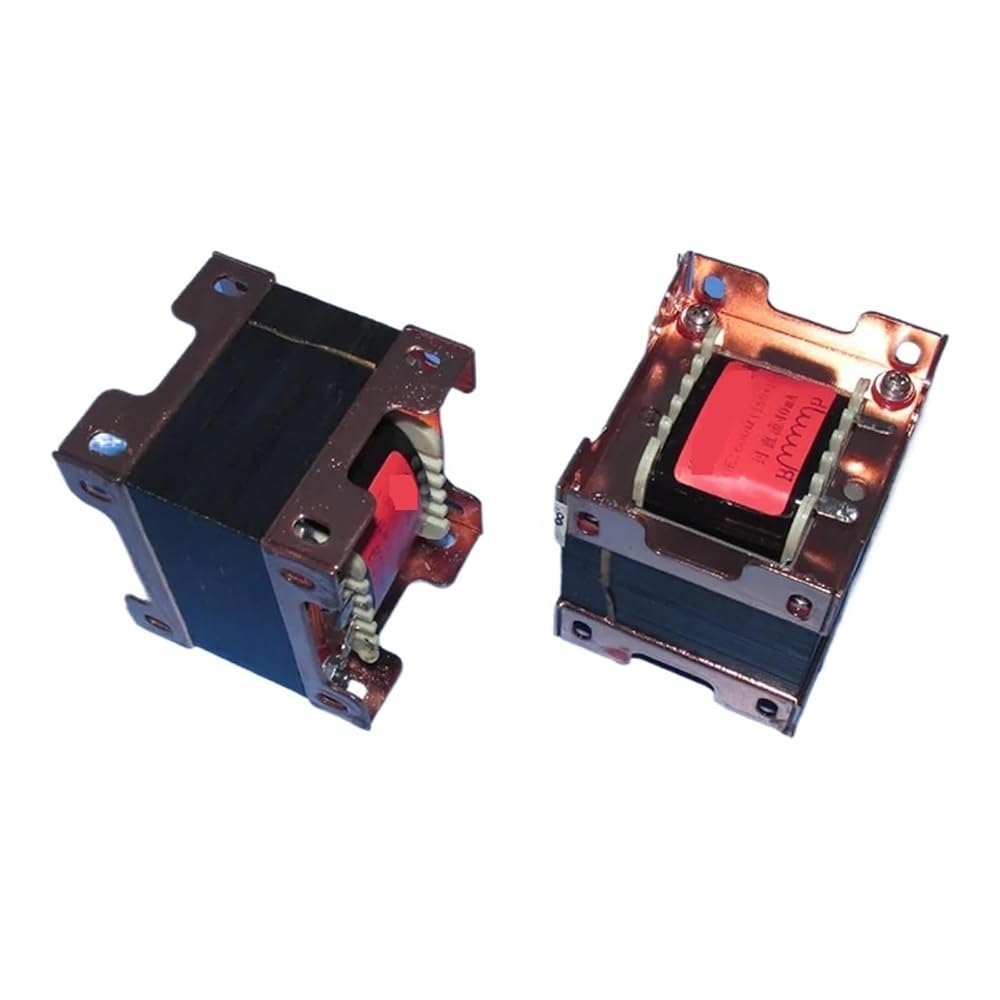

Tube 10K: 600 (150 + 150) single-ended push transformer, headphone output transformer, front-stage output transformer.
Suitable for 6P1, 6P14, 6C16, 6N8P, 6V6, 6N11 parallel, 12AU7 parallel and other electronic tubes, the primary can pass DC 40mA.
************************************************** ***************
The transformer thickness is 25mm basic parameters: primary inductance is about: 18H copper resistance is about 790. The secondary copper resistance is about 8.2 + 8.2, the power is about 2W and the overcurrent is 40mA. Appearance size: 60X50X53mm Iron core size: 57X25mm Transformer weight 1.09KG / pair.
Frequency response measurement: 58Hz-46Kz -3dB.
************************************************** ****************
The transformer thickness is 30mm basic parameters: primary inductance is about: 21H copper resistance is about 540 ohms. The secondary copper resistance is about 9 ohms + 9 ohms, the power is about 2.5W and the overcurrent is 40mA. Appearance size: 60X50X58mm Iron core size: 57X30mm Transformer weight 1.27KG / pair.
************************************************** ******************
The transformer thickness is 35mm basic parameters: primary inductance is about: 25H copper resistance is about 588 ohms. The secondary copper resistance is about 9.8 ohms + 9.8 ohms, the power is about 3W and the overcurrent is 40mA. Appearance size: 60X50X63mm Iron core size: 57X35mm Transformer weight 1.44KG / pair.
==========
Coil Number : Autotransformer
Phase : SINGLE
Origin : Mainland China
Use : AUDIO
