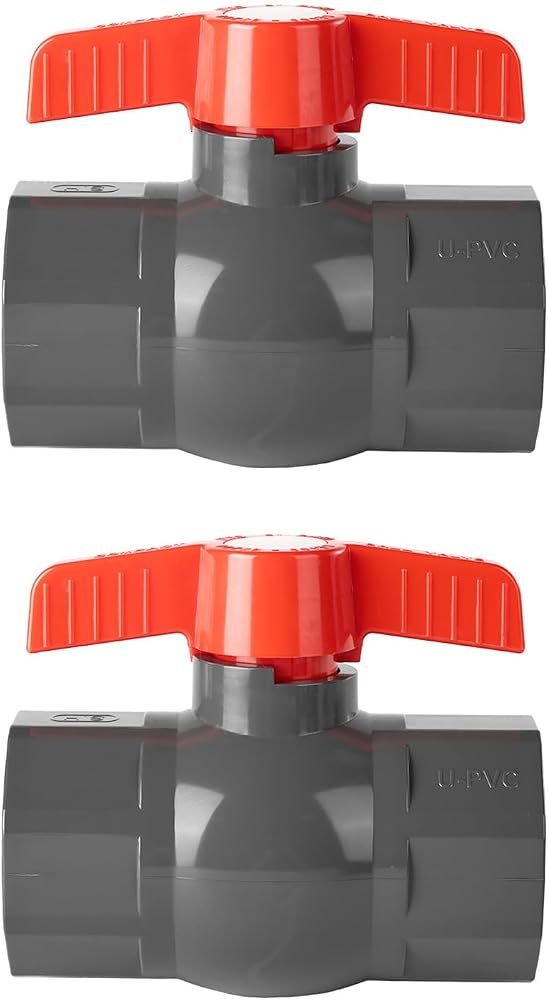

This SCH80 PVC Ball Valve provides reliable on/off flow control for water and compatible fluid systems. The simple quarter-turn lever handle opens or closes the valve instantly. Socket (slip) ends allow permanent solvent weld installation.
Key Features
- Socket x socket (slip) ends – no threads, solvent weld only
- Quarter-turn lever handle – visual open/close indicator
- High-density SCH80 PVC – corrosion resistant, lightweight
- Smooth internal flow path – minimal pressure drop when fully open
Key Technical Specifications
- Material: High-density PVC, Schedule 80
- Pressure Rating: 230 PSI at 73°F (22°C)
- Maximum Service Temperature: 140°F (60°C)
- Connection Type: Socket x Socket (solvent weld)
- Operation: Quarter-turn manual lever
- Color: Gray (standard SCH80)
Where to Use
- Irrigation system shut-off zones
- Pool and spa circulation control
- Garden hose and rainwater barrel connections
- Cold water supply line repairs
- Underground sprinkler system maintenance
- Industrial low-pressure fluid handling
Installation Instructions
Clean pipe ends and socket interiors with PVC primer. Apply PVC cement to both surfaces (cement sold separately). Immediately insert pipe fully into socket and hold for 10-15 seconds. Allow proper curing time before pressurizing. Open and close valve fully to test operation.
Compatible with Schedule 80 PVC pipe only. For cold water and non-potable use. Not rated for compressed air, gas, steam, or hot water above 140°F. Primer and cement sold separately.
