Filter, Regulator & Lubricator Combos

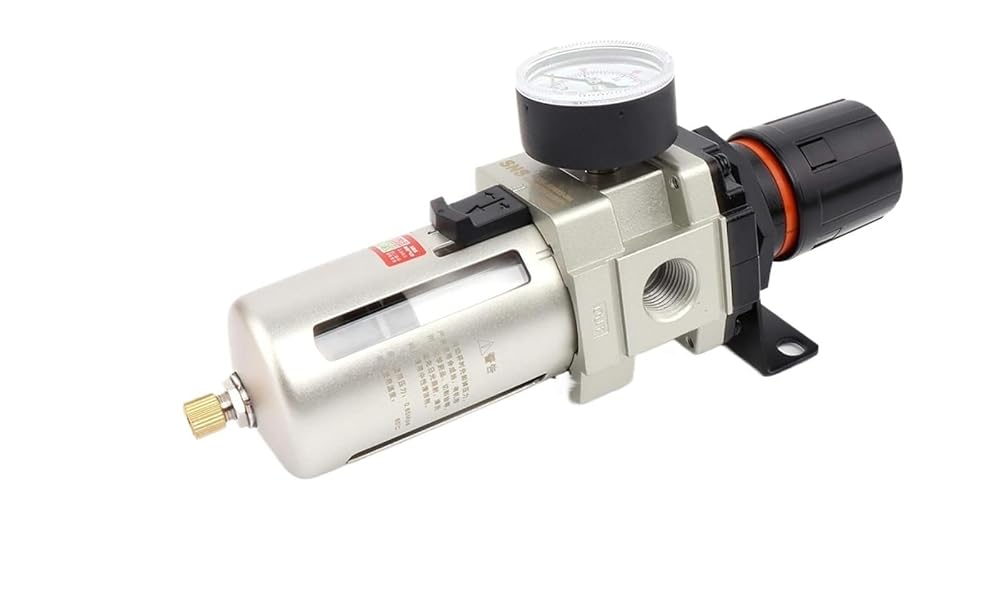

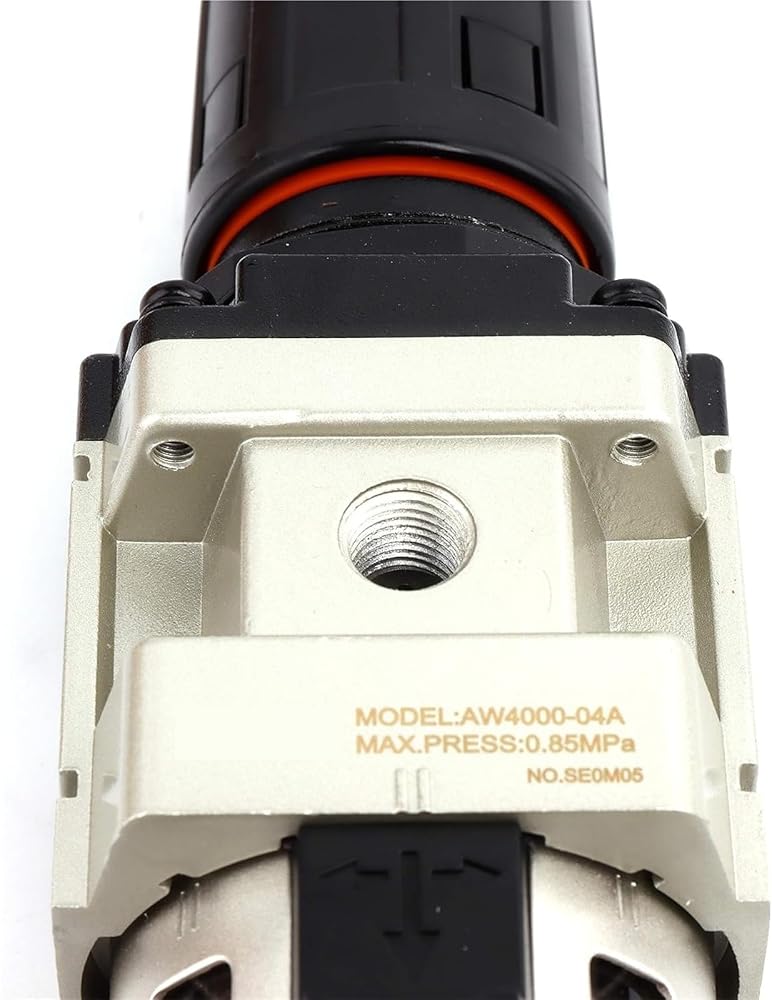

1/2”NPT/G Compressed Air Filter Regulator Piggyback Combo Semi-auto Drain 5 Brass Filter Gauge & Bracket AW4000-N04A

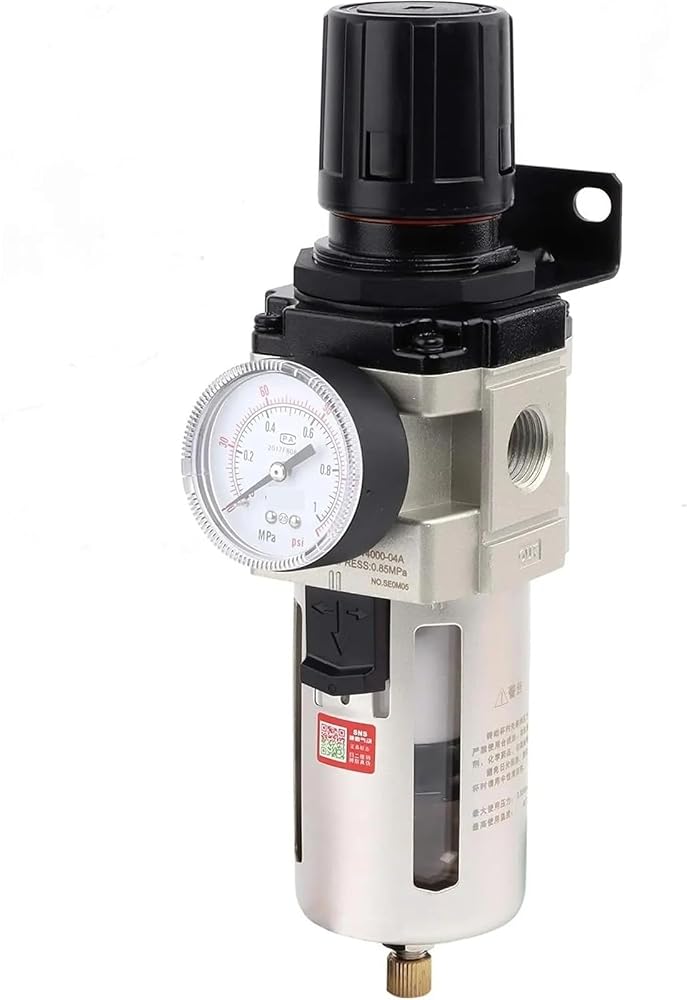

Accurate pressure gauge with unit MPa/ PSI.
Regulating Knob
Easy to regulate the pressure

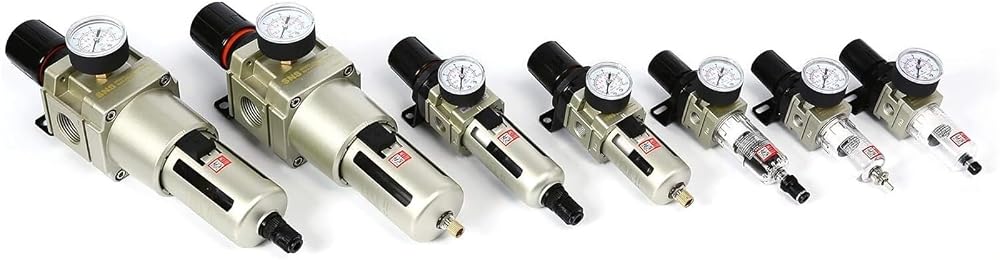

Model
AW1000-M5
AW2000-01
AW2000-02
AW3000-02
AW3000-03
AW4000-03
AW4000-04
AW4000-06
AW5000-06
AW5000-10
Port Size
M5*0.8
PT1/8
PT1/4
PT1/4
PT3/8
PT3/8
PT1/2
G3/4
G3/4
G1
Pressure Gange Port Size
M5*0.8
PT1/8
PT1/8
PT1/8
PT1/8
PT1/4
PT1/4
PT1/4
PT1/4
PT1/4
Rated Flow(L/Min)
100
550
550
2000
2000
4000
4000
4500
5500
5500
Working Media
Compressed Air
Proof Pressure
1.5Mpa
Range of Regulation
0.05~0.7Mpa
0.05~0.85Mpa
Ambient Temperature
5~60
Filter Precision
40m(Normal) or 5m()
Body material
Aluminum Alloy
Bracket(one)
B120
B220
B320
B420
Pressure Gange
Y25-M5
Y40-01
Y50-02
Material
Body Material
Aluminum Alloy
Cup Material
PC
Cup Cover
AW100~AW2000: without AW3000~AW5000: with(Steel)
Model
Port Size
A
B
C
D
F
G
H
J
K
L
M
N
P
AW1000
M5*0.8
25
109.5
50.5
25
25
38
30
4.5
6.5
40
2.0
20.5
28
AW2000
PT1/8,PT1/4
43
164.5
78
40
30
34
45
5.5
10.54
55
2.3
33.5
40
AW3000
PT1/4,PT3/8
53
211
92.5
53
41
41
46
6.5
8.0
53
2.3
42.5
56
AW4000
PT3/8,PT1/2
70
262.5
112
70
50
50
54
8.5
10.5
70
2.3
52.5
73
AW4000-06
G3/4
75
267
114
70
50
50
56
8.5
10.5
70
2.3
52.5
73
AW5000
G3/4,G1
90
345
115
90
50
70
62
9
12
70
2.3
52.5
73
Certificate
==========
Hign-concerned Chemical : None
Type : Filter
Model Number : AW2000/AW3000/AW4000
Thread : 1/2 NPT/G
Rated Flow : 141.2 SCFM(4000 L/min) under the pressure of 0.7MPa
Temperature Range : 5~60 (41-140 )
