rectifier
Technical parameters

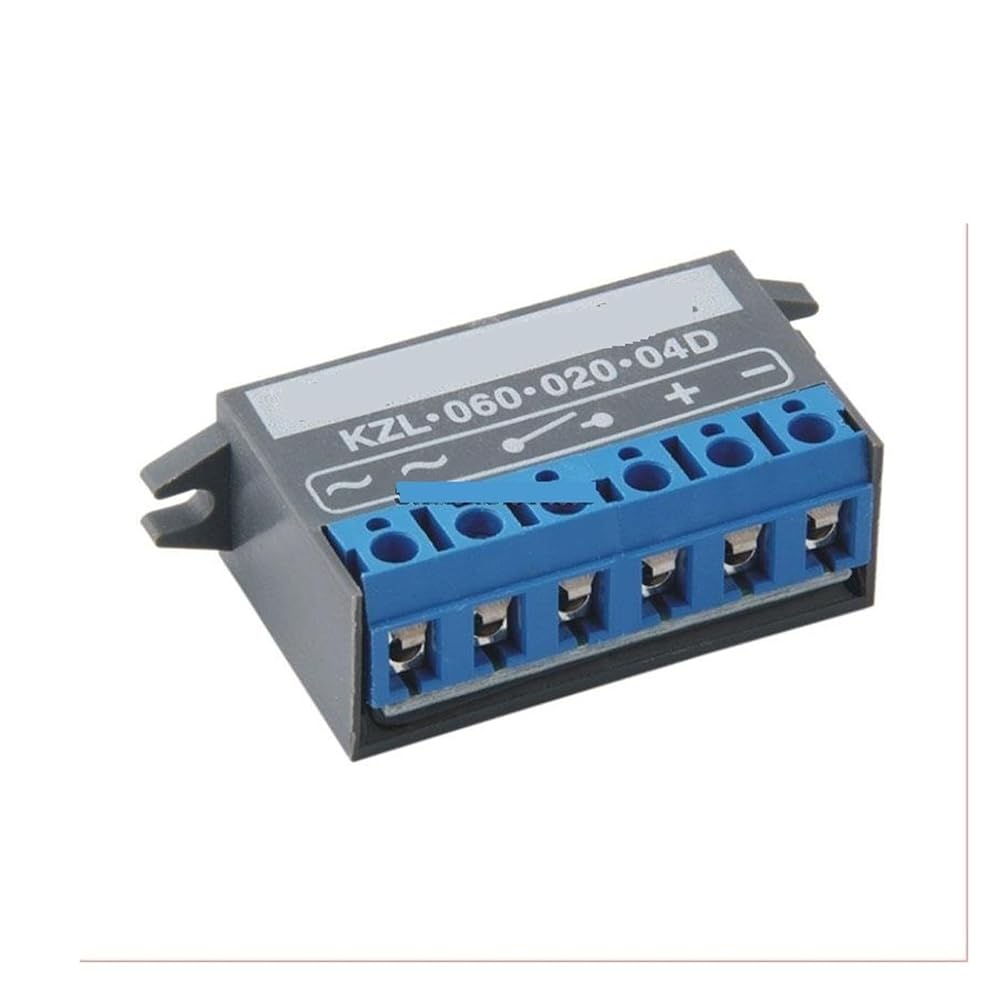

half-wave rectifier KZL-060-020-04D
maximum input voltage
AC380V-500V
the output of the continuous voltage
DC170V-255V
rated Current
3A 45/1.5A 80
ambient temperature
-20 ~ 80
shape
61*17.5*28
1. Compact design of plastic shell
2. Small size selected imported military-grade electronic devices
3. Can be installed in the junction box of the motor
4. Has a protective effect on the anti-peak voltage generated by the DC side switch
5. The highest ambient temperature is 80
6. Fast braking rectifier power supply can realize fast braking without connecting to AC synchronous secondary contact
three shape installation dimensions and access mode
