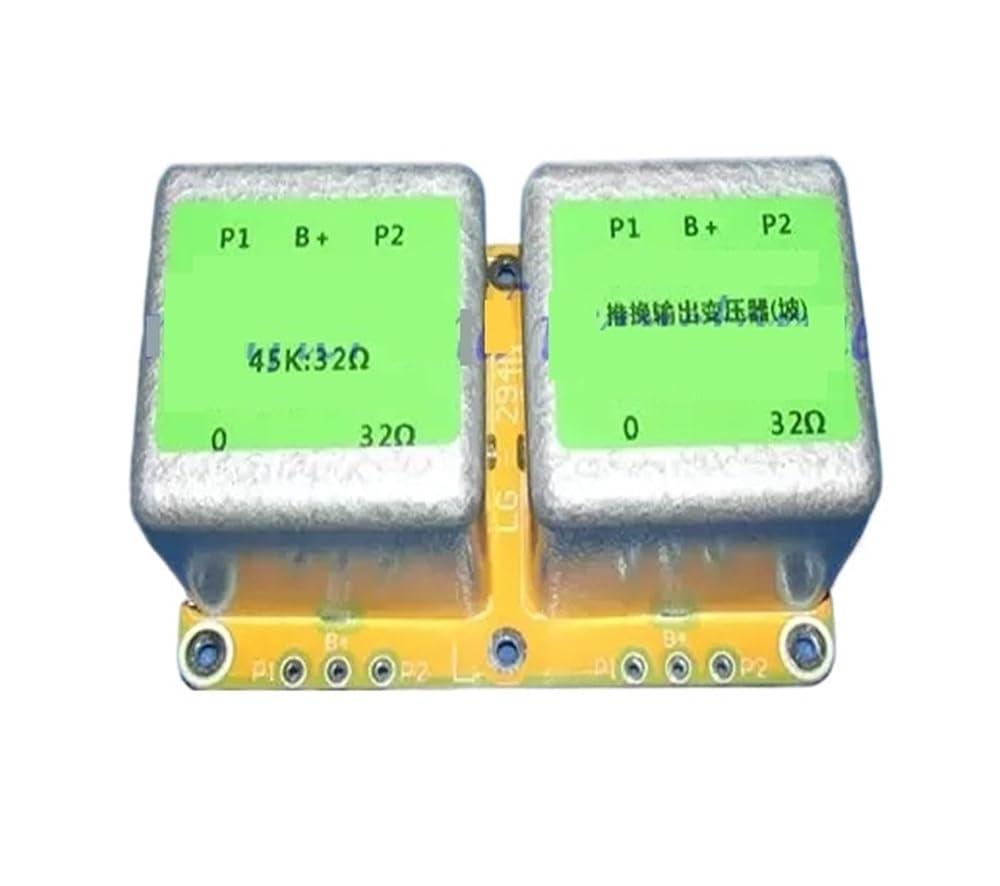

Universal tube output transformer, 45K: 32 high impedance single-ended push-pull dual-purpose output transformer, 32 ohm headphone dedicated amplifier wide frequency response transformer.
parameter:
Primary copper resistance: 1110 ohms
Primary inductance: about 245H measured at 100HZ
Primary over DC: 15mA
Secondary copper resistance: 2.6 ohms
Secondary inductance: about 545mH measured at 100HZ
Distributed capacitance: measured at 380P 20KHZ
Leakage inductance: 22mH 1KHZ measured
Frequency response: 5HZ-42KHZ -0.5DB, 59KHZ -1DB
Single: 41X34X40mm
Weight: about 0.4KG/pair, parameters are matched and sold, and the warranty is one year under normal use.
Board size 93X60mm
*******************************************************
The second type: EI41X19mm specifications permalloy core transformer pins are fixed, the cores are plugged into each other without paper, and there is no magnetic saturation. Single-ended and push-pull available.
parameter:
Primary copper resistance: 1110 ohms
Primary inductance: about 246H measured at 100HZ
Primary over DC: 15mA
Secondary copper resistance: 2.6 ohms
Secondary inductance: about 400mH measured at 100HZ
Distributed capacitance: measured at 370P 20KHZ
Leakage inductance: 20mH 1KHZ measured
Frequency response: 5HZ-456KHZ -0.5DB, 62KHZ -1DB
Single: 41X34X40mm
Weight: about 0.4KG/pair
The board size is 93X60mm, and the parameters are matched.
==========
High-concerned chemical : None
Material : Aluminium-copper Alloy
Type : Hand Tool Parts
Origin : Mainland China
Use : Home DIY
