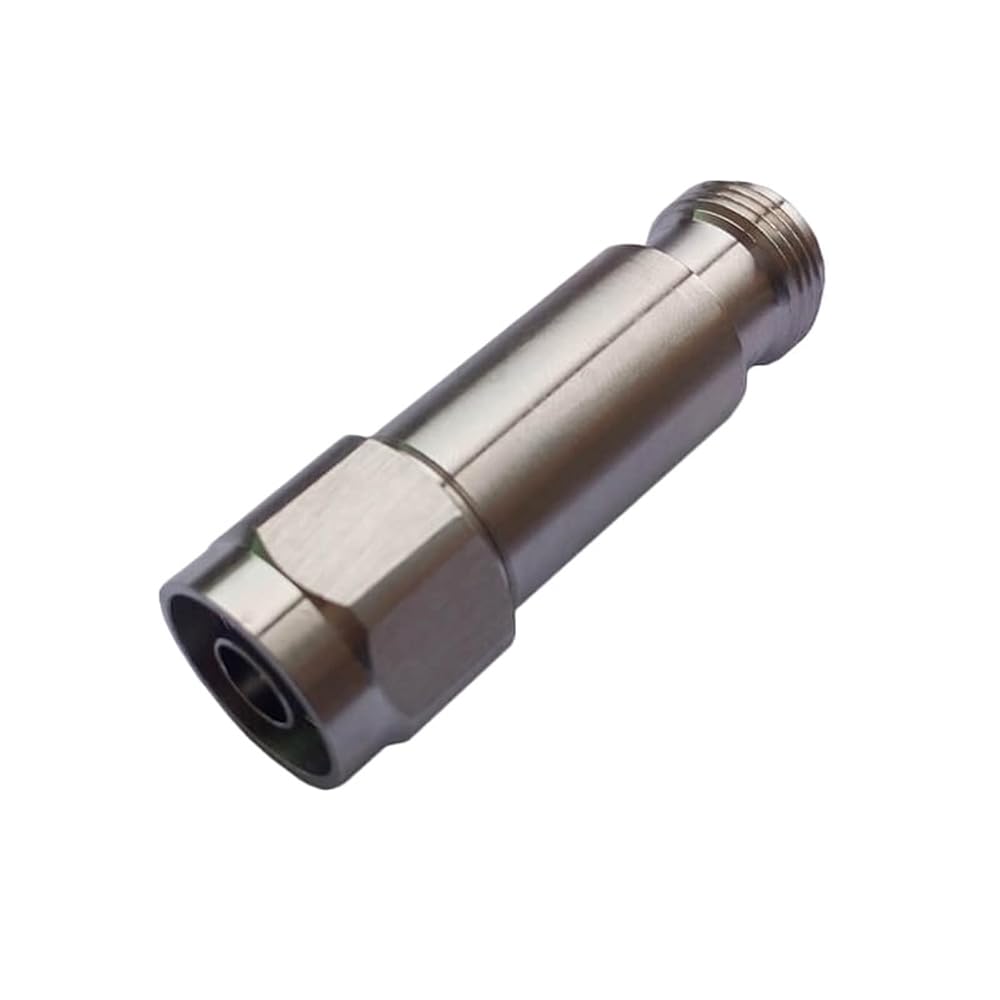

2W N-JK ذكر إلى أنثى مخفف الترددات اللاسلكية الثابتة DC-4 جيجا هرتز 1-40dB 50Ω للاتصالات واختبار الهوائي ومعدات المختبرات (2W40DB) in Kuwait

2W10DB

KWD 17
ماركة
Generic
وزن
65 g
اللون2W10DB
– 1 +

مميزات خاصة

  • 2W N-JK male to female fixed RF attenuator with 1-40dB attenuation, DC-4GHz frequency and 50Ω impedance for stable signal control in RF systems.
  • Low VSWR, low insertion loss and great impedance matching, effectively reducing signal reflection and protecting transmitters and amplifiers.
  • Compact and durable structure with good heat dissipation, ensuring reliable performance for long-term high-frequency testing and communication use.
  • Standard N-JK connector, plug-and-play design, widely compatible with RF test instruments, signal generators and communication modules.
  • Widely used in signal attenuation, power adjustment, antenna testing, lab measurement, radar and wireless communication equipment.

وصف

Insulator material: Stainless Steel
Application areas: Network Communication
Model N-Type Fixed Attenuator
Power 2W
Impedance 50Ω
VSWR ≤1.20 (unidirectional standing wave)
Frequency Range DC to 4GHz
Operating Temperature -55℃ to +125℃
Attenuation Value 3,6,10,15,20,30dB; 1–10dB±0.5dB, 15–40dB±1dB
Connector N-Type Male to Female
Dimensions 58mm × 17mm
