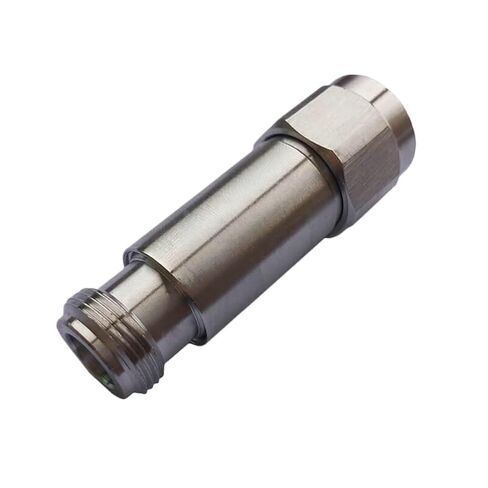

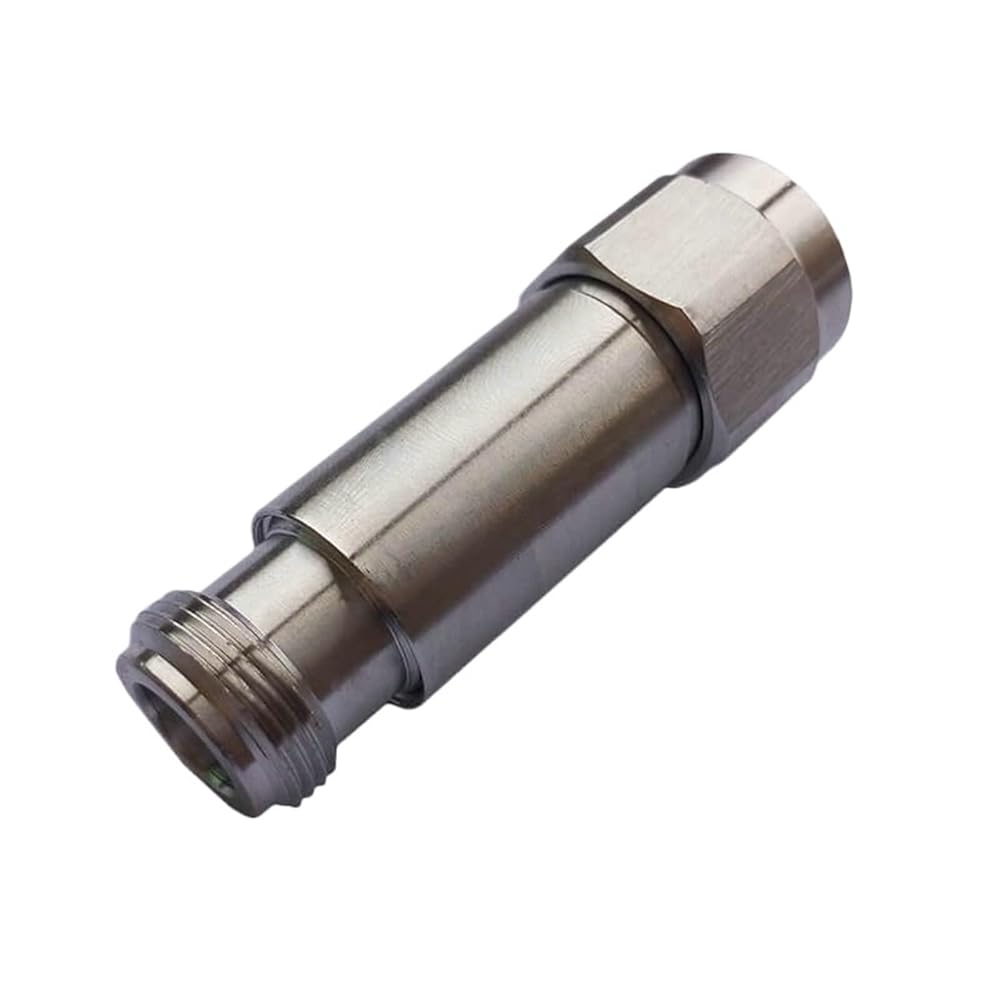

5W N-JK Male to Female Fixed RF Coaxial Attenuator DC-3GHz 3dB 6dB 10dB 15dB 20dB 30dB 40dB 50Ω for Wireless Communication & Antenna Test(5W15DB) in Kuwait

5W N-JK Male to Female Fixed RF Coaxial Attenuator DC-3GHz 3dB 6dB 10dB 15dB 20dB 30dB 40dB 50Ω for Wireless Communication & Antenna Test(5W15DB)

KWD 13.500
Brand
Generic
Weight
44 g
Size5W15DB
– 1 +

Special Features

  • 5W N-JK male to female fixed RF attenuator with attenuation 3dB,6dB,10dB,15dB,20dB,30dB,40dB, frequency DC-3GHz, 50Ω impedance for stable RF signal control.
  • Low VSWR, low insertion loss and excellent impedance matching, effectively reducing signal reflection and protecting transmitters, amplifiers and test equipment.
  • Sturdy structure with good heat dissipation and anti-interference performance, reliable for long-term use in high-frequency communication and testing environments.
  • Standard N-JK connector, plug and play, widely compatible with base stations, signal generators, spectrum analyzers and antenna testing systems.
  • Widely used in RF signal attenuation, power adjustment, antenna testing, laboratory calibration, radar and wireless communication equipment.

Description

Kind: Radio Frequency Coaxial (RF)
Operating frequency: DC-3GHZ
Interface Type: Thread
Insulator material: Stainless Steel
Number of stitches: 1
Application areas: Network Communication
Model: N-Type Fixed Attenuator
Power: 5W
Impedance: 50Ω
VSWR: ≤1.20 (unidirectional standing wave)
Frequency Range: DC to 3GHz
Operating Temperature: -55℃ to +125℃
Attenuation Value: 1,3,6,10,15,20,30dB; 1–10dB±0.5dB, 15–30dB±1dB, 40dB±1.5dB
Connector: N-Type Male to Female
