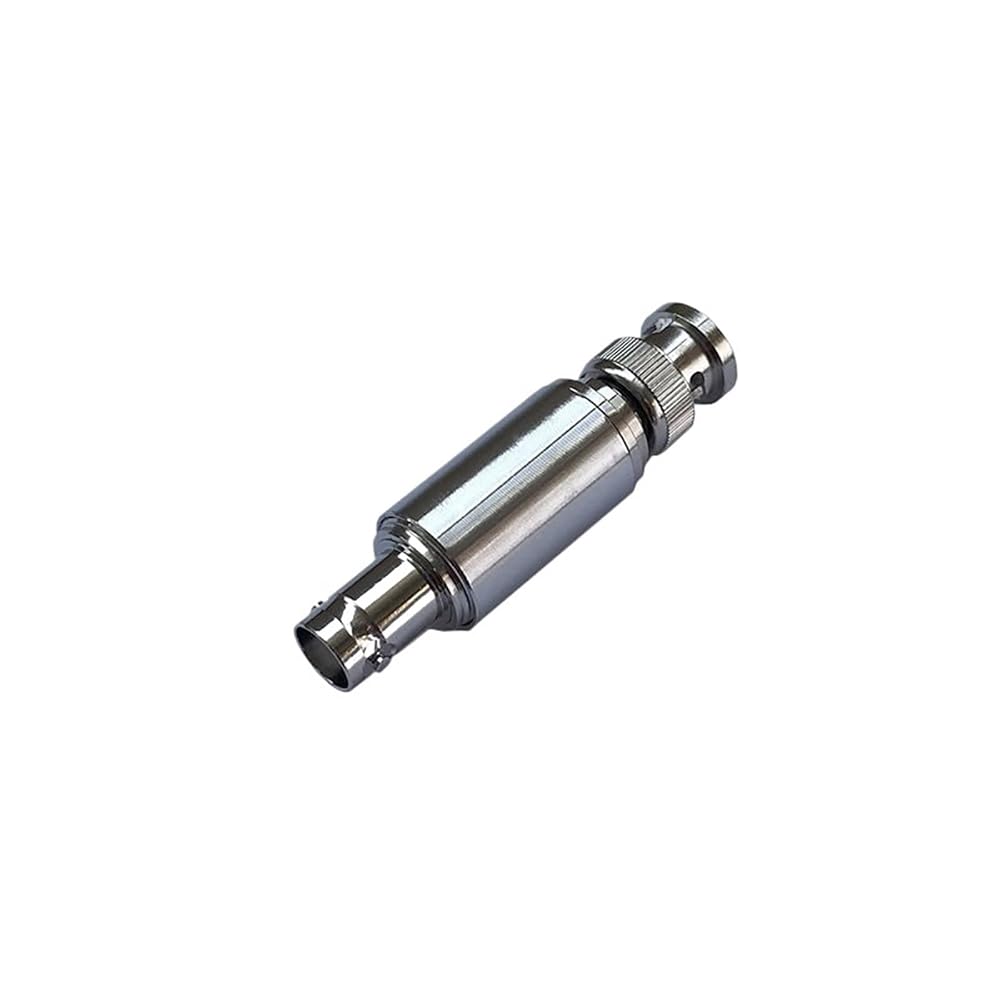

2 واط BNC-JK ذكر إلى أنثى مخفف التردد اللاسلكي المحوري 1-40 ديسيبل DC-3 جيجا هرتز معدن دقيق للاختبار والهوائي ومعدات الاتصالات (2W2DB) in Kuwait

2W15DB

KWD 15
ماركة
Generic
وزن
48 g
مقاس2W15DB
– 1 +

مميزات خاصة

  • 2W BNC-JK male to female fixed RF attenuator with 1-40dB optional attenuation, DC-3GHz frequency and 50Ω impedance for stable signal control.
  • Precision metal structure ensures low VSWR, low insertion loss and excellent impedance matching, reducing signal reflection effectively.
  • Rugged metal housing provides good heat dissipation, anti-interference and durability for long-term laboratory and field testing.
  • Standard BNC-JK connector, plug and play, widely compatible with signal generators, testers, receivers and communication modules.
  • Ideal for signal attenuation, power control, antenna testing, equipment protection and various wireless communication applications.

وصف

Kind: Radio Frequency Coaxial (RF)
Insulator material: Stainless Steel
Application areas: Network Communication
Model BNC Fixed Attenuator
Power 2W
Impedance 50Ω
VSWR ≤1.20 (unidirectional standing wave)
Frequency Range DC to 3GHz
Operating Temperature -55℃ to +125℃
Attenuation Value 1–40dB available; 1–10dB±0.5dB, 15–30dB±1dB
Material Stainless Steel
Connector BNC Male to Female
Dimensions 29.8mm × 9.5mm
Weight 0.047kg
