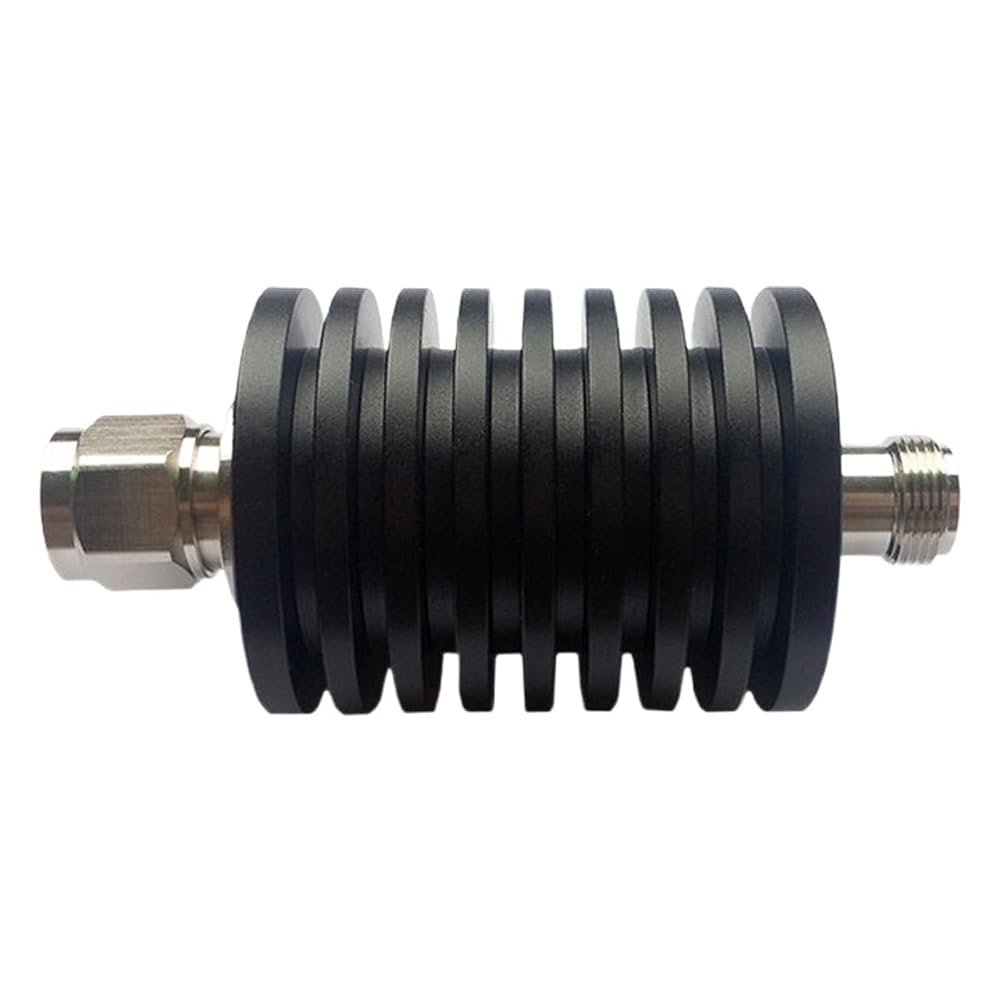

50W high-power N-type fixed RF attenuator with attenuation values 3dB,6dB,10dB,15dB,20dB,30dB,40dB, frequency DC-4GHz, 50Ω impedance for 4G communication systems.
Low VSWR, low insertion loss and high precision, providing stable signal attenuation and impedance matching for RF equipment and communication devices.
Rugged structure with excellent heat dissipation, durable and anti-interference, suitable for long-term operation in high-power and high-frequency environments.
Standard N-type connector, plug and play, widely compatible with base stations, power amplifiers, transmitters, signal generators and test instruments.
Widely used in 4G communication, radar systems, antenna testing, laboratory measurement, signal calibration and transmitter/receiver protection.
وصف
Kind: Radio Frequency Coaxial (RF)
Insulator material: Stainless Steel
Application areas: Communication
Model: N-Type Fixed Attenuator
Power: 50W
Impedance: 50Ω
VSWR: ≤1.25 (unidirectional standing wave)
Frequency Range: DC to 4GHz
Operating Temperature: -55℃ to +125℃
Attenuation Value: 3,6,10,15,20,30dB; 1–10dB±0.7dB, 15–30dB±1.2dB, 40dB±1.5dB, 50dB±2dB
Connector: N-Type Male to Female
