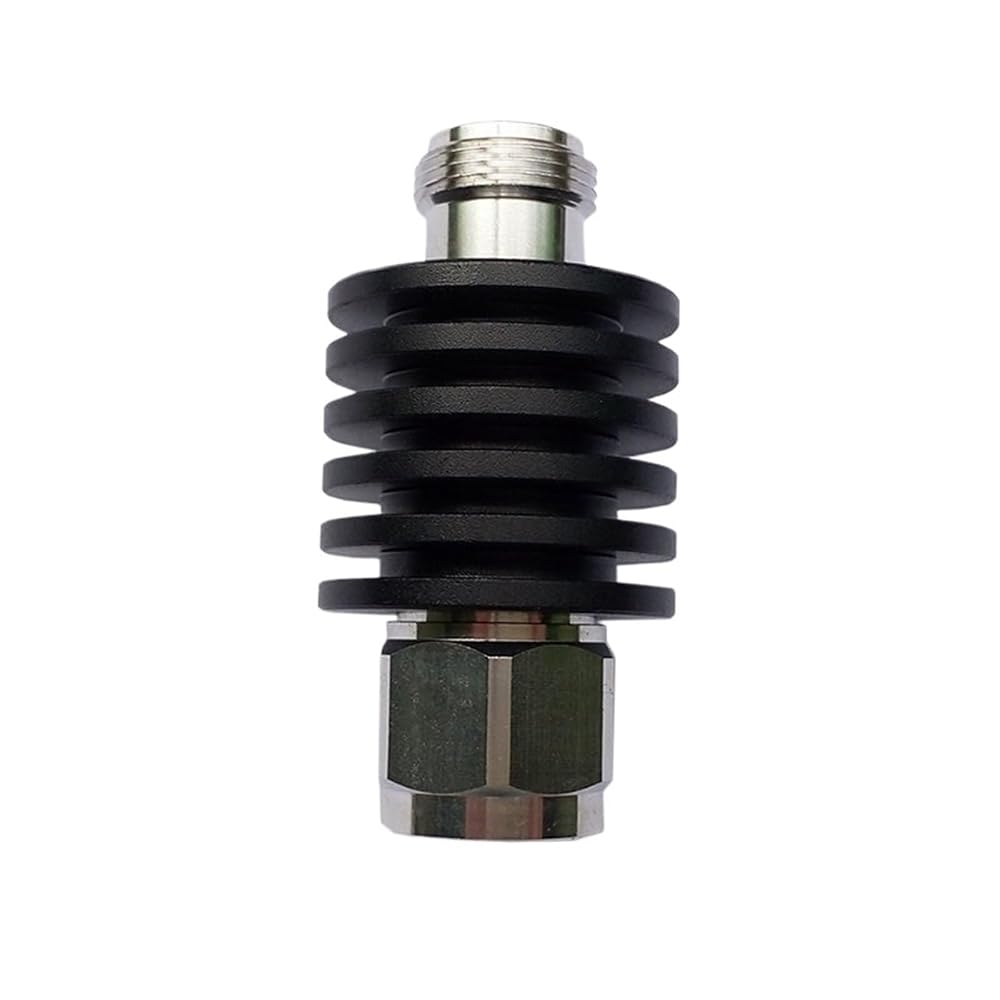

5W N-JK ذكر إلى أنثى مخفف الترددات اللاسلكية الثابتة DC-4 جيجا هرتز 1-40dB 50Ω للاتصالات اللاسلكية واختبار الهوائي ومعدات المختبرات (5W1DB) in Kuwait

5W3DB

KWD 19.500
ماركة
Generic
وزن
101 g
مقاس5W3DB
– 1 +

مميزات خاصة

  • 5W N-JK male to female fixed RF attenuator with 1-40dB optional attenuation, DC-4GHz frequency range and 50Ω impedance for stable signal control.
  • Low VSWR, low insertion loss and excellent impedance matching to reduce signal reflection and protect transmitters, amplifiers and test devices.
  • Rugged construction with good heat dissipation and anti-interference, ensuring reliable performance for long-term high-frequency use.
  • Standard N-JK connector design, plug and play, widely compatible with RF test equipment, base stations and communication systems.
  • Suitable for signal attenuation, power adjustment, antenna testing, lab calibration, radar and wireless communication applications.
  • Keywords

وصف

Kind: RF Coaxial (RF)
Insulator material: Stainless Steel
Application areas: Network
Model N-Type Fixed Attenuator
Power 5W
Impedance 50Ω
VSWR ≤1.20 (unidirectional standing wave)
Frequency Range DC to 4GHz
Operating Temperature -55℃ to +125℃
Attenuation Value 1,3,6,10,15,20,30dB; 1–10dB±0.6dB, 15–30dB±1dB, 40dB±1.5dB
Connector N-Type Male to Female
