Product Description

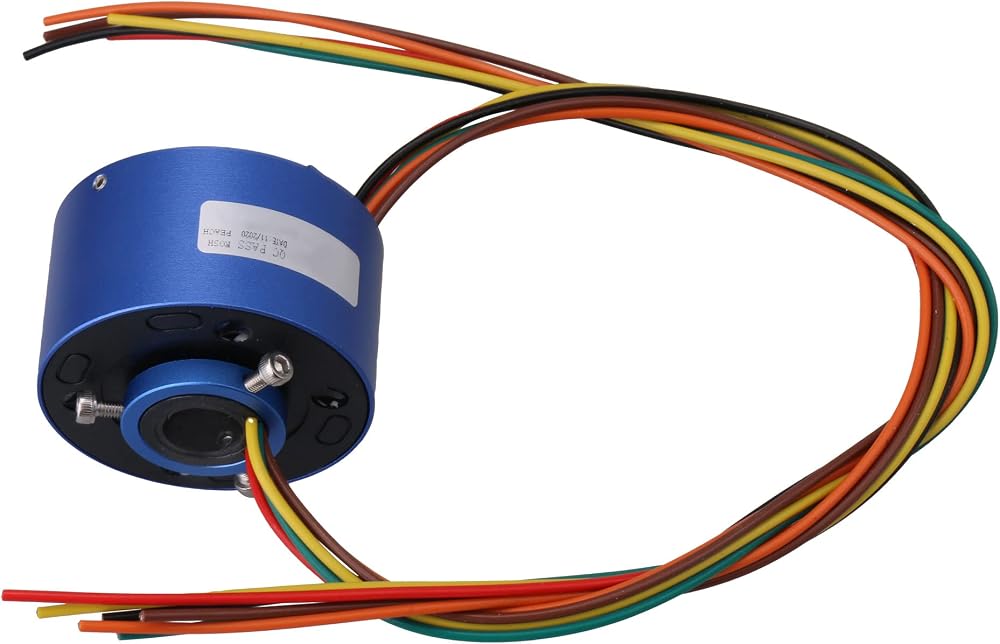

This 22mm thru bore miniature capsule slip ring is specially designed for small precision electromechanical equipment that requires 360° continuous rotation and multi-channel signal or power transmission. With a compact 22mm thru bore diameter structure, it can easily fit into narrow installation spaces while providing stable and reliable electrical connection.

The slip ring supports 2 independent circuits, each capable of carrying up to 10A current at 240V working voltage, making it suitable for both power supply and low voltage signal transmission. Gold plated contacts and precision machining ensure low contact resistance, low noise, and stable performance during long term rotation.

It effectively solves the problem of wire twisting and breaking in rotating components and is widely applied in PTZ cameras, robotic joints, automatic test equipment, medical instruments, rotary worktables, and various small automation devices. Stable performance, easy installation, and long service life make it an ideal component for precision rotary transmission systems.

SPECIFICATIONS

Model Number: 11419058
Thru Hole Diameter: 22mm
Overall Length: 36mm
Flange OD: 44.5mm
Operating Speed (max.) : 500 RPM Continuous
Data Speed (max.) Under 50 Mbps (non-Ethernet)
Standard Circuit Options: 2
Voltage [AC/DC] (max.): 240V
Amps: 10A Per Circuit
Wire Material: Silver-Plated Copper
Electrical Noise (max.) : 60 Milliohms
Contact Material: Gold
Housing Material: Engineered Plastics
Temperature Range: -20°C to +60°C

Package Includes:
1xSlip Ring
