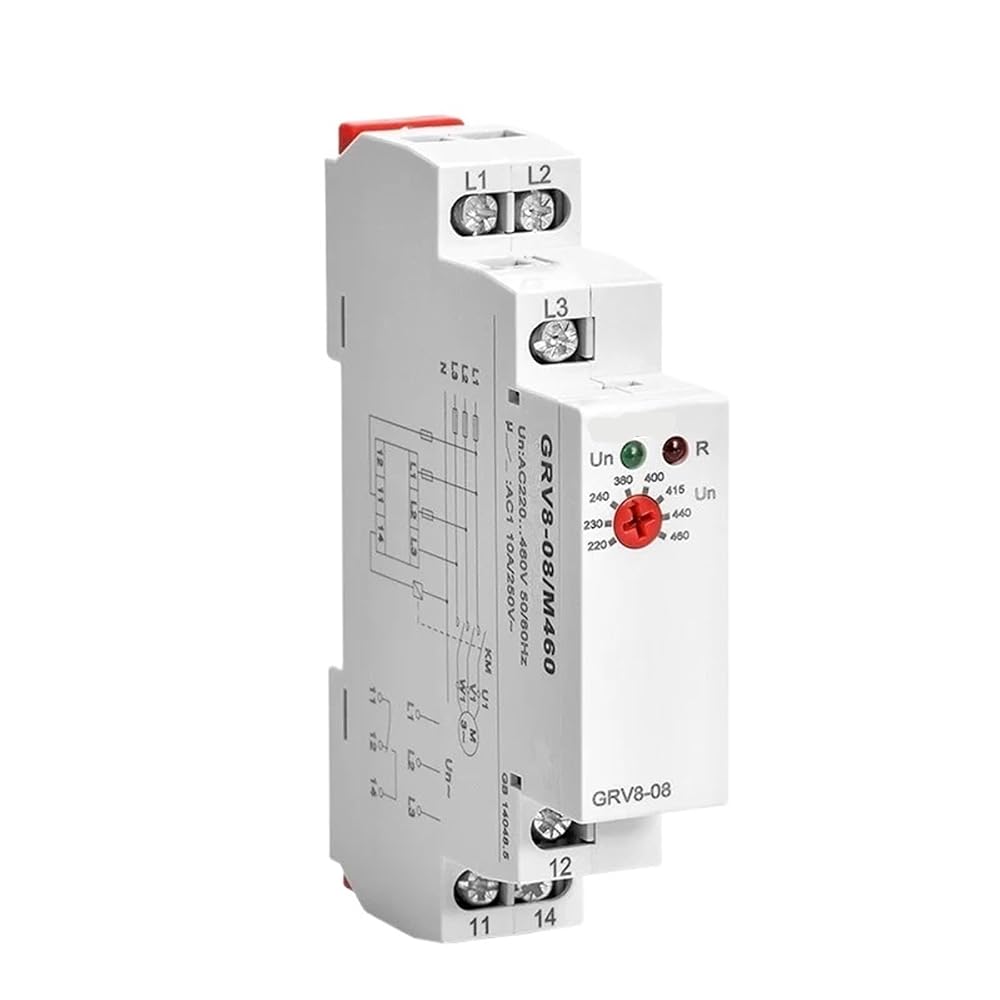

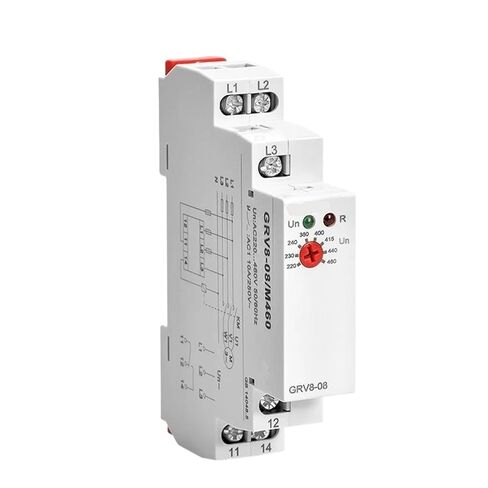

Tips: This link is for 3phase monitoring relay GRV8-08 M265 OR M460
GRV8-08 Function: Over voltage 15%, Undervoltage -15%, Asymmetry 8%, Delay Time 2s, Phase Sequence, Phase Failure
GRV8-08 M460 : 10A, 1SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
GRV8-08 M265: 10A, 1SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)
GRV8-08D M460 : 8A, 2SPDT, 3Phase 3Wire=M460 Voltage Range: 220V-230V-240V-380V-400V-415V-440V-460VAC(P-P)
GRV8-08D M265 : 8A, 2SPDT, 3Phase 4Wire=M265 Voltage Range: 127V-132V-138V-220V-230V-240V-254V-265VAC(P-N)
General
Applications
-Control for connection of moving equipment(site equipment,agricultural equipment,refrigerated trucks).
-Control for protection of persons and equipment against the consequences of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).
Function Features
-Controls its own supply voltage(True RMS measurement).
- Measuring frequency range:45Hz-65Hz.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
HOW TO CHOOSE THE MODEL
Product Code
Over Voltage
Under Voltage
Asymmetry
Delay Time
Phase Sequence
Phase Failure
GRV8-03
/
/
/
/
YES
YES
GRV8-04
2%~20%
-20%~2%
/
0.1s~10s
YES
YES
GRV8-05
2%~20%
-20%~2%
8%
0.1s~10s
YES
YES
GRV8-06
2%~20%
-20%~2%
5%~15%
2s
YES
YES
GRV8-07
/
/
8%
2s
YES
YES
GRV8-08
15%
-15%
8%
2s
YES
YES
Note YES Means The Function is Available
