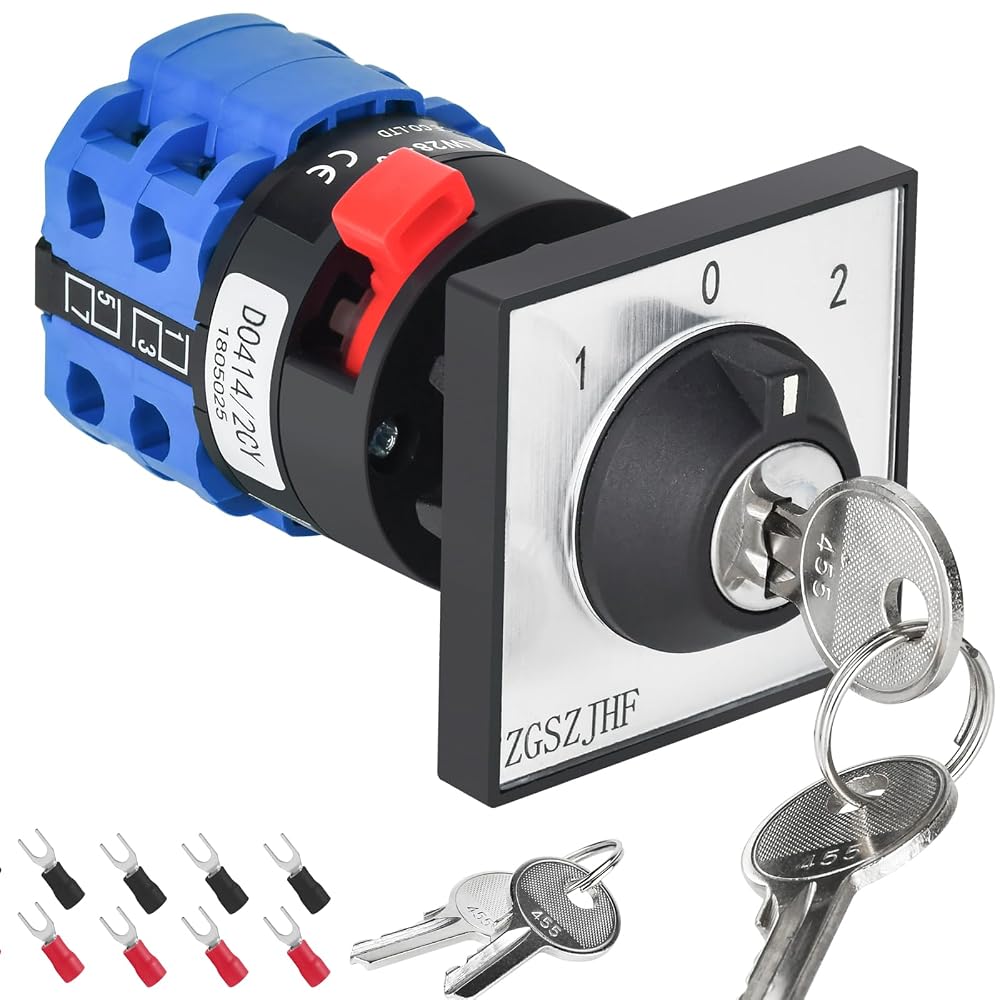

3 Position Key Switch 20Amp 550V AC 22MM 2-Ways Rotary Switch with Key Latching Keylock 8 Terminals Changeover Switch 2 Normally Open Split Type in Kuwait

3 Position Key Switch 20Amp 550V AC 22MM 2-Ways Rotary Switch with Key Latching Keylock 8 Terminals Changeover Switch 2 Normally Open Split Type

KWD 8.500
Brand
ZGSZJHF
Weight
73 g
Size20A, 3 Position 22mm
– 1 +

Special Features

  • [2 Pole keyed switch 20 amp] 3 Position Switch with Key Switches, Mounting Hole Dia:22mm, 7/8", All keys are universal. Rated working current: 20Amp, rated heating voltage: AC 550V.
  • The key is in the closed state when in "0" Position.Both the "1" and "2" positions is powered on.2-Ways 2 phases, 8 terminals latching type switch.Rotary switch Mechanical life: 200,000 cycles.Operating temperature: -25~55 ℃, storage temperature: -40~+70 ℃.
  • [Keyed 3 position dpdt 12 v dv 20 amps ] Be sure to place the key in gear 0 before disassembling. The installation should be done on the concave points, and then fixed with red buckles.
  • The key can be removed from all three positions.The key is universal and suitable for every switch in the same series. Thread mounting depth: 15mm (0.59"). Split-type design for easy installation.
  • Package include : 1 Pcs 22mm Key Switch;2 Pcs Keys;5 Black Terminals, 5 Red Terminals. WIDE APPLICATION : changeover switch for electrical wiring in the power switch, 3 position fan switch and induction motor, also can make the conversion of the control circuit.

Description

Suitable for the thickness between 1mm to 5mm of the mounting board.

Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.

3.Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.

Image3 has shown which terminal will be connected in different position , please read the wiring diagram as a reference.

Position 1 : 1-2 , 5-6
Position 0 : All terminal disconnected
Position 2 : 3-4 , 7-8
