مفتاح محدد دوار 10 أمبير 22 مم 3 مواضع مع 24 فولت LED أخضر، 10 أمبير 660 فولت تيار متردد DPST 2NO قفل، IP65 مقاوم للماء، مفتاح صناعي مثبت على اللوحة 7/8 بوصة in Kuwait

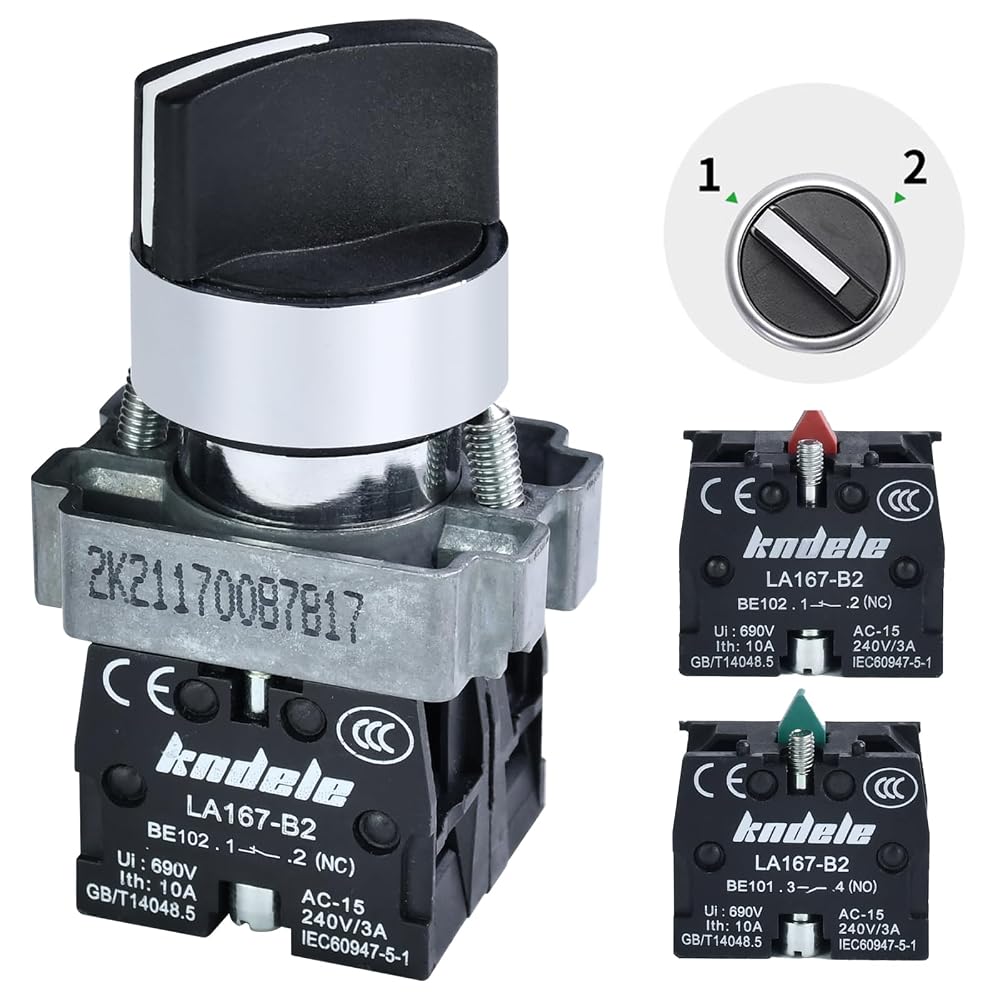

10Amp 22mm 2 موقف الروتاري مفتاح جهاز انتقاء 10A 660VAC SPDT 1NO 1NC الإغلاق، IP65 مقاوم للماء، 7/8 "لوحة جبل التبديل الصناعي

KWD 4.500
ماركة
KNDELE
وزن
105 g
مقاس2 موقف، SPDT 1NO 1NC
– 1 +

مميزات خاصة

  • 3-Position latching rotary switch ((Left–OFF–Right)). Built-in 24V green LED lights up in left/right positions, providing clear visual status indication for safer operation. While turning off the light in the middle.
  • Product name: Brand New 22mm Metal Head 3 Position Selector Switch. This rotary switch on a panel that is no more than about 6 mm thick .The 3 position switch can be fixed by tightening two screws.
  • Contact: DPST, 2 Normally Open , Switch Rating: 10Amp 660VAC, 3Amp 240V AC. Green rotating head with 24V Green LED light. Screw tightening torque: 0.4N.m
  • IP65 waterproof front panel protects against dust and water. Mechanical & electrical lifespan over 100,000 cycles, built for demanding environments. Fit Panel Thickness(Adjustable) : Max 8.5mm / 0.3" ; total Size: 28.7 x 32.5 x 76 mm / 1. 1" x 1. 3" x 2. 9" (l*w*h)
  • Material: Nylon Body, Alum Circuit, Silver Contact, Brass Conductor. Fix the back of the panel with screws. Package Content : 1 Pcs x 3 Position Rotary Switch.Wiring method: spiral press in terminal, wiring capacity: minimum 1x0.5mm ², maximum with or without terminal strips; 2x1.5mm ² or 1x2.5 ² mm.

وصف

Special Note:

This selector switch, Must be fixed to use on the panel.
There are 2 screws fixed behind the panel.
22mm panel cutout diameter, self-locking action.

Used widely to control the electromagnetic starter, Contactor, relay and other automatic control electric circuits.
