Specifications:
Model: HG268
Measurement Angle: 20°/60°/85°
Measurement Area (mm): 20°: 10x10 60°: 9x15 85°: 5x36
Measurement Range: 20°: 0~1000GU 60°: 0~1000GU 85°: 0~160GU
Resolution: 0.1GU
Measurement Range: 0-10GU 10-100GU 100-1000GU
Repeatability: ±0.1GU ±0.2GU ±0.2%GU
Reproducibility: ±0.2GU ±0.5GU ±0.5%GU
Measurement Standard: Complies with JJG696 Class 1 gloss meter working requirements
Colorimetric Correspondence: CIE1931(2°) standard observer, CIE C light source
Error: ±1.5, ±1.5%
Measurement Time: 0.1s
Dimensions (L*W*H): 160mm*75mm*90mm
Weight: 350g
Language: Chinese/English
Battery: 3200mAh lithium-ion battery >10000 measurements (within 8 hours)
Display: 3.5-inch TFT
Interface: USB/RS-232
Storage Capacity: Basic mode: 1000 sets of data
Software: GQC6 quality control software, with QC report printing function and more extended functions.
Operating Temperature: 0~40℃ (32~104°F)
Storage Temperature: -20~50℃ (-4~122°F)

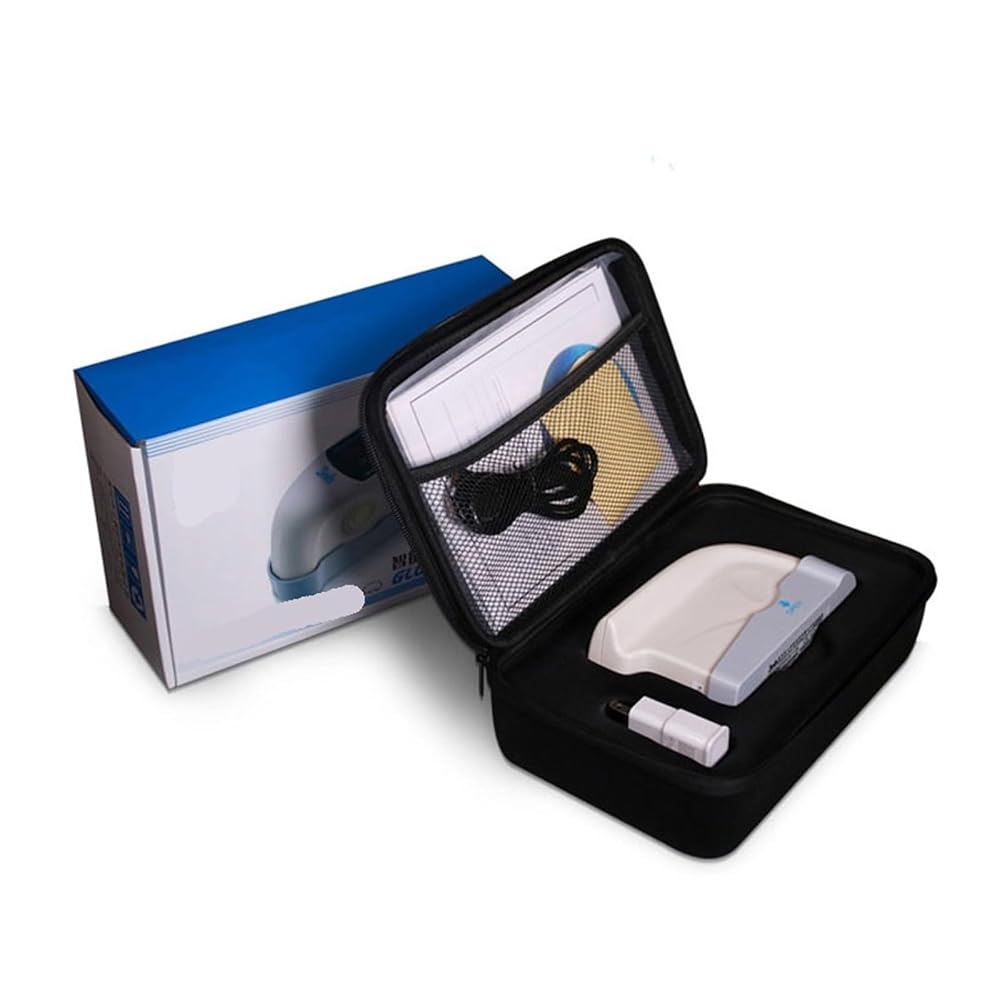

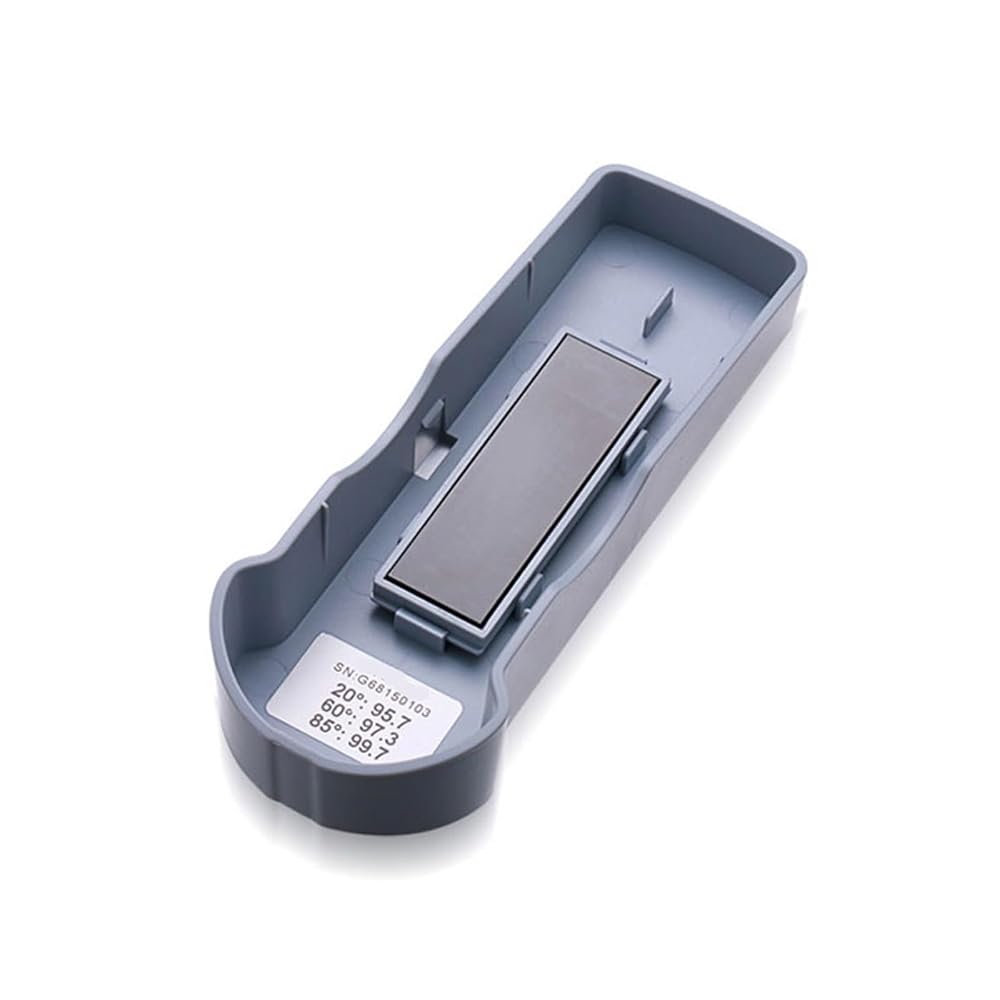

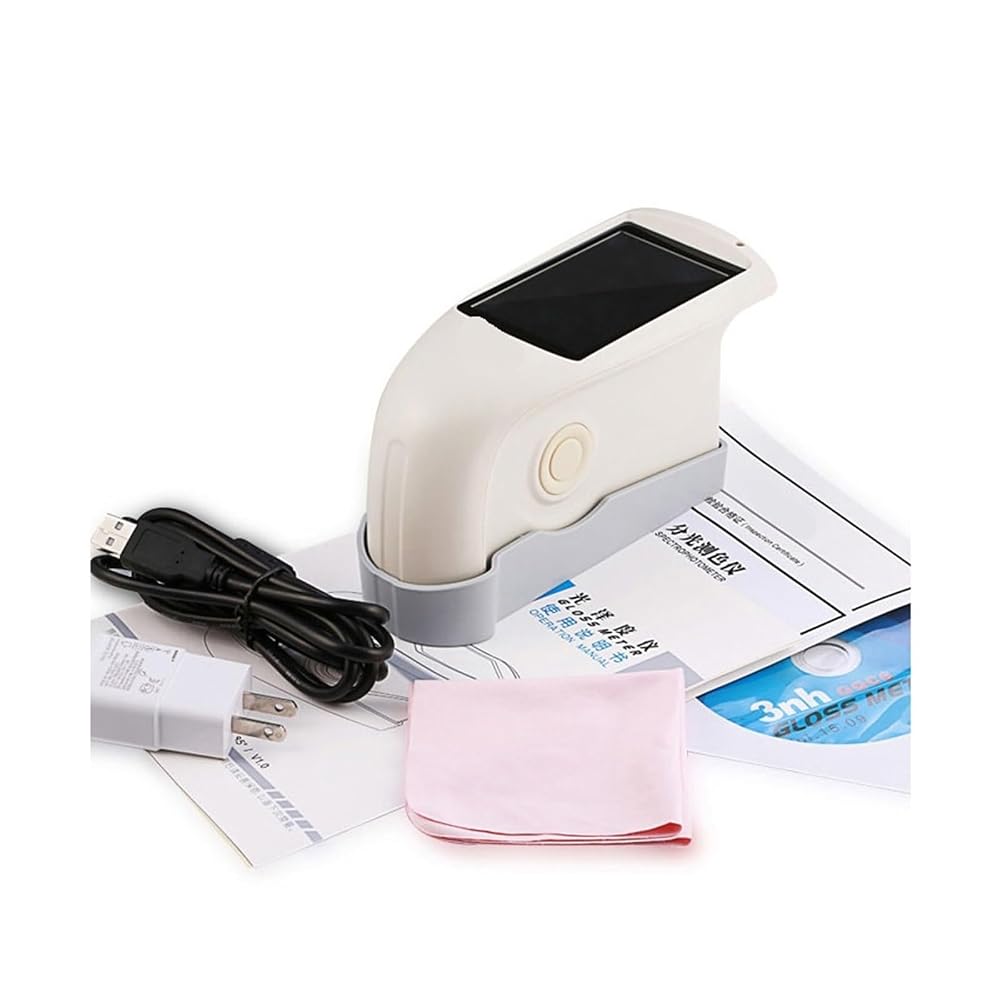

Standard Accessories: Power adapter, USB data cable, user manual, GQC6 software CD (except HG60S), calibration plate
