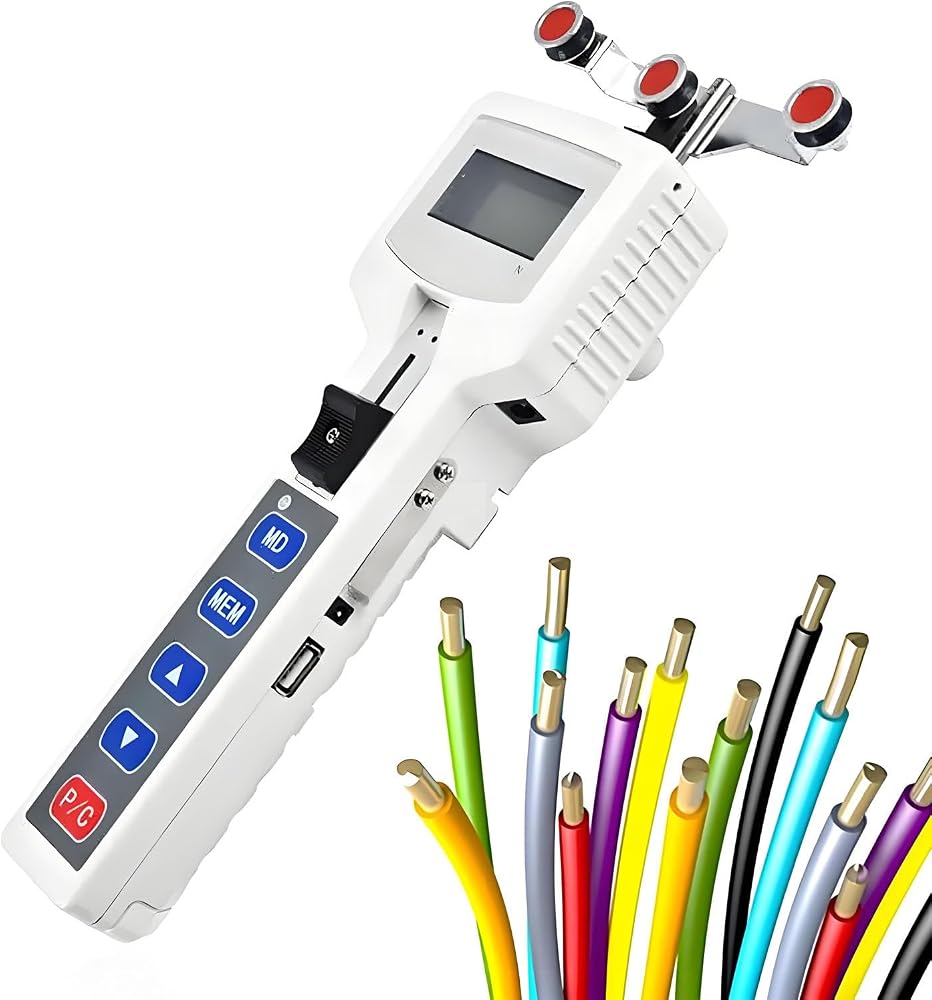

This handheld digital tension meter is designed specifically for materials subject to tensile stress—such as metal wires, cables, filaments, and fibers—and is suitable for the cable, textile, synthetic fiber, and metal wire processing industries. It provides reliable data across various production stages, facilitating effective quality control.

▶Features:
1. 3 working modes: Real-time, hold and peak working modes can be switched at will. With thickness adjustment function.
2. 6 units: cN, gf, 0Z, Kgf, N, lb can be set. Accuracy is 2.5% of full scale.
3. Convenient storage: Can store 41 sets of data. With USB communication function. Can accurately measure the tension of 10 different materials.
4. Multiple uses: Widely used in wire and cable, textile and chemicals fiber, metal wire, carbon fiber and other industries.

▶Specifications:
Product Name: Handheld Digital Cable Tension Meter
Model: 200CN , 500CN , 1000CN , 2000CN , 2500CN , 5000CN , 10000CN
Measuring Head Width: 65mm (for models 200CN-2000CN), 116mm (for models 2500CN-10000CN)
Calibration Material: Textile PA monofilament available in diameter 0.12mm, 0.12-0.2mm, 0.2-0.4mm, 0.4-0.7mm, 0.6-1.2mm, 0.8-1.4mm
Product Size: 270×118×55mm
Net Weight: 640g
Gross Weight: 2.1kg

▶International Tension Units:
1 cN = 1.02g = 0.01N;
100N = 10.2kg = 10000cN

▶Packing List:
1 × Digital Tension Meter
1 × USB Data Cable
1 × Charger
1 × Instruction Manual

▶Notice
1.Manual measurements may result in a slight 1–2 cm variation.
2.Minor color differences may occur due to lighting and display ; please refer to the actual product received.
3.If you have any questions, feel spare to reach out. Our team is committed to helping you and will reply within 24 hours.
