radius gauge measuring tool with plate fillet gauge for accurate thread pitch and tooth angle checking in mechanical parts (R7.5-15)

KWD 3
SizeR7.5-15
– 1 +

Special Features

  • 【Measuring pitch】: The Radius template R gauge is designed to accurately measure the pitch of tooth-shaped steel threads in workpieces. By clamping the template tightly, the thread size can be determined once the threads are closely connected.
  • 【Measure the tooth angle】: With the thread pitch and the thread model of the workpiece being tested, the Radius gauge allows for easy checking of the tooth angle. A clear and even contact indicates correct thread angle, while uneven light transmission suggests inaccuracies in the measured thread profile.
  • 【 measurements】: Made of carbon steel, this measuring tool ensures durability and accuracy in measurements. The color shown in the picture may vary, and the actual product size shall prevail.
  • 【Wide measuring range】: The Radius gauge provides a comprehensive measuring range. R5-15 includes measurements such as 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, and 15. R15.5-25 includes measurements such as 15.5, 16, 16.5, 17, 17.5, 18, 18.5, 19, 19.5, 20, 21, 22, 24, and 25.

Description

Feature:
1. Measuring pitch
a. The tooth shaped steel threads that are clamped in the measured workpiece as templates. If they are not closely connected, the other is until they are closely connected.
b. Then, the mark on the thread size model is the measured workpiece pitch.

2. Measure the tooth angle
a. Put the thread pitch and the thread model of the workpiece to be tested on the top of the same thread for testing, and then check the contact condition. If there is no translucent clearance, whether the tooth angle of the thread to be tested is correct; If there is uneven light transmission gap, it indicates that the measured thread profile is inaccurate.

Specification:
Part Name: Measuring tool
Material: carbon steel
Color: As shown in the picture
Size: The actual product shall prevail
Measuring range:

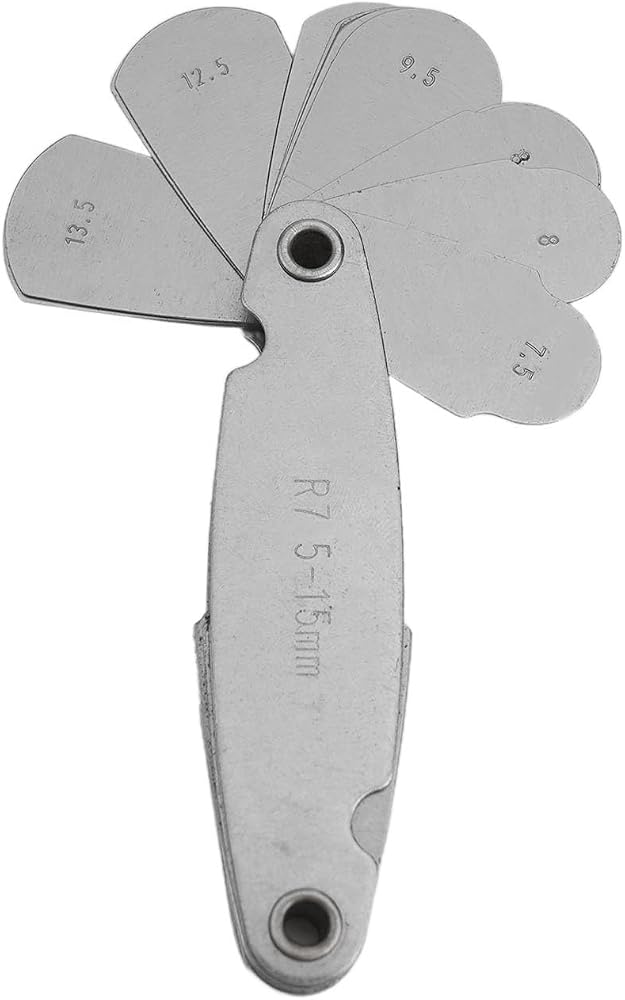

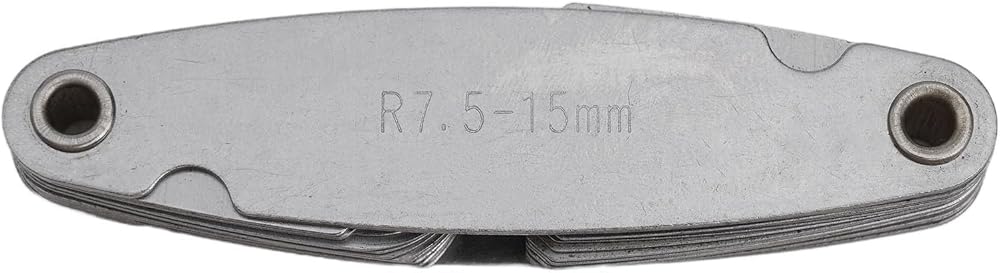

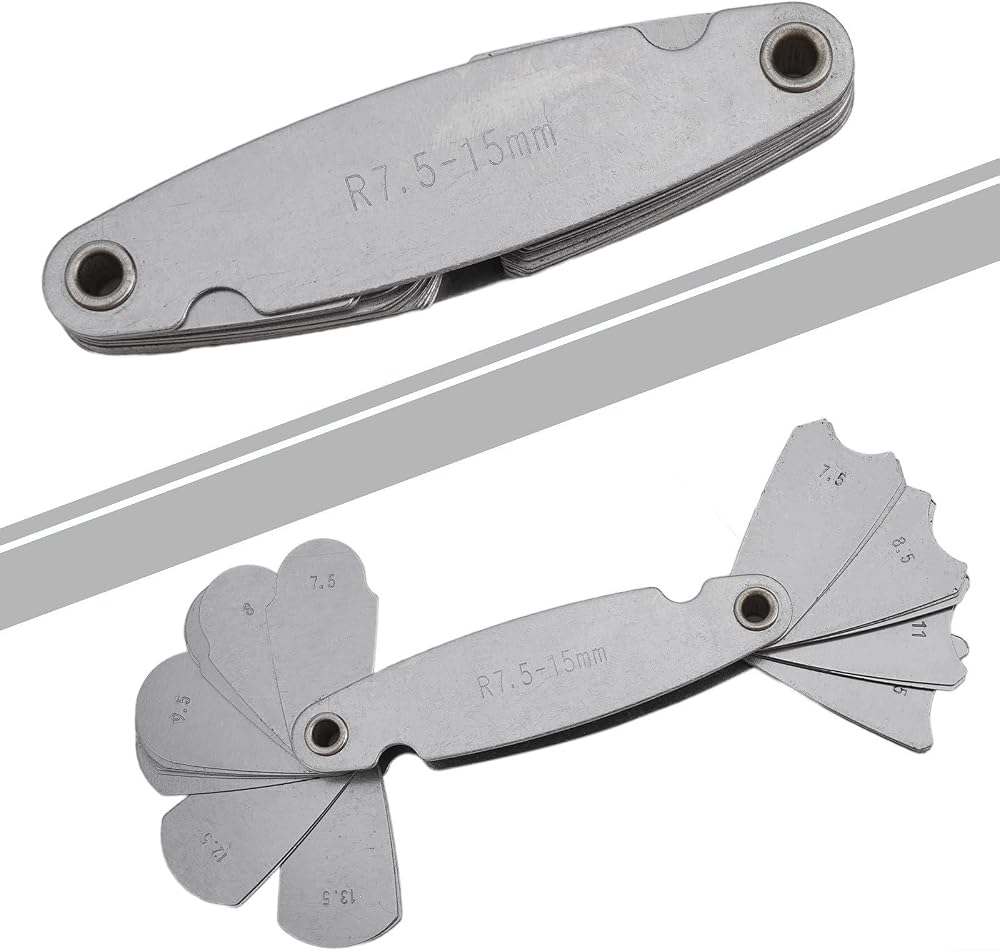

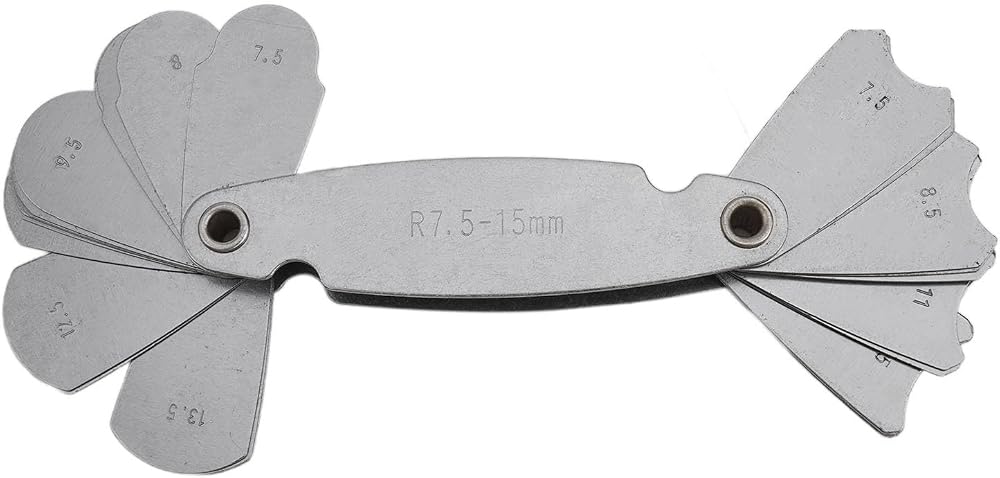

R7.5-15 includes: (7.5 8 8.5 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 14 14.5 15)

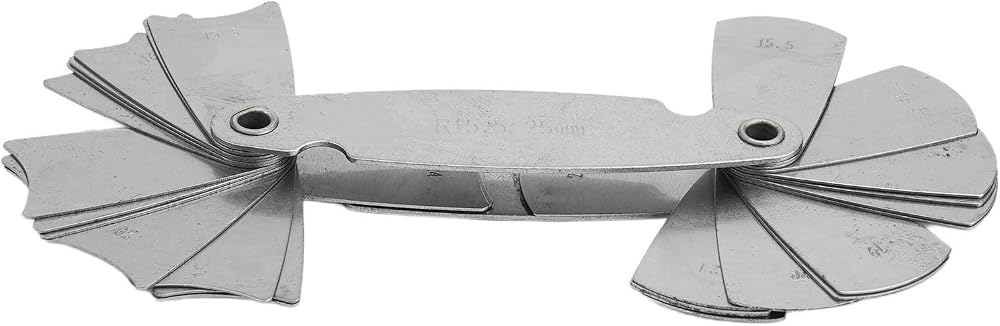

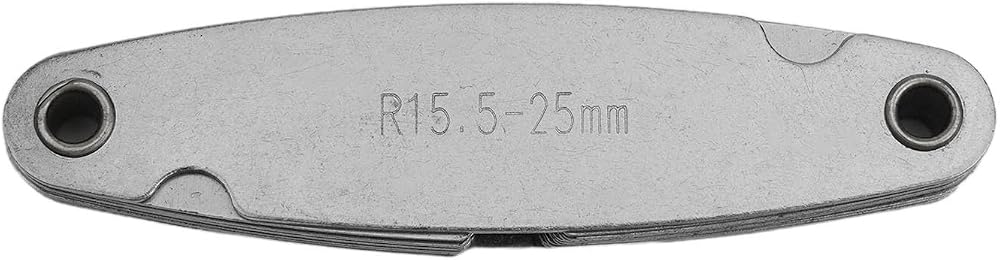

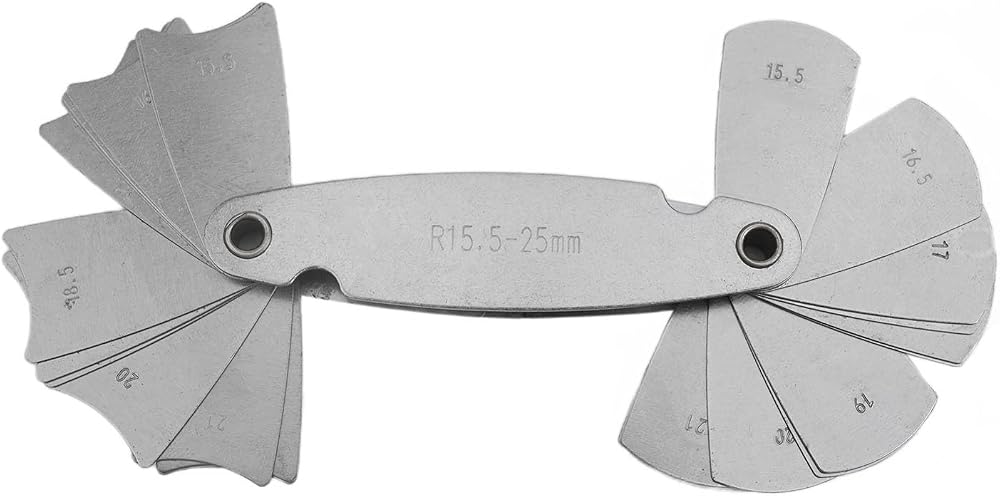

R15.5-25 includes: (15.5 16 16.5 17 17.5 18 18.5 19 19.5 20 21 22 24 25)

Package Contents:
1*Measuring tool
